Products

802.11a/n standards to insure interoperability enclosure CPE antenna

SMA
320X200X100 (mm) Wireless LAN Switch Performance and Capacity WLAN controller
Wireless LAN Security and Control Features Wireless IP Access Point Router
  • brand:

    whwireless
  • item no.:

    WH-2.4ghz-CS6

Frequency;2400-2483MHz
Bandwidth;83MHz
VSWR;≤1.8
Gain;16dBi
Polarization Type;Vertical
Beam width H;25°
E;30°
Fb Ratio;≥25-dB
Rated Power;100w
Input Impedance;50Ω

Connector Type;SMA or customized

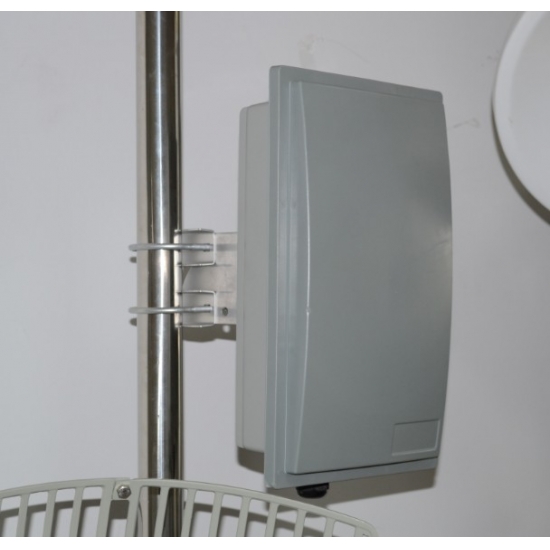

Mounting Kits;L bracket and U bolts
Mounting Mast Diameter;Ф40-50mm
Antenna Diameter;320X200X100 (mm)
Weight;2Kg

• Mesh networking applications
• 2.4 GHz wireless applications
• Point to multi-point systems
• Base station antennas
• WiFi access points
• WiMax base stations
• IEEE 802.11b/g WLAN Systems
• 2.4 WLAN,WiFi system
• Point to multi-point communication system
• Wireless Bridge
