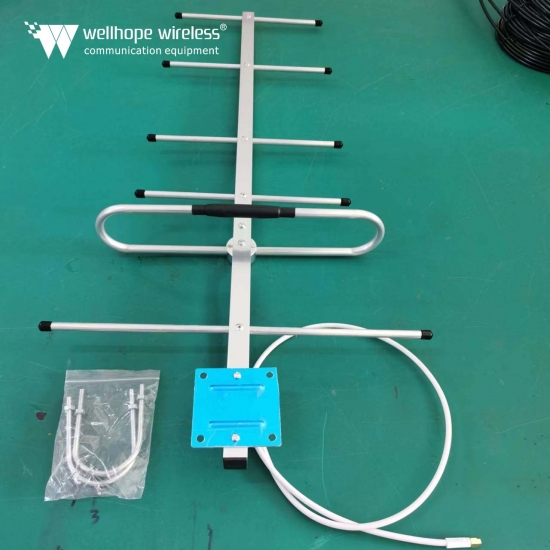

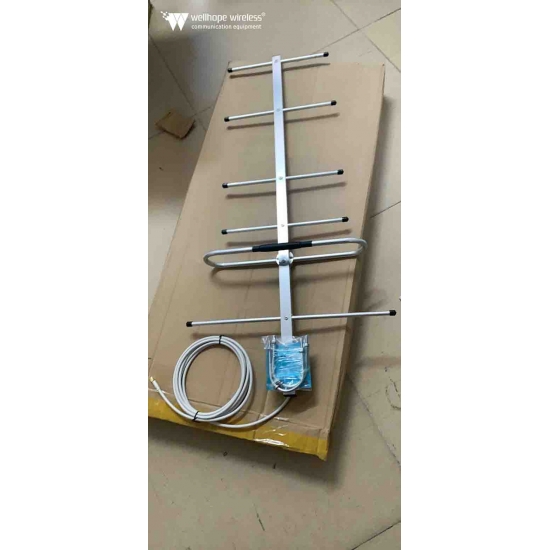

WH-433-YD12 433MHz 12dBi yagi antenna

LoRa antenna LoRa yagi antenna

12dbi yagi antenna SMA male 6element

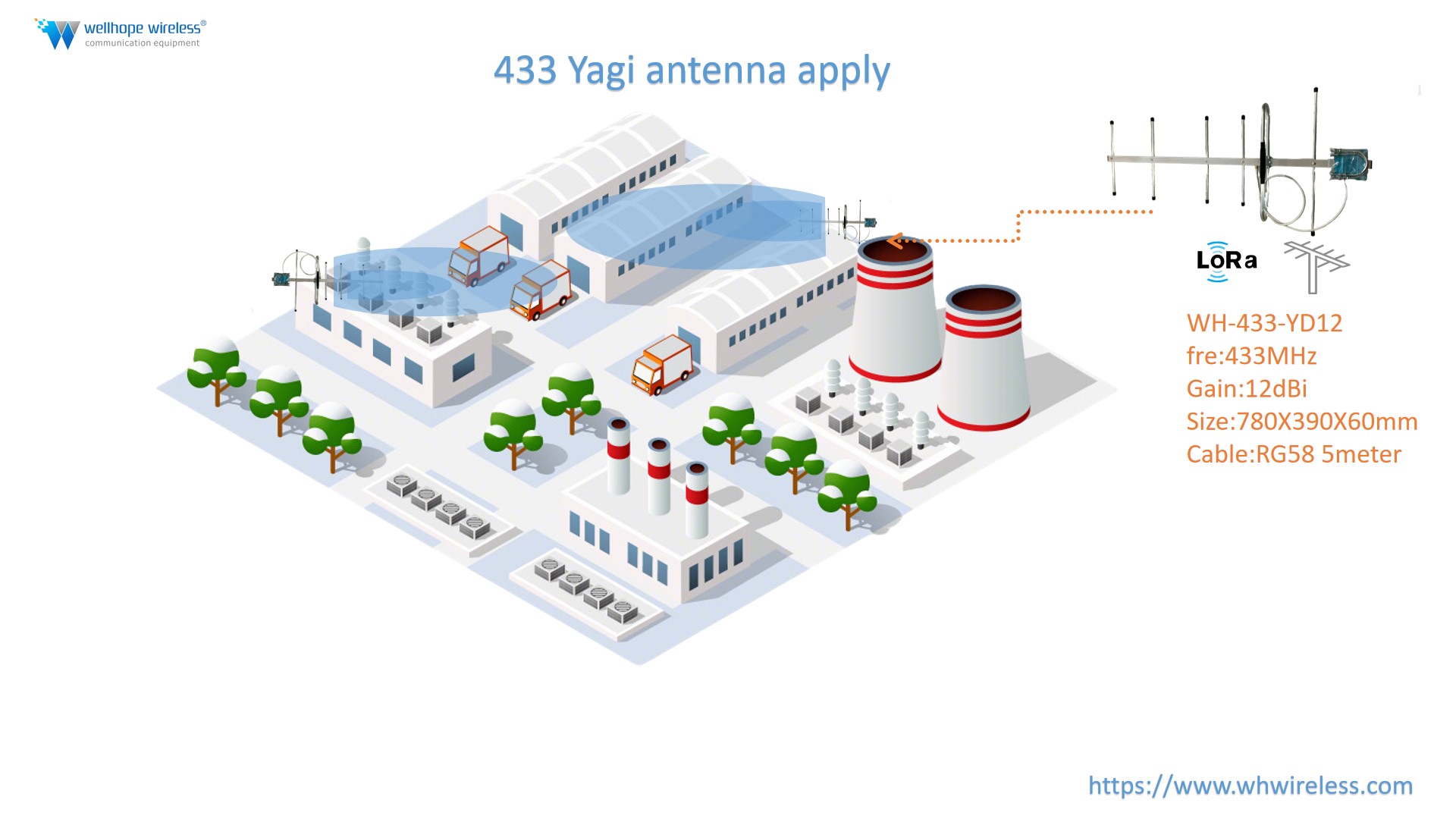

433MHz LoRA, IoT, M2M applications

The whwireless WH-433-YD12 High-Performance Yagi Antenna come with high gain with a wide 42° beam-width. It is ideally suited for directional applications in the 433GHz ISM and LPWAN bands as well as IoT and Point to Multi-Point communication. Typical applications include Wireless LAN, SCADA,433MHz, LoRA, IoT, M2M, .

brand:
whwireless
item no.:
WH-433-YD12
payment:
T/T
product origin:
china
color:
gray
lead time：
5working day

Inquiry now

Frequency Range:433MHz
Bandwidth:10MHz
Gain:12dBi
Beam width:H: 55 E: 45
F/B ratio:≥16dB

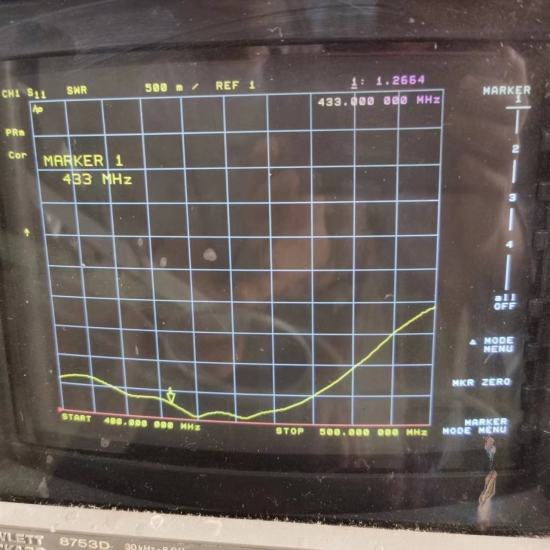

VSWR:≤1.5
Polarization:Vertical or Horizontal
Max power:100 -W
Nominal Impedance:50-Ω

Elements:6
Rated Wind Velocity:60m/s
Weight:1kg
dimension:780X390X60MM
Cables:RG58 cable；100 cm length

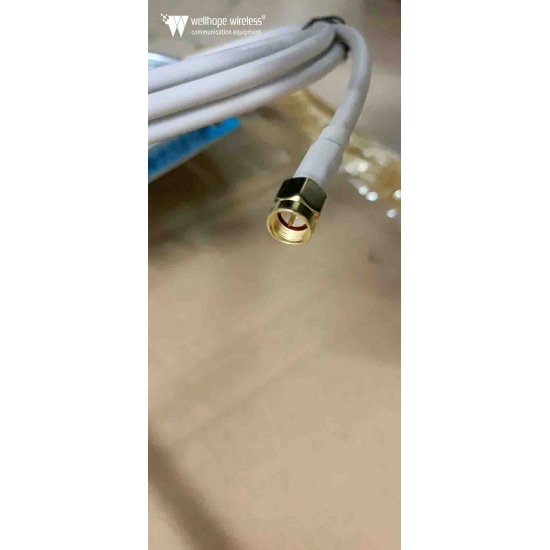

Connector:SMA male Connector or Customized
