433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof


433MHz Fiberglass L shape bracket Gateway antenna
433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof 433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof

433MHz Fiberglass L shape bracket Gateway antenna IP67 waterproof

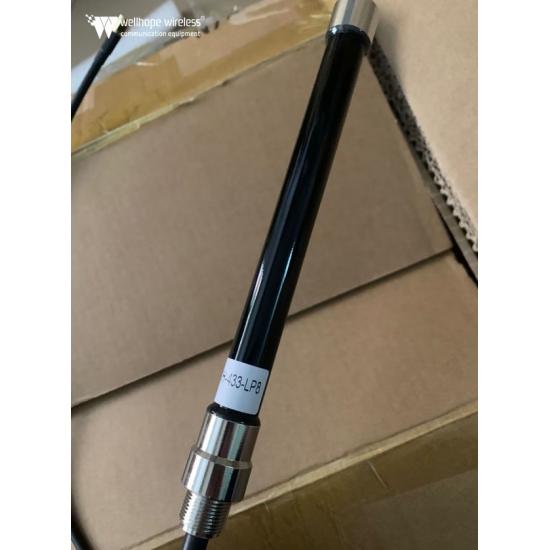

WH-433-LP8

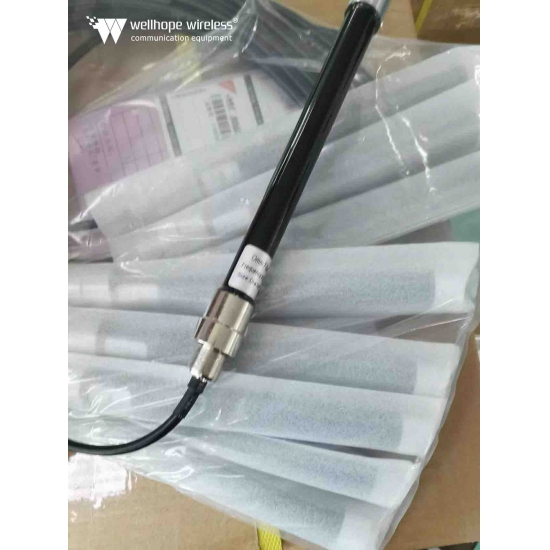

The WH-433-LP8 is a rugged fiberglass antenna optimized for 433MHz IoT and RFID systems

. Its precision-tuned 3dBi design offers strong long-range connectivity, making it ideal for LoRa and industrial IoT networks

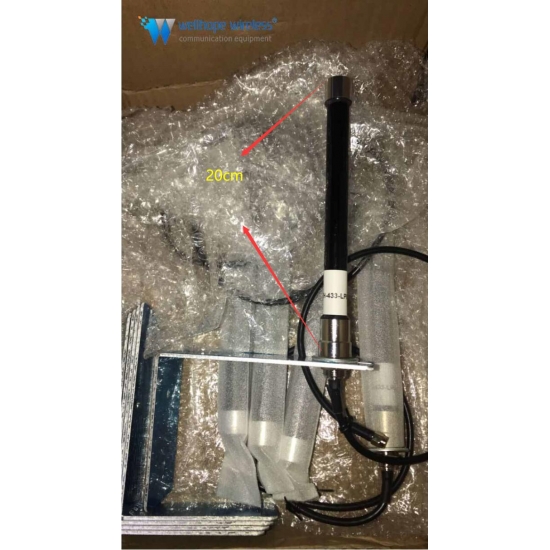

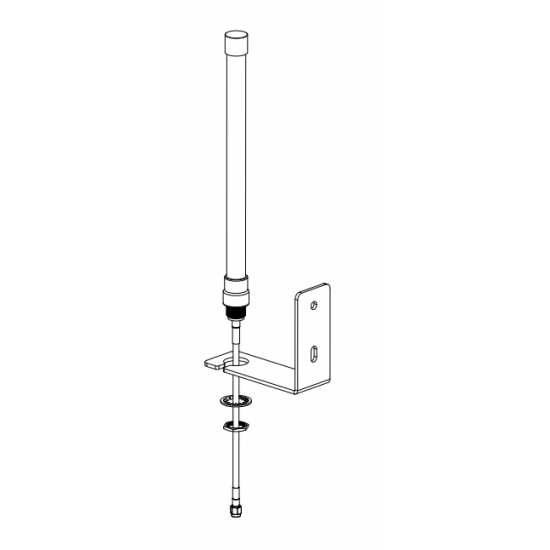

. This L-shaped bracket antenna includes a 5m RG58 cable with an SMA male connector for easy installation

. The weatherproof IP67-rated housing withstands harsh outdoor conditions like rain and dust

Precision tuning provides superior coverage for outdoor monitoring and IoT systems

. Its compact form factor and durable build enable easy mounting and stable communication. Common industrial uses include smart factory automation, renewable energy monitoring, and remote sensor networks.

433MHz, 3dBi gain: Ensures robust signal reach in LoRa, RFID, and industrial networks

IP67 waterproof design: Durable fiberglass build protects against weather

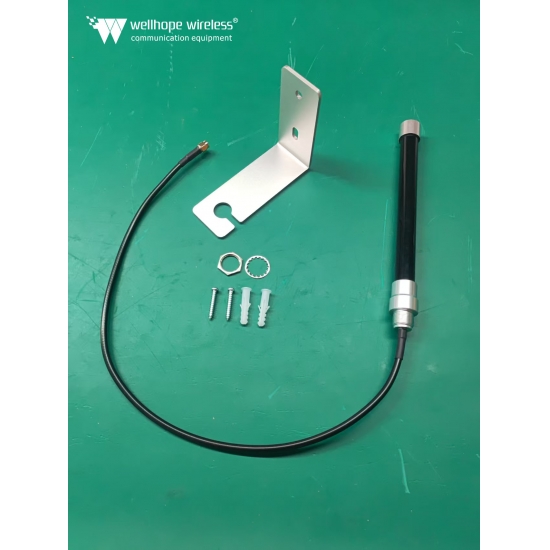

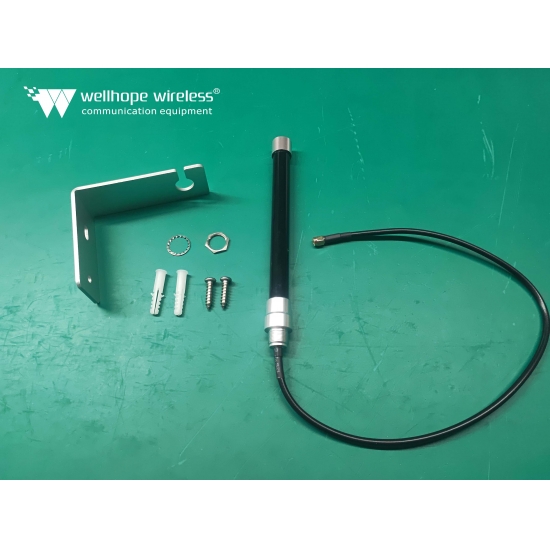

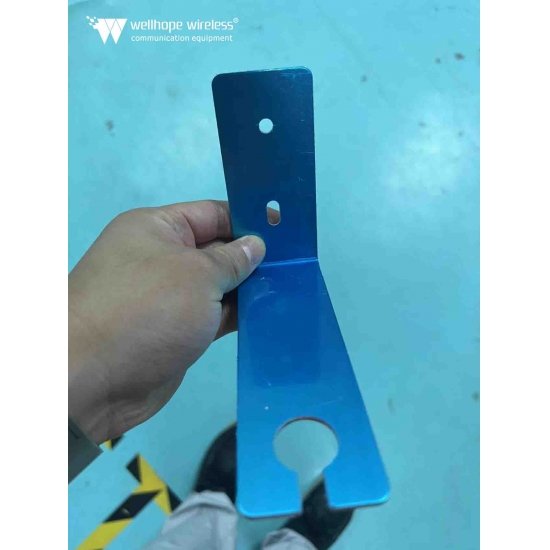

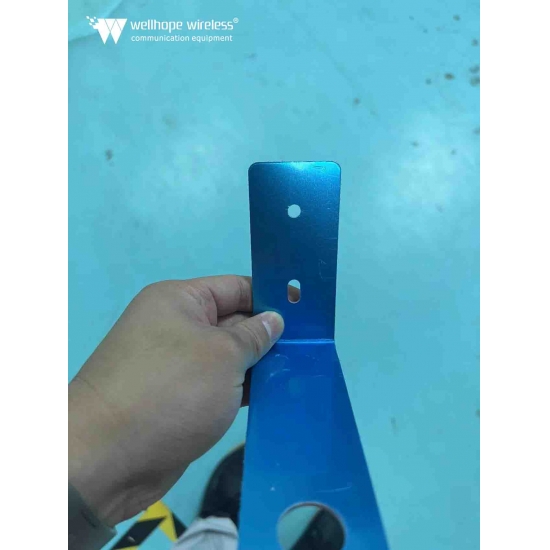

L-shape bracket & cable: Includes mounting bracket, 5m RG58 cable, and SMA male connector for plug-and-play installation

Applications: Smart factory automation, renewable energy monitoring, and remote sensor networks.


  • brand:

    whwireless

  • item no.:

    WH-433-LP8

  • payment:

    T/T,Alipay,WeChat Pay,Paypal

  • product origin:

    china

  • color:

    black

  • lead time：

    5working day
Inquiry now WhatsApp

Frequency  Range:433MHz

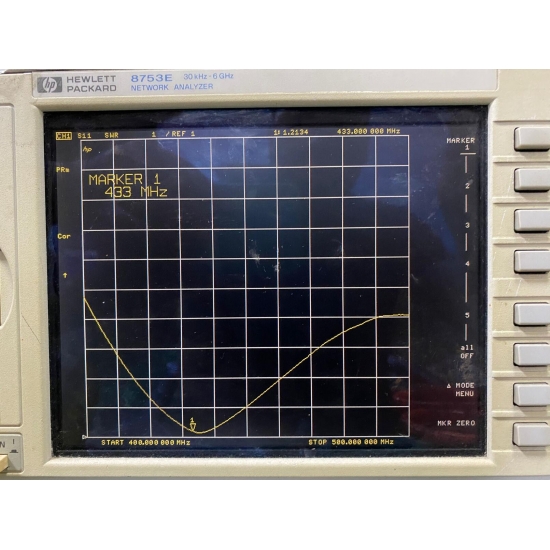

VSWR:≤2

Gain:3dBi

Polarization Type:Vertical

Rated  Power:50w

Input  Impedance:50Ω

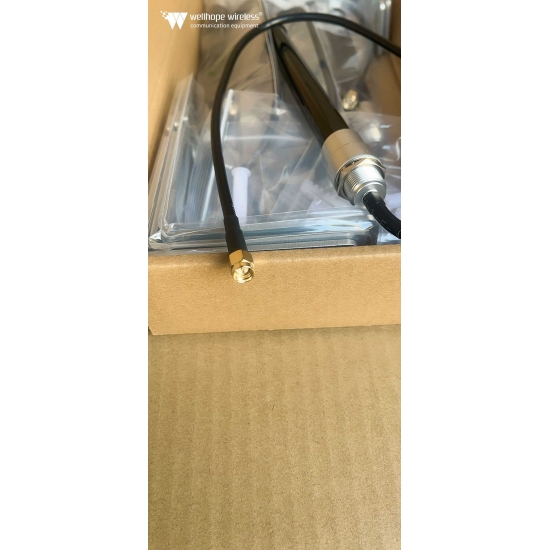

Connector Type:SMA male

Cable:RG58;5meter

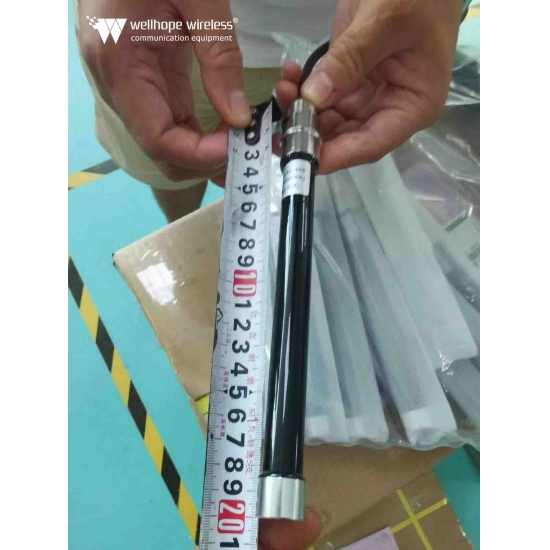

Dimensions:Φ16×300mm

Work Temperature:-40—+70-℃

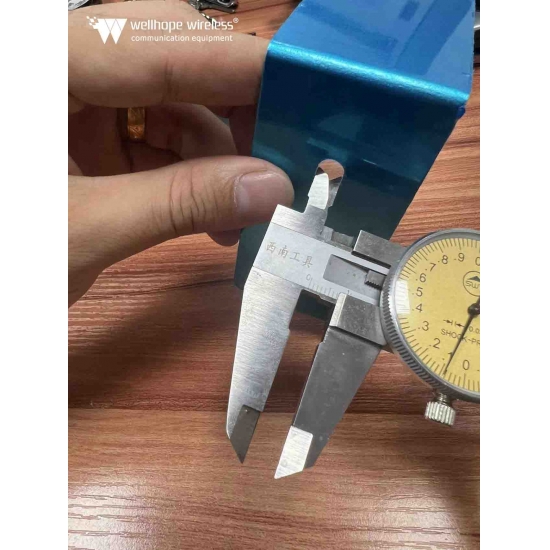

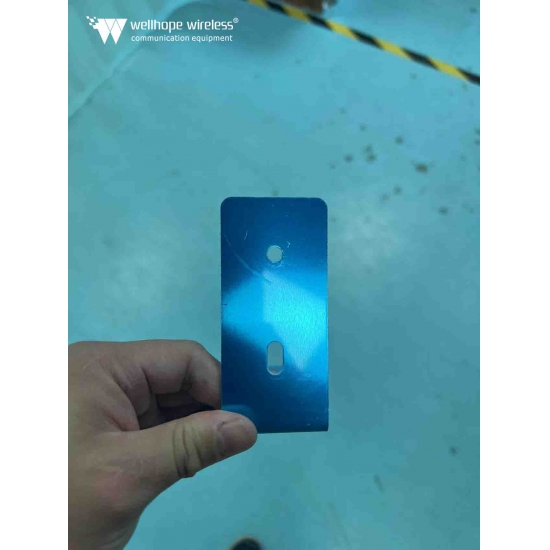

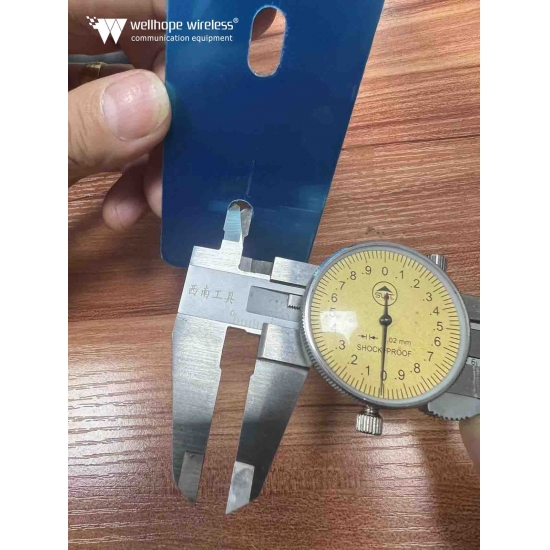

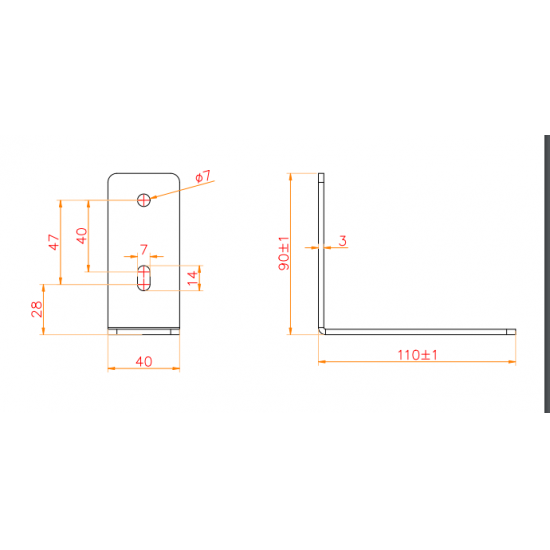

Mounting kits: L shape bracket included


WH-433-LP8
