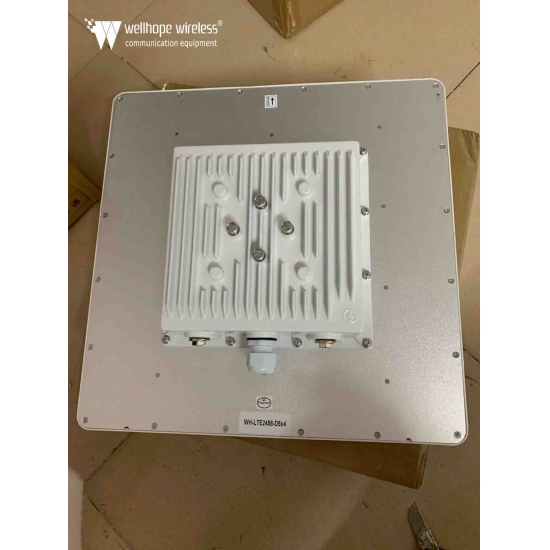

5G 4G and wlan enclosure CPE antenna, wlan iot antenna

SMA maleX4

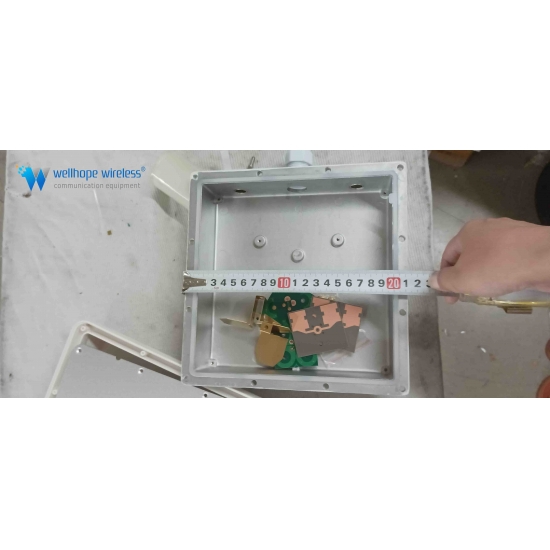

enclosure190X190X40mm

wlan CPE antenna;apply to Wireless Controller ;Wireless Mesh AP Wireless;5dBiX4

  • brand:

    whwireless
  • item no.:

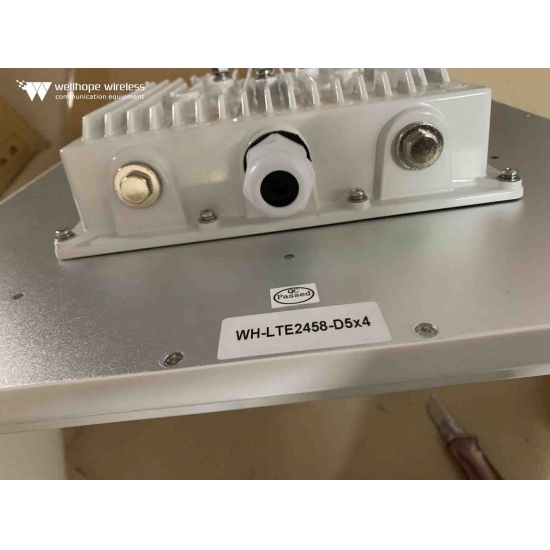

    WH-LTE2458-D5X4
  • payment:

    T/T,Alipay,WeChat Pay,Paypal
  • product origin:

    china
  • color:

    white
  • lead time:

    8working day

Frequency Range:5G:617/960/1710/2700/3800MHz

                           WiFi:2400-2500/5150-5250MHz/5250-5350MHz/5470-5725 MHz/5125--5825 MHz

Gain:5/5/5/5/dBi

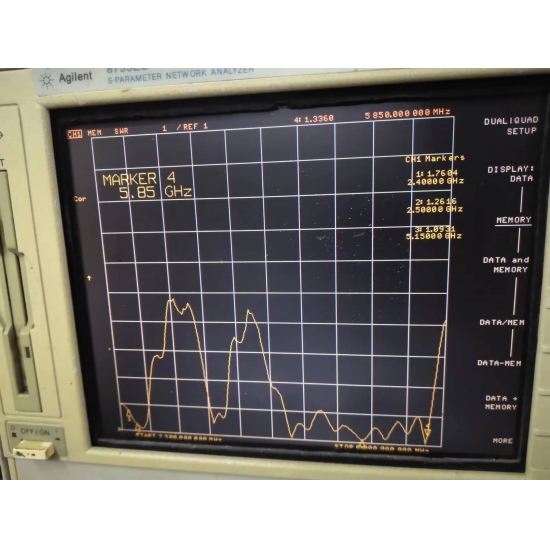

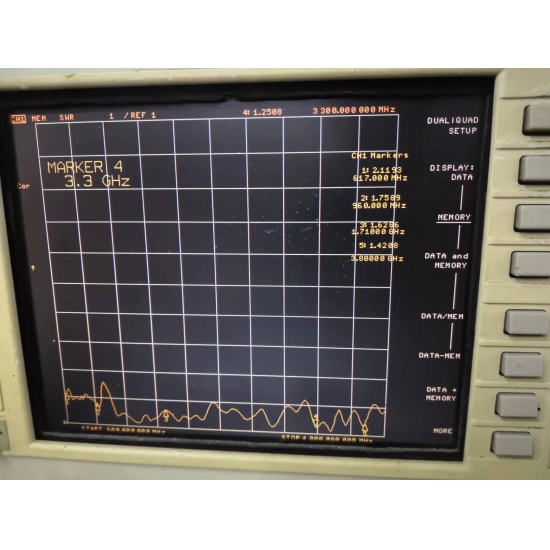

VSWR:5G≤2.0

           2.4GHz:≤2.0 ,5.8GHz:≤2.0

Isolation:≥25DB

Input Impedance:50Ω

Polarization:Vertical

Horizontal Beam width:5G LTE:10°

                                      2.4GHz:20°,5.8GHz:8°

Vertical Beam width:5G LTE:16°

                                  2.4GHz:20°,5.8GHz:8°

Front To Back Ratio:5G LTE≥ 20dB

                                2.4GHz:≥ 22dB ,5.8GHz:≥ 25dB

Max Input Power:100W

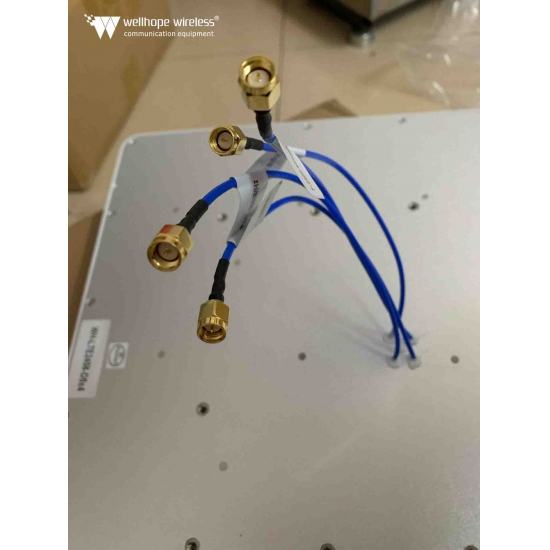

Connector Type:4XSMAmale or customized

Working Temperature:-40℃~﹢60℃

Antenna Weight:3500g

Antenna  Size:380x380x40mm

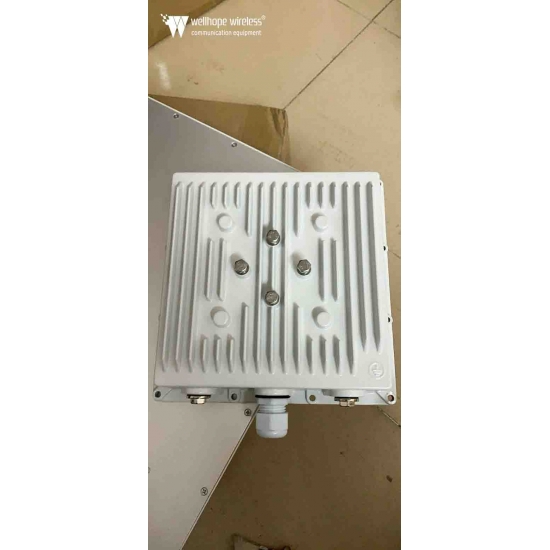

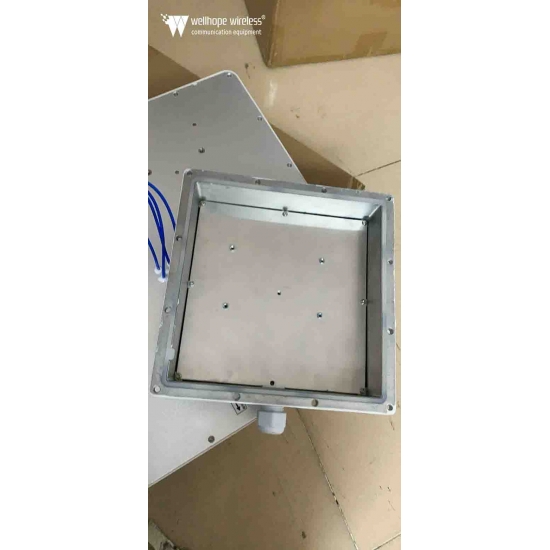

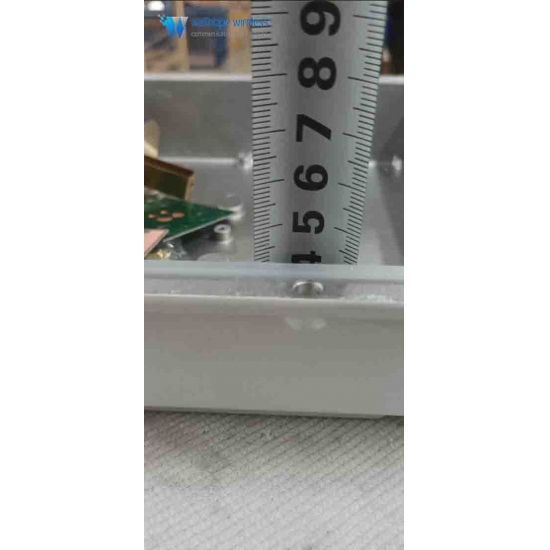

enclosure Size:225x225x42.3mm

Packing Size:400x400x140mm

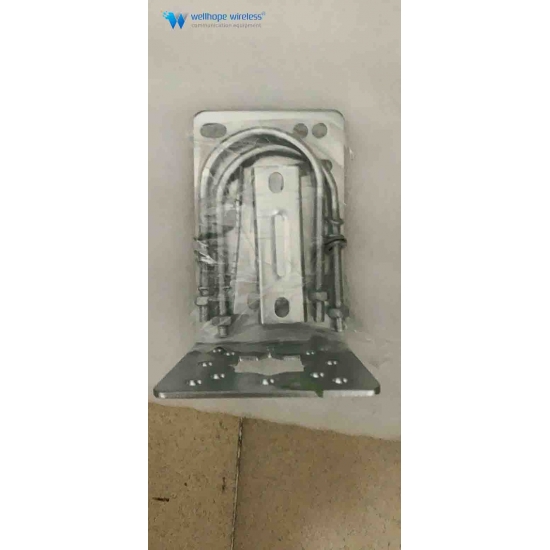

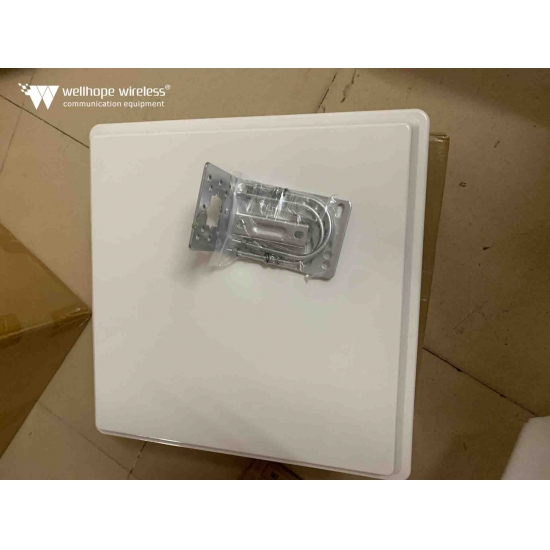

Mounting method:PoleΦ40~50mm/outdoor

Waterproof :IP65

Rated Wind Velocity:160km/h

Antenna Cover Material:ABS

colour:white



Waterproof IP65

MOQ:2PCS

SPQ:100PCS/box

Ddelivery time:5working day

Payment term:T/T

Package:plastic bag and box

Paymeter method:Paypal;Wire Transfer

Customized according client require detail

Shiping way:DHL Fedex UPS
