Products

900-930MHz omni fiberglass 8dBi antenna

WH-928-0F8


The WHWIRELESS omni fiberglass antenna WH-928-0F8 900–930MHz is designed to deliver stable and wide-area wireless signal coverage in complex seaport environments. With 8dBi high gain and a 360° omnidirectional radiation pattern, it ensures reliable communication across docks, container yards, cargo terminals, and offshore platforms.

Operating in the 900–930MHz band, the WH-928-0F8 provides strong penetration through metal containers, cranes, and industrial structures, making it ideal for IoT gateways, RFID systems, LoRa networks, and port automation applications. Its long-range performance supports real-time tracking of ships, containers, and logistics equipment, improving operational efficiency and safety management in seaports.

Built with a rugged fiberglass radome and weatherproof construction, this antenna withstands salt spray, high humidity, and strong winds common in marine environments. The slim design (Φ20×1070mm) allows easy installation on masts, towers, and port infrastructure.

The WH-928-0F8 omni antenna is an excellent solution for seaport wireless coverage, smart harbor systems, maritime IoT communication, and coastal monitoring networks requiring dependable long-distance performance.


  • brand:

    whwireless
  • item no.:

    WH-928-0F8
  • payment:

    T/T,Alipay,WeChat Pay,Paypal
  • product origin:

    china
  • color:

    white
  • lead time:

    7working day

Frequency Range:900-930MHz

Input Impedance:50Ω

Horizontal Beamwidth:360°

Vertical Beamwidth: 18°

V.S.W.R:≤2

Efficiency:≈93%

Gain:8dBi

Max Input Power:50 W

Polarization Type:Vertical

Connector Type:N female

Lightning Protection:DC Ground


Working Temperature:-45℃~﹢85℃

Storage Temperature:-45℃~﹢85℃

Radome material:Fiberglass(white)

Weight:0.37kg

Pole Diameter:Φ35~φ55

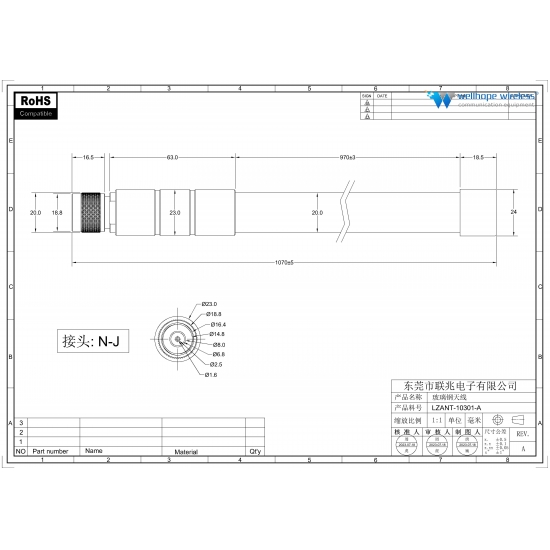

Size:Φ20x1070-mm

Rated Wind Velocity:36.9m/s

WH-928-0F8
