panel antenna 12dBi

WH-GSM-SD12

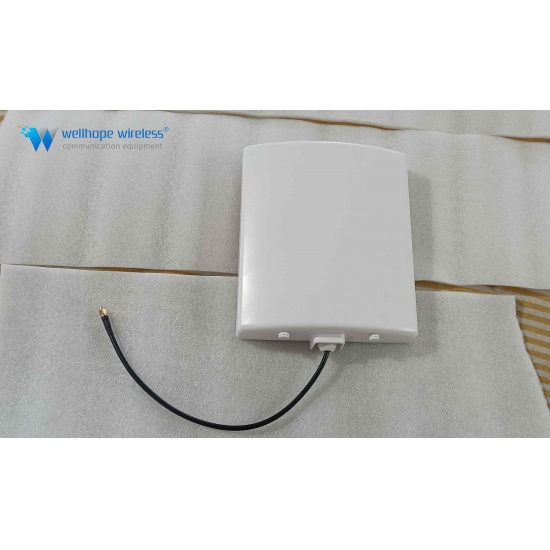

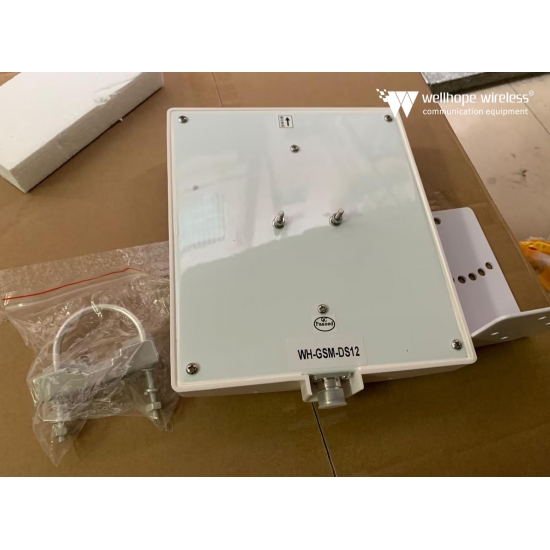

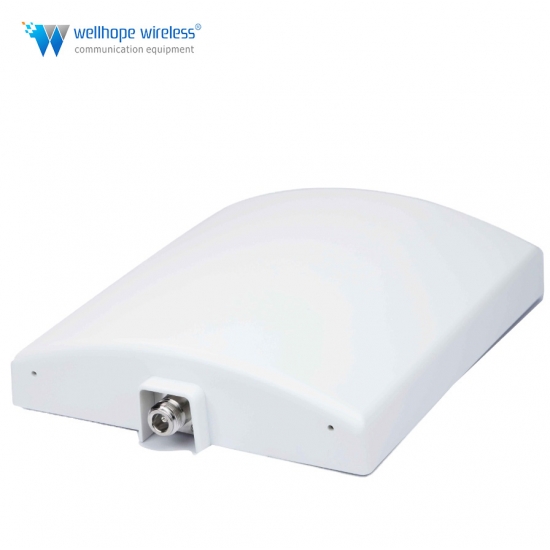

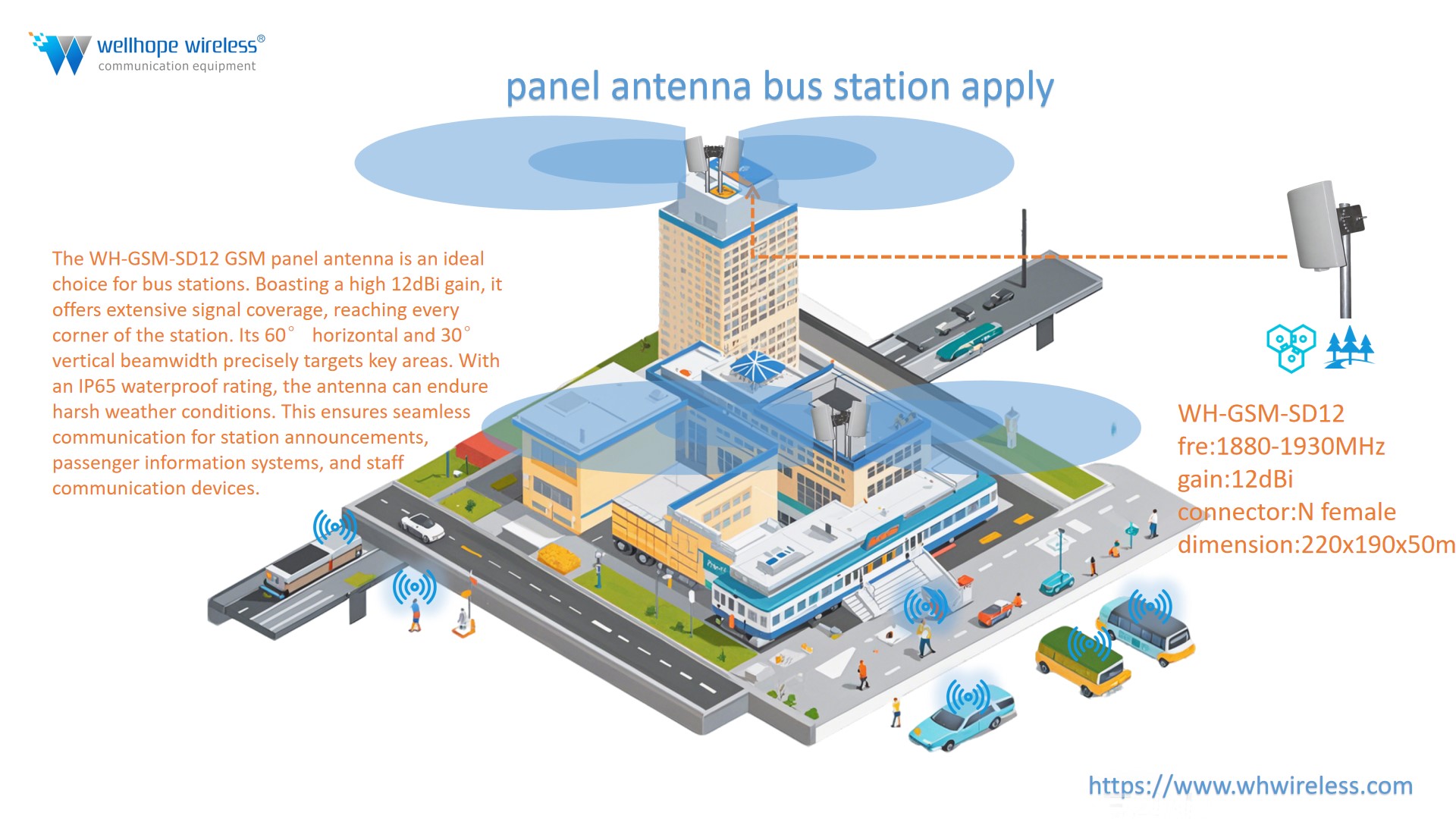

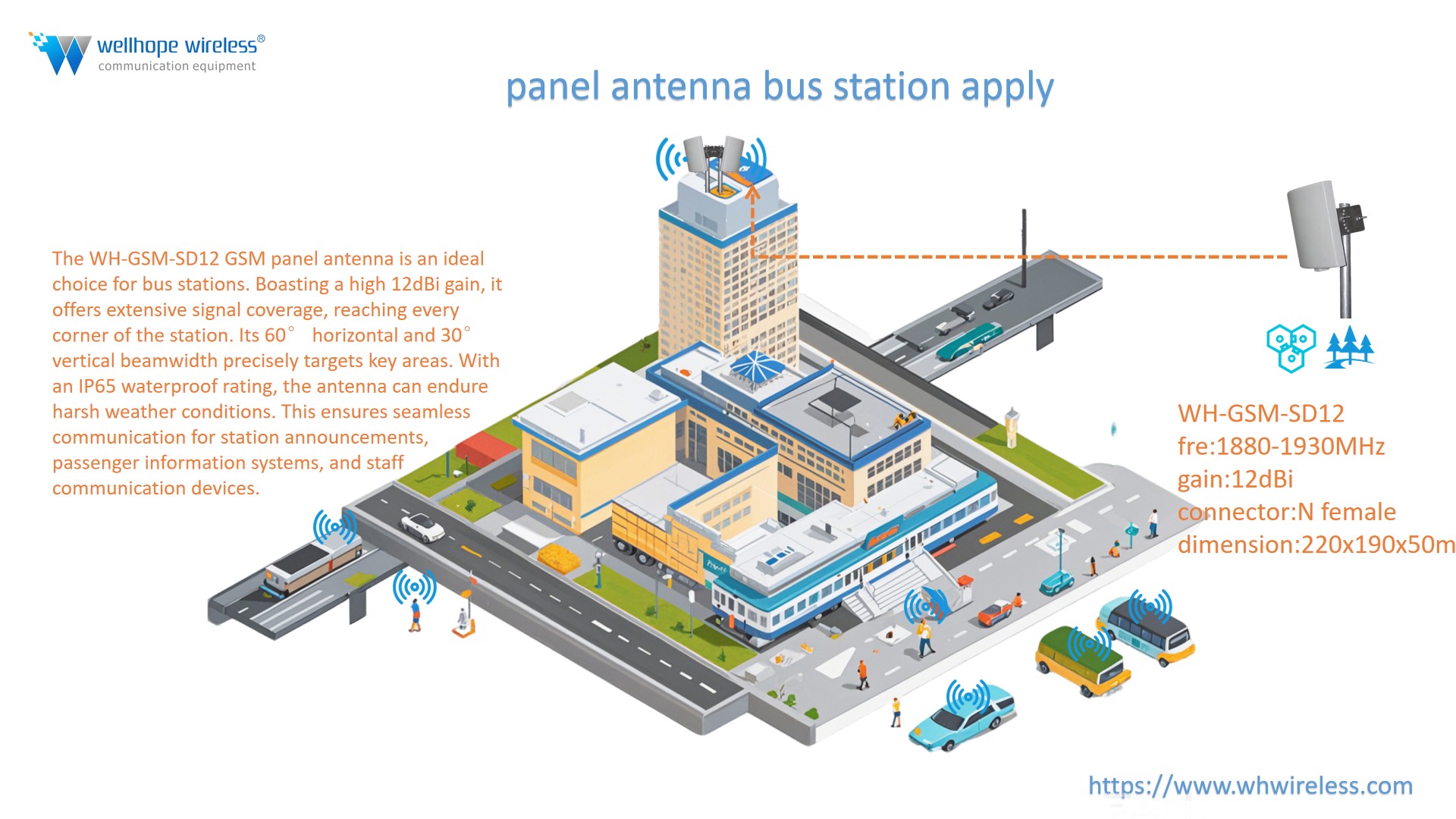

The WH-GSM-SD12 GSM panel antenna is an ideal choice for bus stations. Boasting a high 12dBi gain, it offers extensive signal coverage, reaching every corner of the station. Its 60° horizontal and 30° vertical beamwidth precisely targets key areas. With an IP65 waterproof rating, the antenna can endure harsh weather conditions. This ensures seamless communication for station announcements, passenger information systems, and staff communication devices.

  • brand:

    whwireless
  • item no.:

    WH-GSM-SD12
  • payment:

    T/T,Alipay,WeChat Pay,Paypal
  • product origin:

    china
  • color:

    white
  • lead time:

    3 working day

Frequency Range-MHz:1880-1930MHz

Gain-dBi:12

Horizontal Beamwidth-°:60º

Vertical Beamwidth-°:30º

F/B Ratio-dB:>15

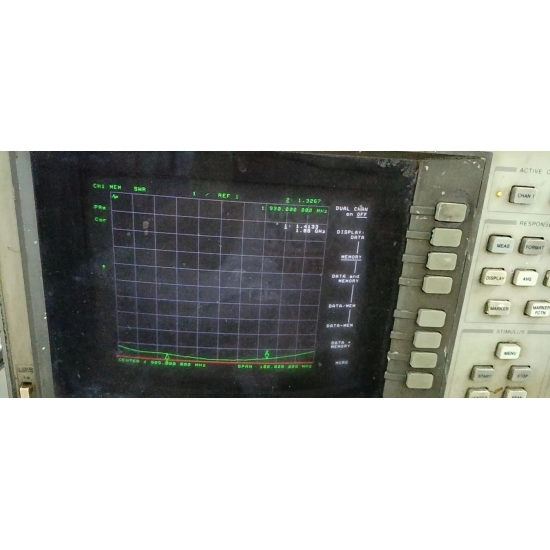

VSWR:≤1.5

Polarization:Vertical

Nominal Impedance-Ω:50

Maximum Power-W:100

Dimcnsions-mm:220x190x50

Weight-kg:0.4

Ratcd Wind Velocity-m/s:60

Cable type:Free

Cable length:Customized

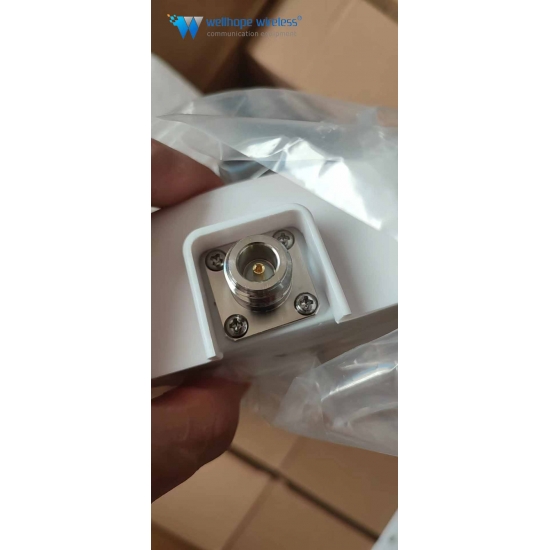

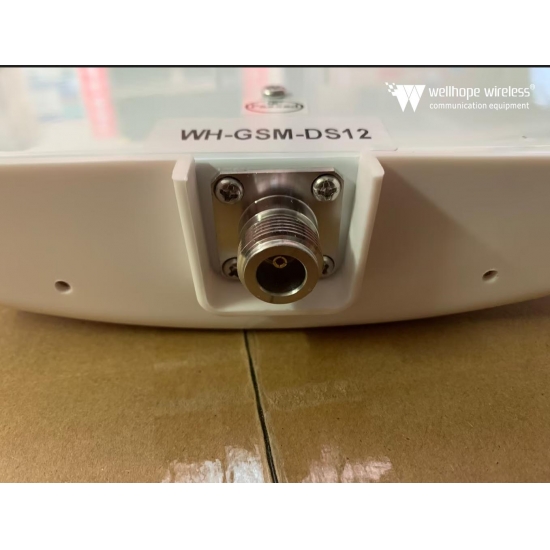

Connector:N female

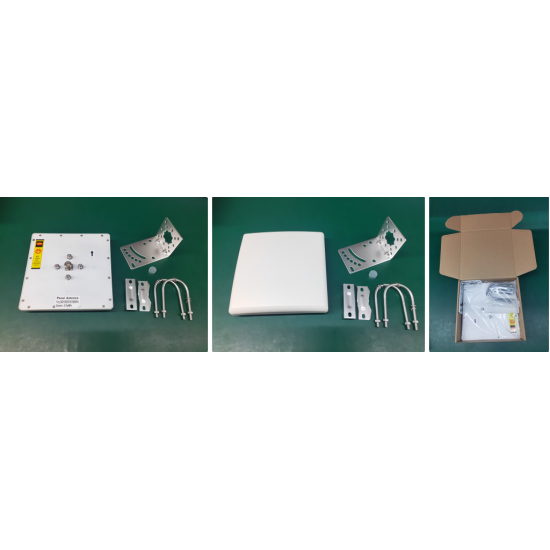

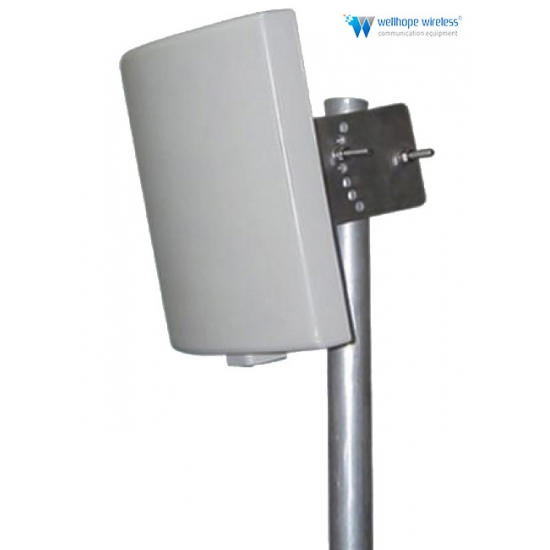

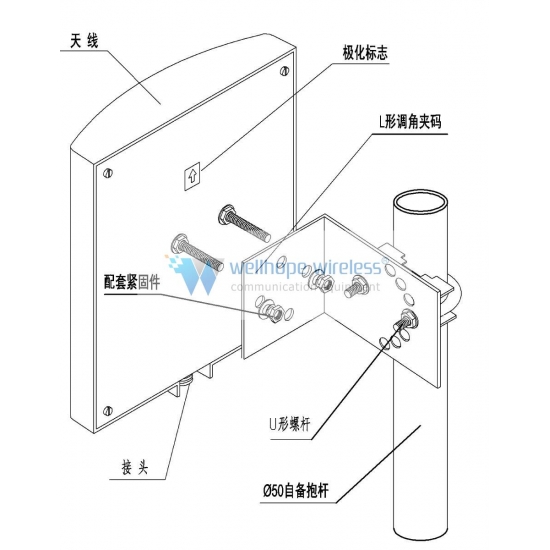

Mounting Mast Diameter-mm:Φ35~50

WH-GSM-SD12
