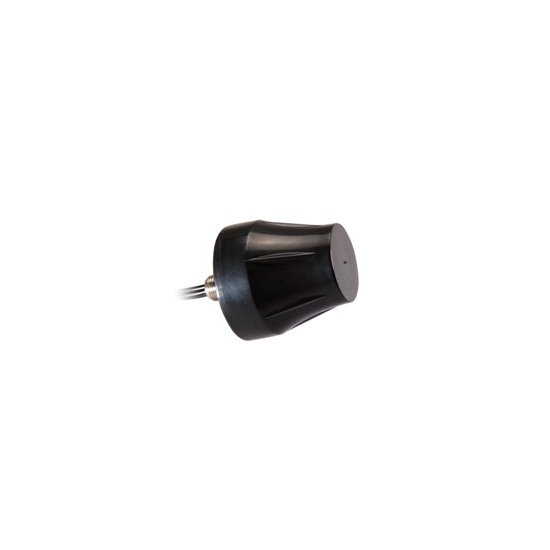

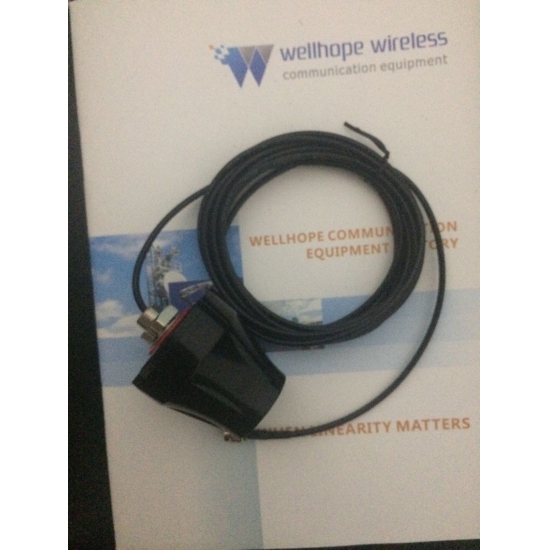

900MHz 1900MHz outdoor omni antenna

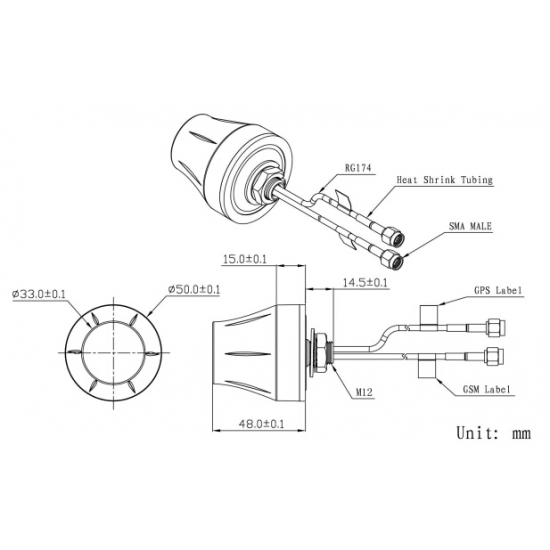

D50x48MM GSM dual band antenna;screw mounting

waterproof antenna waterproof GSM antenna

brand:
whwireless
item no.:
WH-CELL-02
payment:
T/T
product origin:
china
color:
black
lead time：
7working day

Inquiry now WhatsApp

Frequency;824~960MHz/1710~1710MHz
V.S.W.R（5m）;≤2.0︰1
Gain（Zenith）;2 dBi
Polarization;Linear
Impedance;50 Ω

Cable;RG174
Connector;SMA/MCX/FAKRA or others
Material;ABS
Mounting Method;Screw
Operating Temperature ;-40℃~+85℃
Relative Humidity;Up to 95%
Ingress Protection;IP67 (exclude cable outlet)
Vibration;10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly;ROHS Compliant

Waterproof IP67

MOQ:2PCS

SPQ:100PCS/box

Ddelivery time:5working day

Payment term:T/T

Package:plastic bag and box

Paymeter method:Paypal;Wire Transfer

Shiping way:DHL Fedex UPS OR Marine FBA
