7 in1 Combination Antennas with WiFiX2 GNSS L1 L5 LTE 5Gx4

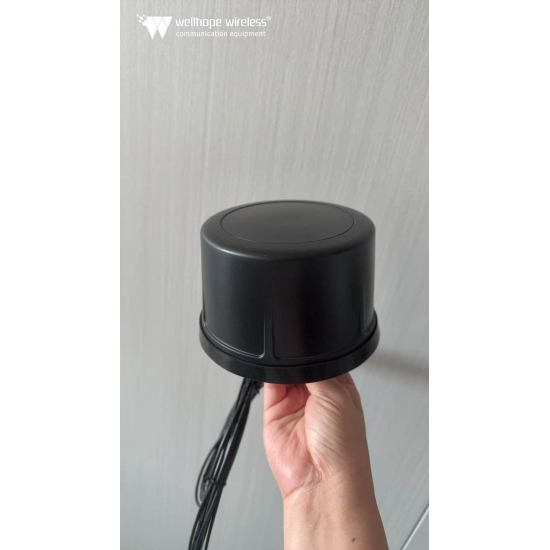

7 in 1 GNSS/5G/WIFI Combo Outdoor Antenna
7 in1 Combination Antennas with WiFiX2 GNSS L1 L5 LTE 5Gx4 7 in1 Combination Antennas with WiFiX2 GNSS L1 L5 LTE 5Gx4 7 in1 Combination Antennas with WiFiX2 GNSS L1 L5 LTE 5Gx4 7 in1 Combination Antennas with WiFiX2 GNSS L1 L5 LTE 5Gx4 7 in1 Combination Antennas with WiFiX2 GNSS L1 L5 LTE 5Gx4 7 in1 Combination Antennas with WiFiX2 GNSS L1 L5 LTE 5Gx4 7 in1 Combination Antennas with WiFiX2 GNSS L1 L5 LTE 5Gx4 7 in1 Combination Antennas with WiFiX2 GNSS L1 L5 LTE 5Gx4 7 in1 Combination Antennas with WiFiX2 GNSS L1 L5 LTE 5Gx4 7 in1 Combination Antennas with WiFiX2 GNSS L1 L5 LTE 5Gx4 7 in1 Combination Antennas with WiFiX2 GNSS L1 L5 LTE 5Gx4 7 in1 Combination Antennas with WiFiX2 GNSS L1 L5 LTE 5Gx4 7 in1 Combination Antennas with WiFiX2 GNSS L1 L5 LTE 5Gx4 7 in1 Combination Antennas with WiFiX2 GNSS L1 L5 LTE 5Gx4 7 in1 Combination Antennas with WiFiX2 GNSS L1 L5 LTE 5Gx4 7 in1 Combination Antennas with WiFiX2 GNSS L1 L5 LTE 5Gx4 7 in1 Combination Antennas with WiFiX2 GNSS L1 L5 LTE 5Gx4 7 in1 Combination Antennas with WiFiX2 GNSS L1 L5 LTE 5Gx4

7 in1 Combination Antennas with WiFiX2 GNSS L1 L5 LTE 5Gx4

WH-5G-MIMOX7


The WH-5G-MIMOX7 7-in-1 Combination Antenna from WHWIRELESS is designed for advanced IoT, smart grid, and industrial automation applications requiring reliable multi-network performance. This compact antenna integrates 5G, LTE, Wi-Fi (2.4/5.8GHz), and GNSS (L1/L5), offering seamless connectivity and precise geolocation. With a frequency range of 617–960MHz, 1710–6000MHz for 5G/LTE, 1559–1608MHz for GNSS, and 2400–2500/5000–6000MHz for Wi-Fi, it ensures stable, high-speed data transmission across multiple platforms. Featuring 3dBi gain x7, MIMO technology, and SMA connectors, this antenna is engineered for superior performance in demanding environments. Its screw-mount design, IP67 waterproof rating, and durable housing make it ideal for outdoor and remote installations powered by renewable energy, such as solar-powered systems. The WH-5G-MIMOX7 enables real-time monitoring, environmental sensing, fleet management, and industrial IoT with reliable signal resilience. Perfect for smart cities, sustainable infrastructure, and next-generation wireless communication, this antenna delivers robust, future-proof connectivity solutions.


  • brand:

    whwireless

  • item no.:

    WH-5G-MIMOX7

  • payment:

    T/T,Alipay,WeChat Pay,Paypal

  • product origin:

    china

  • color:

    black

  • lead time：

    7working day
Inquiry now WhatsApp

GNSSX1

Frequency range:1559~1608MHz

V.S.W.R:＜1.5

Polarization:RHCP

Gain:28±2dB

Impedance:50Ω

Ex-band Attenuation:12dB@CF+50MHz/16dB@CF-50MHz

Noise Figure:1.5dB

Voltage:2.7/3.0/3.3/5.0/3.0 to 5.0 etc DC

Current:11mA

Connector:SMA femalex1

5G LTE X4

Frequency Range:617/960/1710/2700/3300/5900MHz

V.S.W.R:＜3.0

Polarization:Linear

Gain:3/5dBi

Impendence:50Ω

Connector:SMA femalex4

WIFI Antenna X2

Frequency Range:2400-2500/4900-6000MHz

V.S.W.R:＜2.0

Polarization:Vertical

Gain:3/5dBi

Impendence:50Ω

Connector:SMA malex2



Cable:RG174 200CM X7

Screw:M20X1.0thickness/18MM long

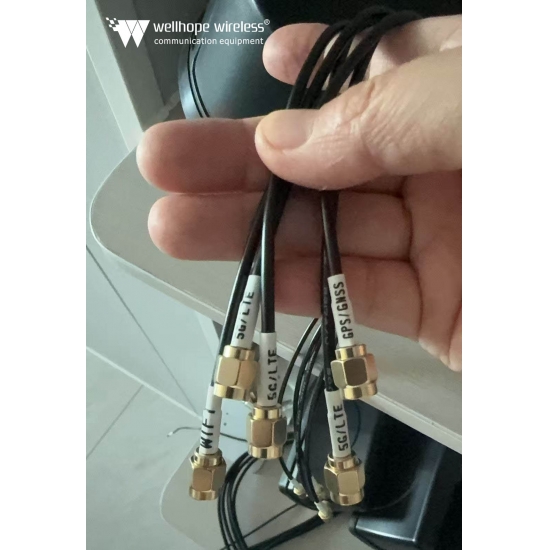

Connector:SMA x7 or Customozed

Radome Material:ABS

Operating Temperature:-40℃~+85℃

Relative  Humidity:Up to 95%

Antenna dimension:Ф140×84.5mm

Ingress  Protection:IP67 (exclude cable outlet)

weight:0.5KG


WH-5G-MIMOX7
