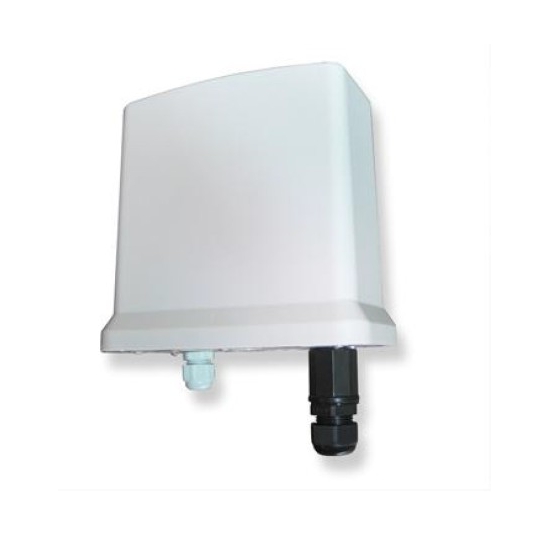

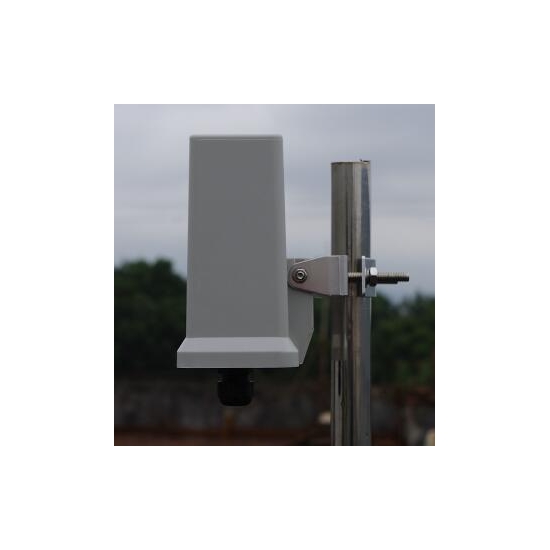

DIY antenna and enclosure WLAN,WiFi system antenna

12/15-dBi

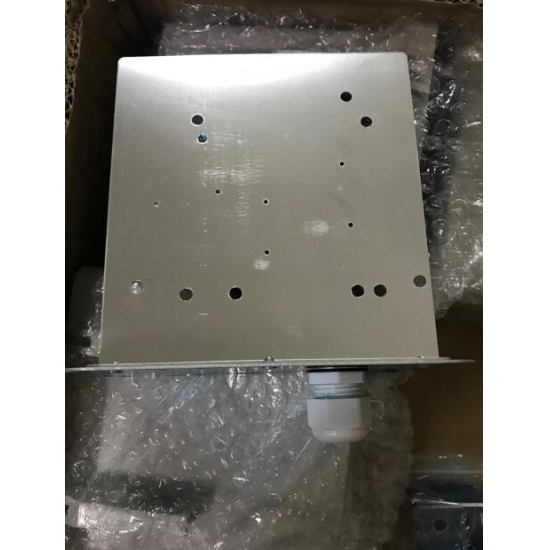

N female wireless AP antenna and enclosure

wireless AP enclosure wifi antenna


  • brand:

    whwireless
  • item no.:

    WH-2.4&5.8-D15
  • payment:

    T/T
  • product origin:

    china
  • color:

    white
  • lead time:

    4 working day
Inquiry now
Frequency ;2400-2500/5725-5850-MHz
Bandwidth;100/125-MHz
Gain;12/15-dBi
F/B ratio;≥15-dB
VSWR;≤1.5
Polarization;Horizontal or Vertical
Max power;100 -W
Nominal Impedance;50 -Ω

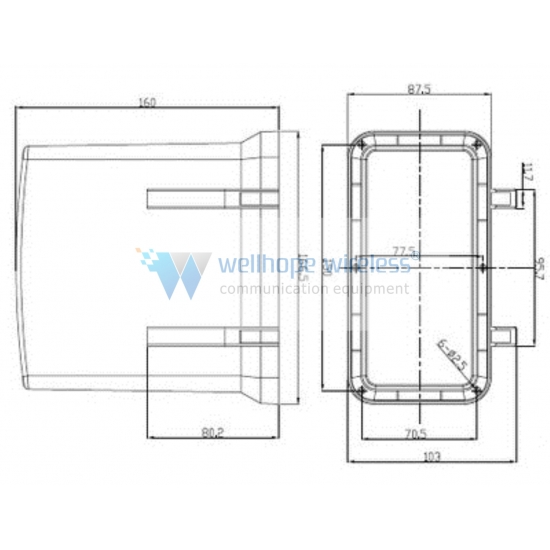

Antenna Dimension;166X160X87mm
Weight;1-kg
Rated Wind Velocity;60-m/s

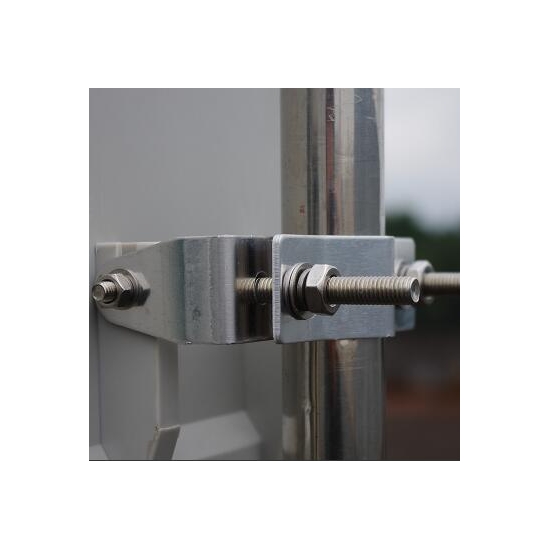

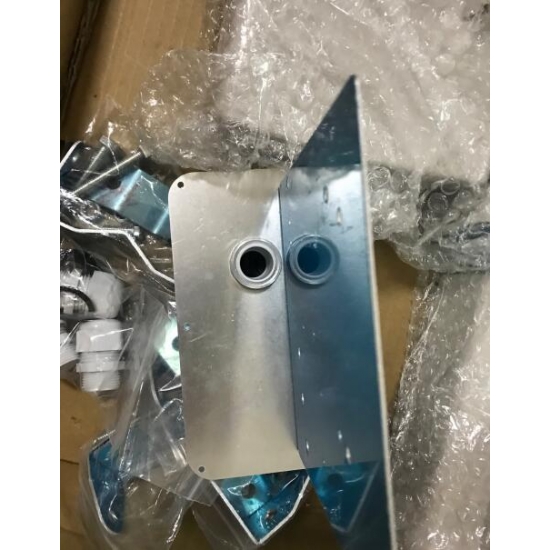

Mounting Kits;Including
Mounting Mast Diameter;Ф40-50mm

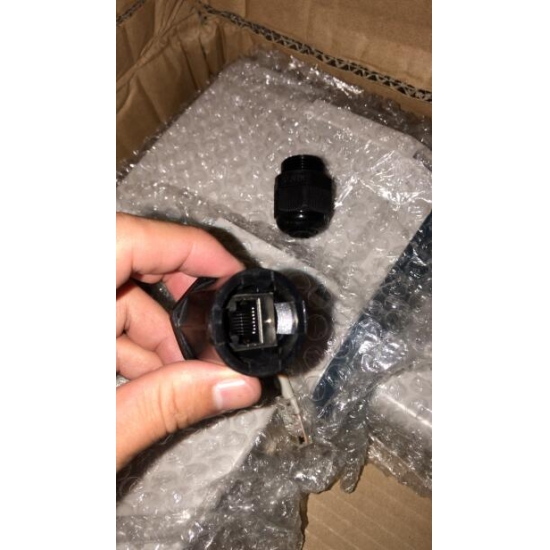

Connector:PG16

Waterproof IP66

MOQ:2PCS

SPQ:100PCS/box

Ddelivery time:5working day

Payment term:T/T

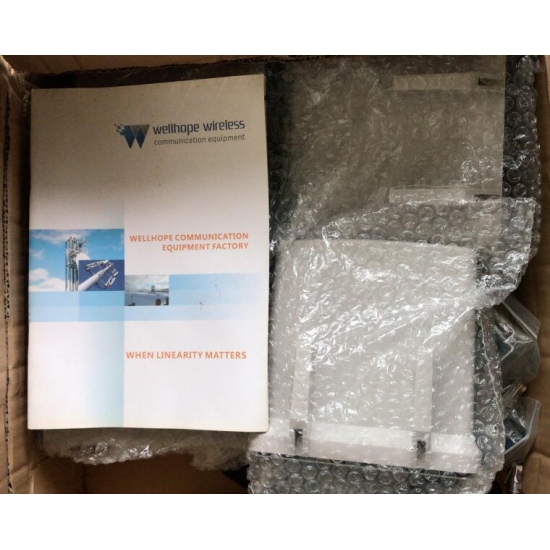

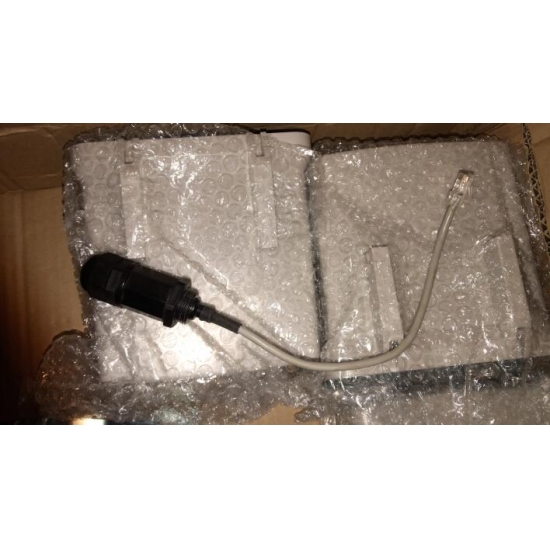

Package:plastic bag and box

Paymeter method:Paypal;Wire Transfer

Customized according client require detail

Shiping way:DHL Fedex UPS OR Air FBA
