GNSS Beidou ANTENNA
FreqRange:GPS Glonass:L1//L5 BEIDOU:B1(1176mhz and 1561mhz-1612mhz)
Gain:>3dBic Based on 7×7cm ground plane
VSWR:≤1.5
Impedance:50Ω
Horizontal coverage angle:360°
10dB (Band Width):±10MHz
Polarization:RHCP
Axial Ratio:≤5dB
LNA
FreqRange:GPS Glonass:L1//L5 BEIDOU:B1(1176mhz and 1561mhz-1612mhz)
DC Voltage:2.8~5V
Gain:28dB
Output (VSWR):≤1.8
Output impedence:50±5
Passband ripple:1575.42M ±1.023MHz : < 1dB (only for LNA)
Noise Figure:≤1.8dB
Out of band inhibition(Off center quantity 100MHz):7dB Min f0+/-20MHz
20dB Min f0+/-50MHz
30dB Min f0+/-100MHz
1dB compression point output:>-15dBm (only for LNA)
Power consumption:≤15mA
5G LTE
Center Frequency:698-960MHZ/1710-2700/4800MHz
Gain:2.0dBi
Impendance:50±5
V.S.W.R:<3.0
Radiation Direction:Omnidirectional
4G LTE
Center Frequency:698-960MHZ/1710-2700MHz
Gain:2.0dBi
Impendance:50±5
V.S.W.R:<3.0
Radiation Direction:Omnidirectional
WIFI
Center Frequency:2400-2483MHz
Gain:3.0dBi
Impendance:50±5
Working environment
Working temperature:-40℃~+80℃
Storage Temperature:-45℃~+85℃
Humidity:95%~100%
Waterproof:IP66
Antenna structure
Weight:<130g

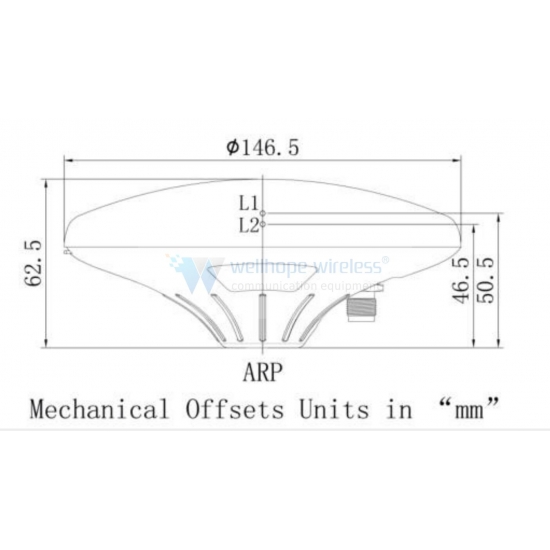

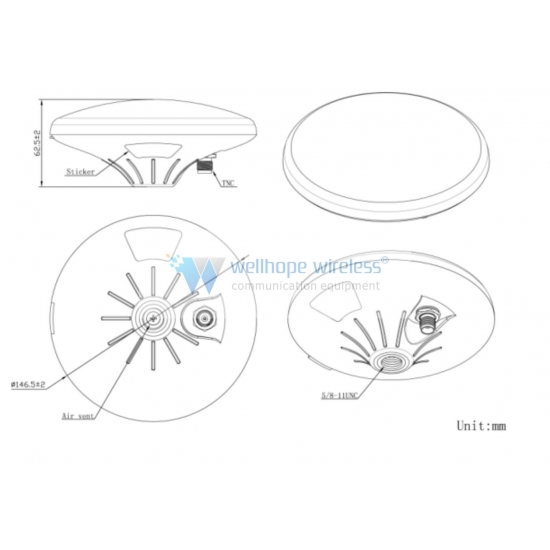

size:Φ146.5X62.5
cable:RG174 3METERS
connector:SMA male or customized
Mounting:magnet
Housing:ABS White and black &bluer
vibration:Sine sweep 1g(0-p) 10~55~10Hz each axis
Waterproof IP66
MOQ:2PCS
Ddelivery time:5working day
Payment term:T/T
Package:plastic bag and box
Paymeter method:Paypal;Wire Transfer
