Products

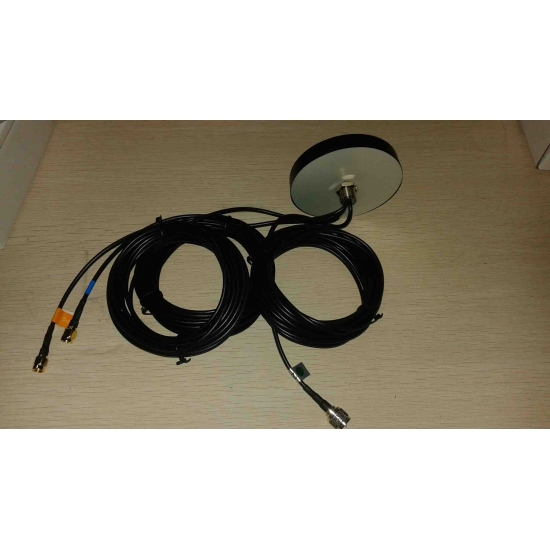

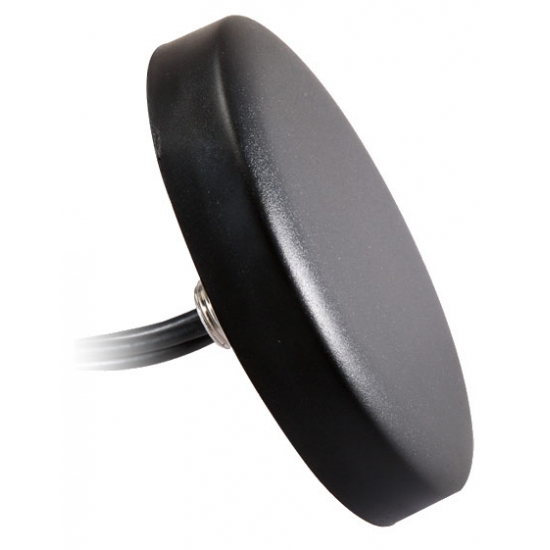

GPS vehicle surveillance wlan GSM antenna

Screw mounting

GPS tracker activation ;wireless vehicle tracking

IP67 waterproof antenna individual package screw mounting antenna GPS GSM WiFi antenna

  • brand:

    whwireless
  • item no.:

    WH-GPS&GSM&WIFI-D3
  • payment:

    T/T
  • product origin:

    china
  • color:

    black
  • lead time:

    5working day
Inquiry now
GPS
Frequency:1575.42 MHz±3 MHz
Bandwidth:±5 MHz
VSWR:≤1.5
Gain:3dBi
Polarizatio Type:RHCP
Input Impedance:50Ω
LNA Gain:25±3 dB
Noise Figure:1.5 dB
Filter Out Band Attenuation:12dB Min f0+50MHz
16dB Min f0-50MHz
DC Voltage:3~5 V
DC Current:8~15 mA
GSM part:
Frequency:824-849/1710-1990&850-960/1710-1990Mhz
Gain(Zenith):2±1dB@900MHz or 1±1dB@1800MHz
V.S.W.R:2.0:1
WIFI part:
Frequency(MHz):2400~2500 MHz
V.S.W.R(5m):≤2.5︰1
Gain(Zenith):3 dB
Impedance:50 Ω

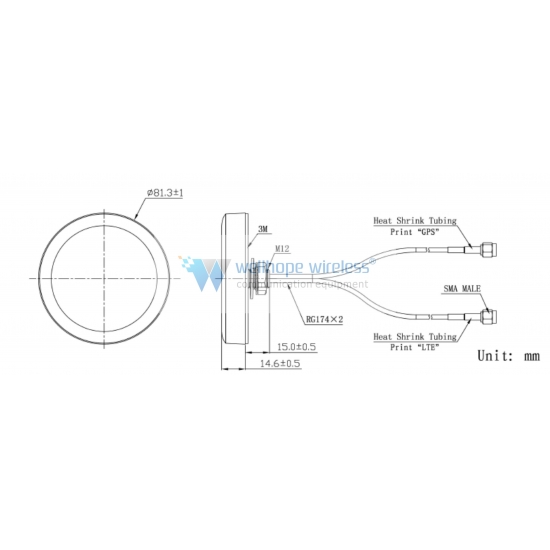

dimension:D80×15(mm)
Cable:RG174 5m or 3m
Connector:SMA
Plastic Housing:Black
Mounting:Screw
Working tempreature:-40℃~+85℃
Humidity:55%~75%RH
Waterproof:IP67

Waterproof IP67

MOQ:10PCS

Ddelivery time:5working day

Payment term:T/T

Package:plastic bag and box

Paymeter method:Paypal;Wire Transfer
