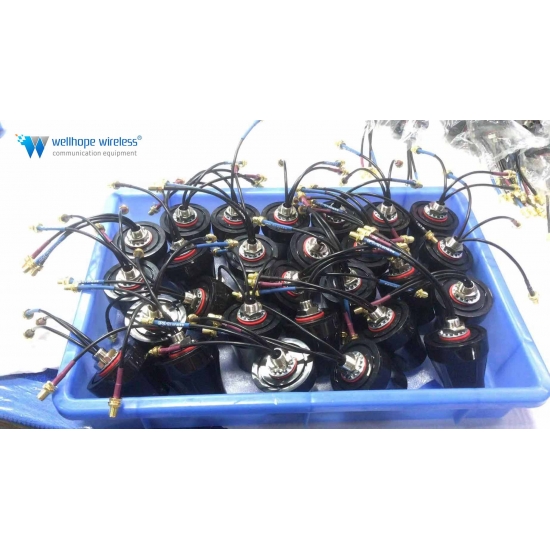

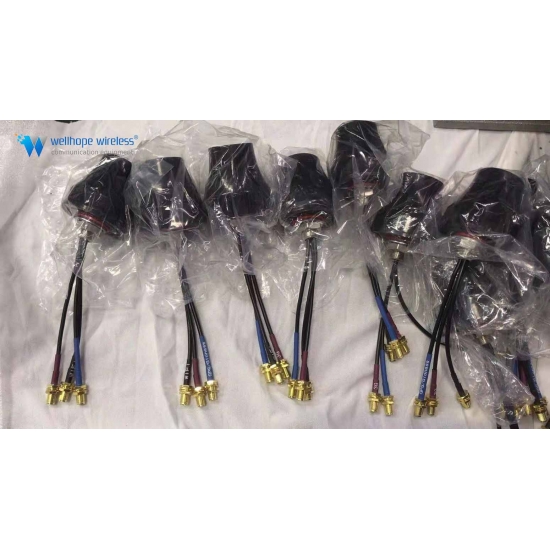

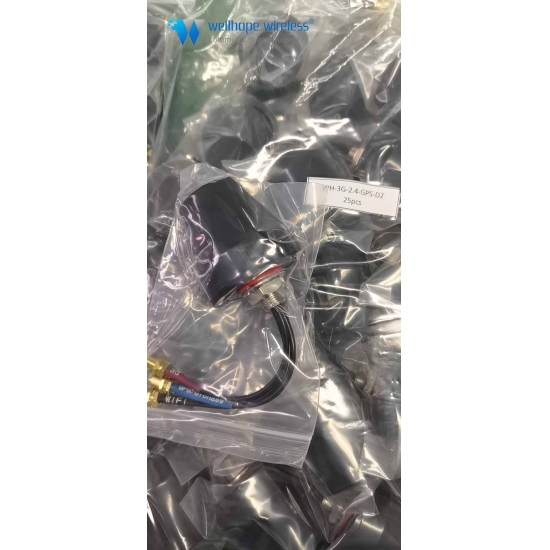

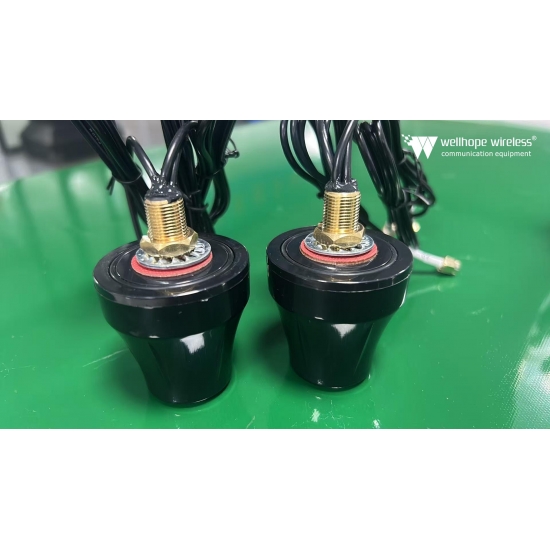

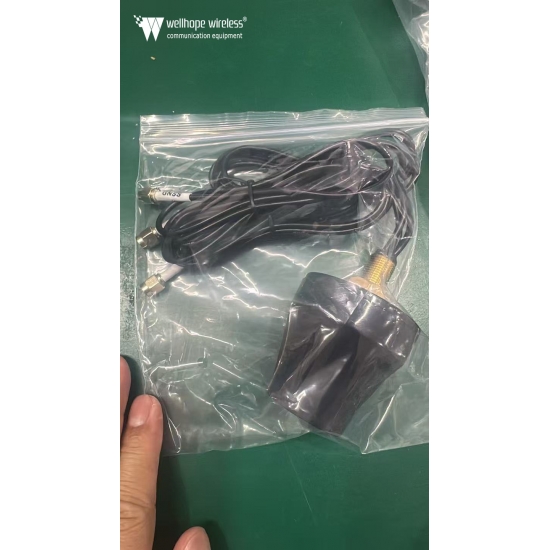

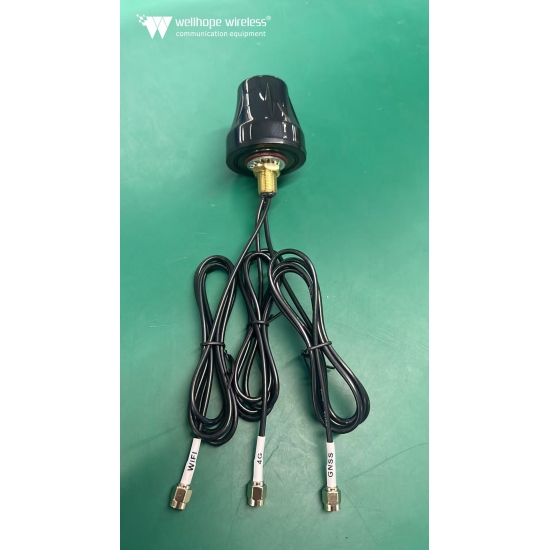

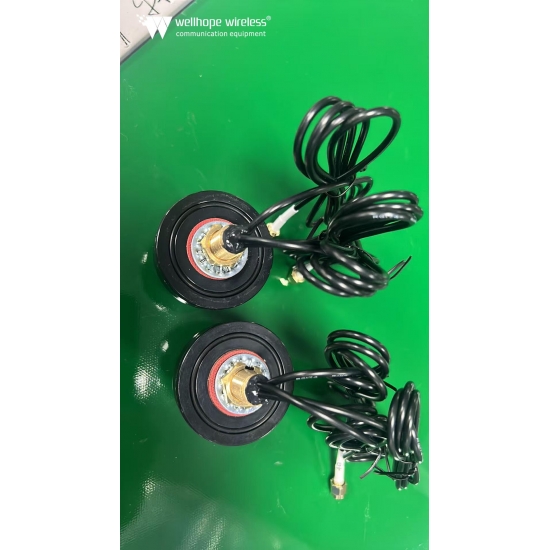

4G Wlan GPS Glonass BCS screw antenna 3 cable 3 connector

4G Wlan GPS Glonass BCS screw antenna 3 cable 3 connector

apply to outdoor 4G Wlan GPS Glonass BDS screw antenna 3 cable 3 connector

2.4GHz/4.9GHz/6GHz

ROHS antenna screw mounting GPS WIFI 3G antenna IP67 GPS WIFI 3G antenna individual antenna

brand:
whwireless
item no.:
WH-4G-2.4-GPS-D2
payment:
T/T
product origin:
china
color:
black
lead time：
7working day

Inquiry now

GPS/GLONASS Part:
Center Frequency;GPS1575.42MHz/GLONASS1592MHz/BDS1612MHz
Band width;±5 MHz
V.S.W.R; 2.5
Polarization;RHCP
Impedance; 50Ω
LNA Gain;28±2dB Typical
Noise Figure; 1.5dB
V.S.W.R;＜2.0
DC Voltage;2.2-5.0V
DC current; 5-15mA
4G Part:
Frequency range;700/824-960/1710-2170/2700MHz
VSWR;2.5
Gain;3dBi
Polarization;Linear
Impedance; 50Ω
WIFI Part:
Frequency range;2.4GHz/4.9GHz/6GHz
VSWR; 2.5
Gain;3dBi
Polarization;Linear
Impedance; 50Ω

Cable;RG174 3m/5m or others
Connector;SMA/SMB/MCX or others
Plastic Housing;Black
Radome;ABS

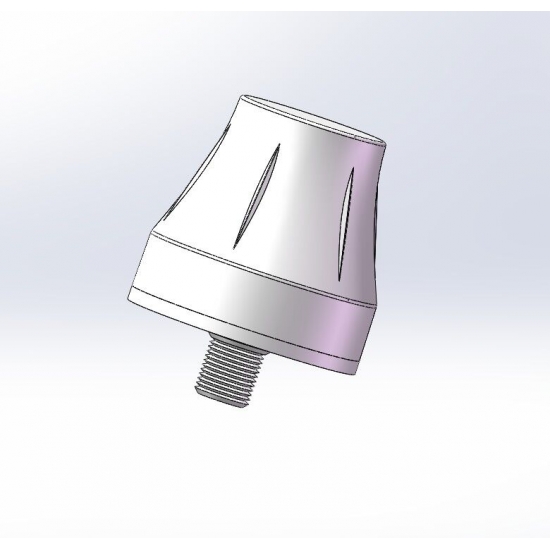

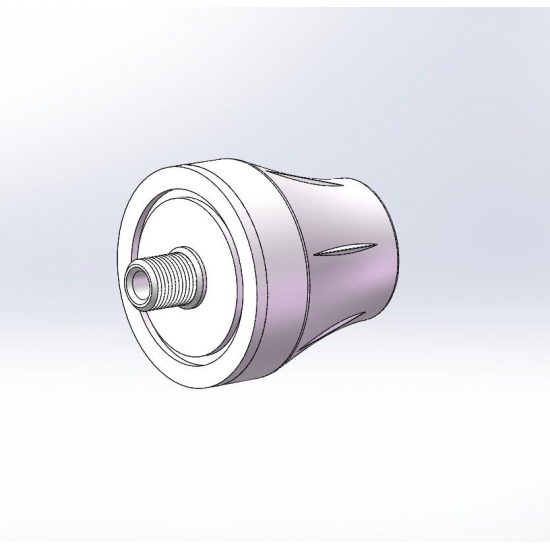

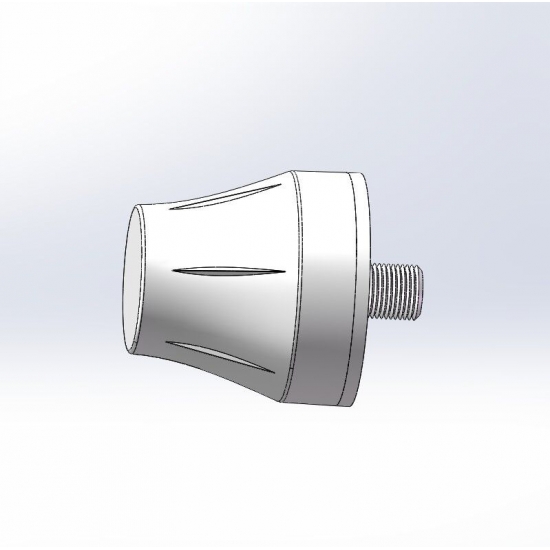

Mounting;Screw
Operating Temperature;-40℃~+85℃
Relative Humidity;Up to 95%
Ingress Protection;IP67 (exclude cable outlet)
Vibration;10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly;ROHS Compliant
