Remote control GPS Glonass &BeiDou high precision 2CM range antenna

  • brand:

    whwireless
  • item no.:

    WH-GNSSB-HP45
  • payment:

    T/T
  • product origin:

    china
  • color:

    black
  • lead time:

    7working day
Inquiry now

Antenna part:

FreqRange:GPS Glonass:L1//L5 BEIDOU:B1(1176mhz and 1561mhz-1612mhz)

Ceramic antenna:GPS  Glonass L5,(45mmx45mmx6mm)

BD2:B1 , GPS:L1 (30mmx30mmx4mm)

VSWR:≤1.8

Gain:1.0dBic(1176MHz)

3.0dBic(1558~1612MHz)

at Zenith Max

Impedance:50Ω

Polarization:RHCP

Axial Ratio :≤15dB:at Zenith

LNB part

FreqRange:GPS Glonass:L1//L5

                  BEIDOU:B1

DC Voltage :3~5V

Out band Rejection(Absolute value) :≥25dB( FH+100MHz )


                                                       ≥25dB( FL-100MHz )

Output (VSWR) :≤1.8

Noise Figure :≤1.8dB

DC current:10-17 mA (at3V)


Working environment

Working temperature:-40℃~+80℃

Storage Temperature:-45℃~+85℃

Humidity:95%~100%

Waterproof:IP66

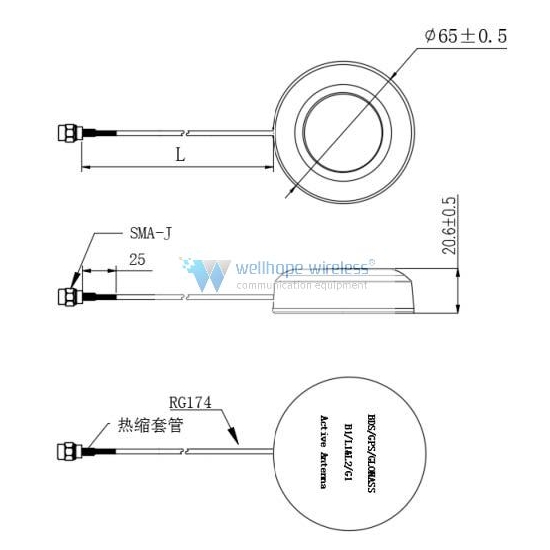

Antenna structure

Weight :<130g

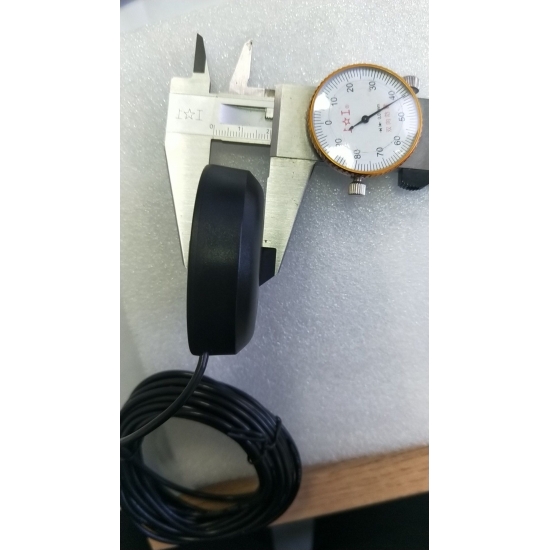

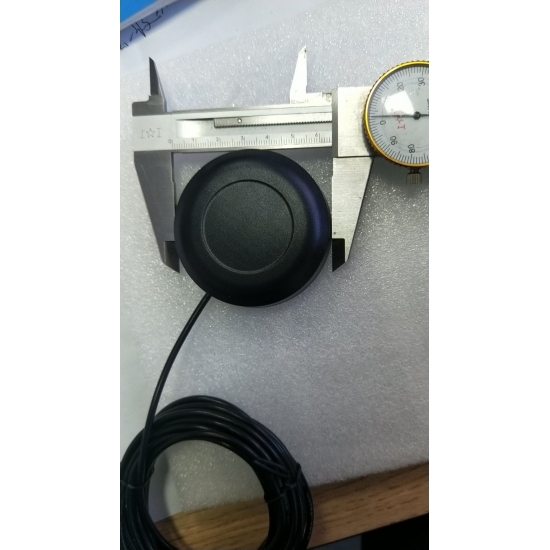

size:Φ55X50X20 mm

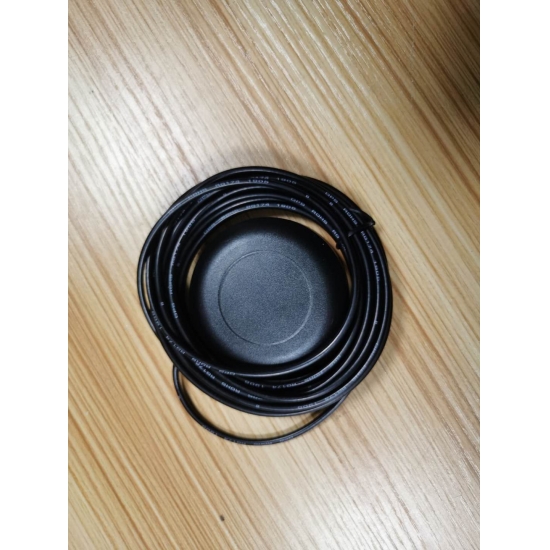

cable:RG174 3METERS

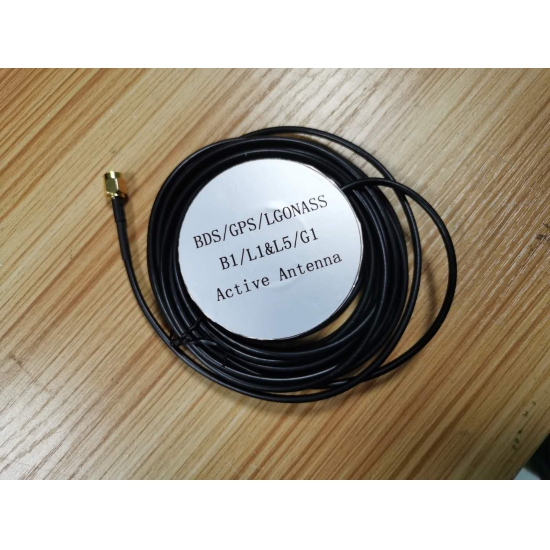

connector:SMA male or customized

Mounting:3M adhesive or magnet

Housing:ABS black colour

ESD protestion:+/- 6kv (direct discharge) and +/- 8kv (air discharge)

vibration:Sine sweep 1g(0-p)  10~55~10Hz each axis



Waterproof IP66

MOQ:5PCS

Ddelivery time:5working day

Payment term:T/T

Package:plastic bag and box

Paymeter method:Paypal;Wire Transfer
