VHF fiberglass Antenna 140-150 MHz, 3dBd, N Female

WH-140-150-0S3

UHF Antenna for Signal Coverage – WH-140-150-0S3

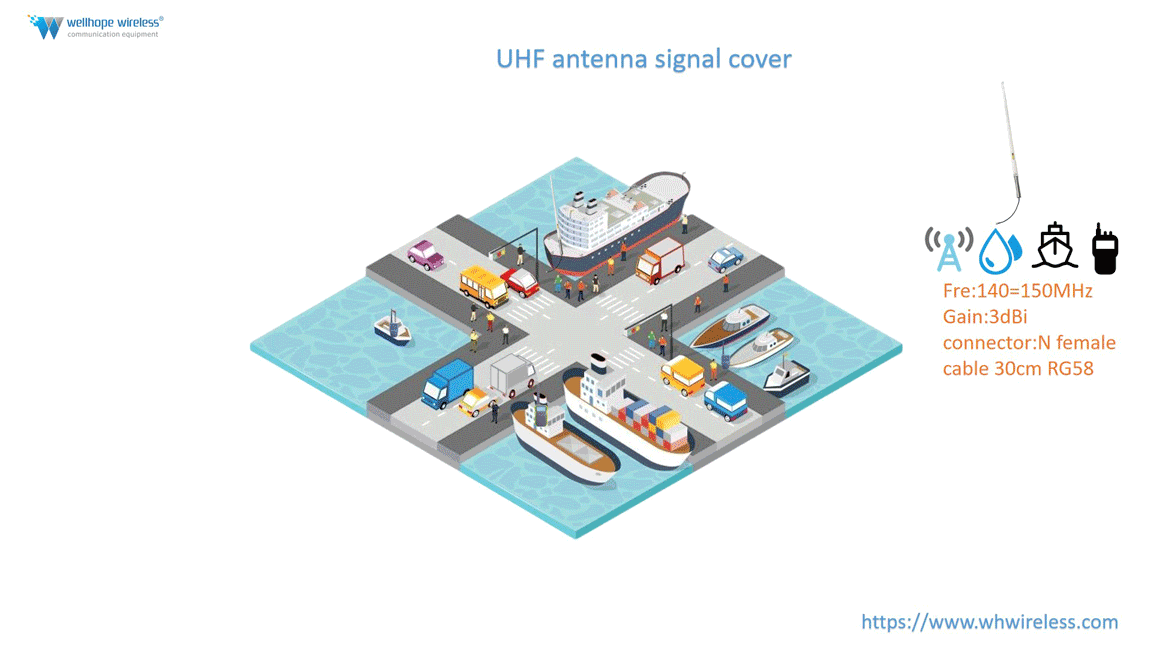

The WH-140-150-0S3 UHF antenna by Wellhope Wireless is designed to deliver exceptional signal coverage in a wide range of environments, particularly in maritime and port operations. Engineered for the 140–150MHz frequency range, this antenna provides 3dBi gain, ensuring reliable and stable communication for your equipment. Whether used for ship-to-shore communication, container tracking, or logistics, this antenna excels in harsh outdoor conditions.

The 30cm RG58 cable with N-female connector ensures easy integration with existing systems, providing a hassle-free setup. Built to withstand the elements, this antenna is perfect for applications in the transportation, shipping, and logistics industries. Its durable design guarantees reliable performance even in challenging environments, such as water docks, ports, or on vehicles.

  • brand:

    whwireless
  • item no.:

    WH-140-150-0S3
  • payment:

    T/T
  • product origin:

    china
  • color:

    white
  • lead time:

    7working day

Frequency:140-150MHz
Bandwidth:10MHz

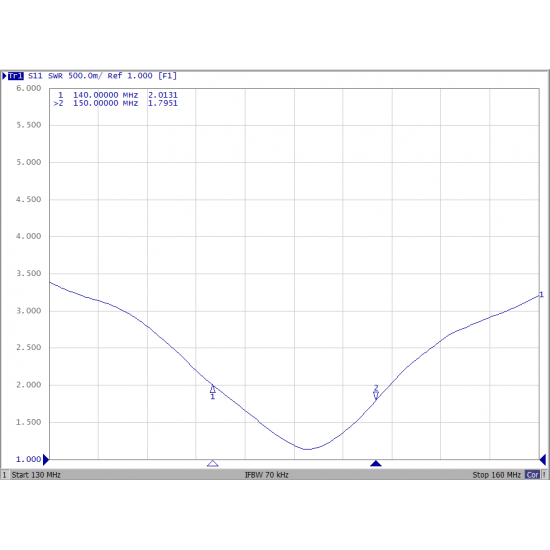

VSWR:≤1.5
Gain:3dBi
Polarization Type:Vertical
Beam width H:360° E:20°
Rated Power:50w
Input Impedance:50Ω

Connector Type:N Female

Antenna length:Φ38X1800mm

Weight:2.5Kg

Maximum withstand wind:60M/S

waterproof IP66


WH-140-150-0S3
