magnetic antenna VHF/UHF dual band TNC male connector vehical antenna

magnetic antenna VHF/UHF dual band TNC male connector vehical antenna

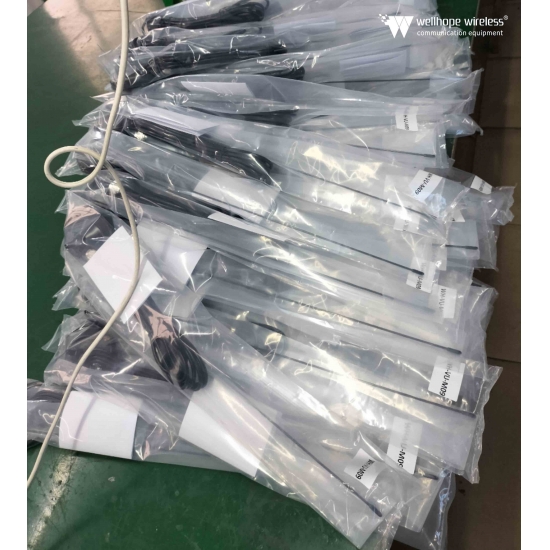

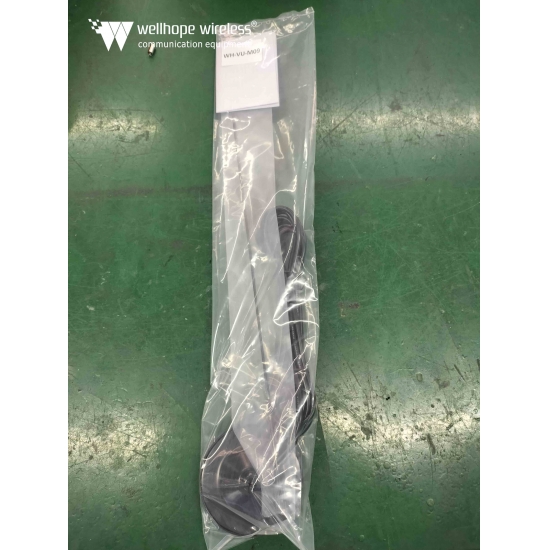

UHF magnet antenna UHF magnet outdoor antenna individual package

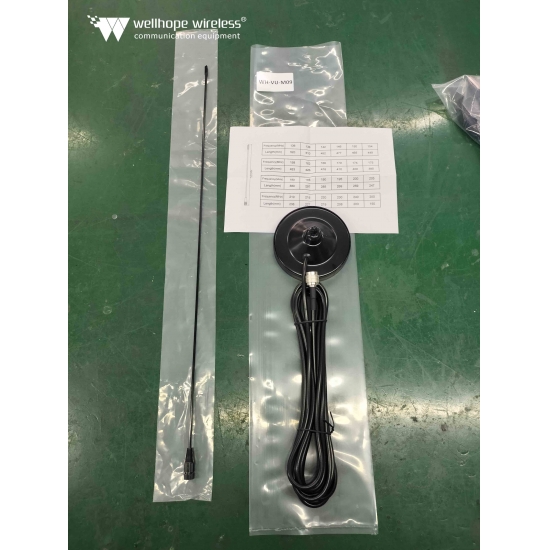

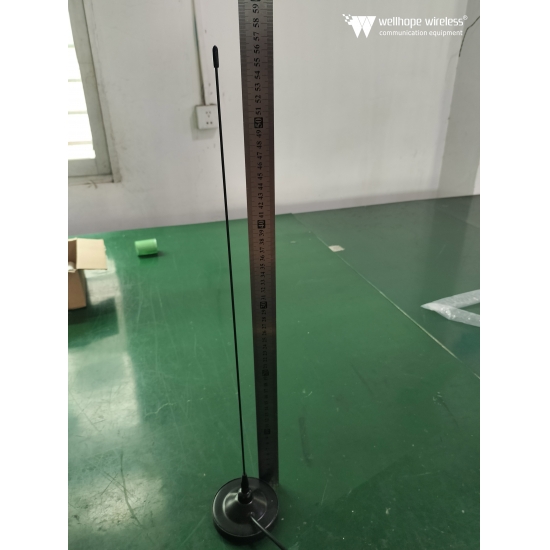

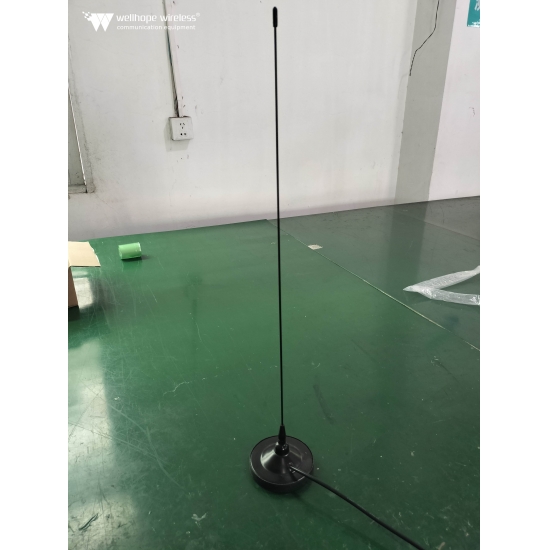

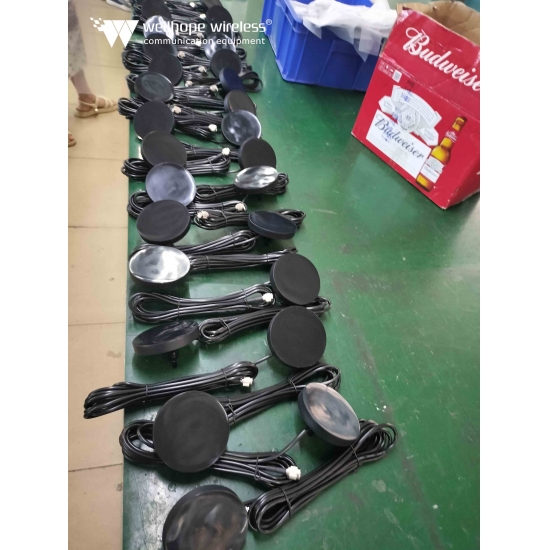

The WH-VU-M09 is a versatile antenna designed for various VHF and UHF applications WH-VU-M09 Antenna 136-250MHz, unity gain, 1/4 wave, tunable, up to 150 Watts power, black chrome plated stainless steel whip, with 90mm magnet mount, 3.66 meter RG-58U coax cable with assembled connector. Stainless steel whip, 520mm overall height. Cut whip to the desired frequency according to the provided cutting chart.

brand:
whwireless
item no.:
WH-VU-M09
payment:
T/T
product origin:
china
color:
black

Inquiry now

Frequency Range:136-250MHz

Input Impedance:50Ω

Horizontal Beamwidth:360°

Vertical Beamwidth: 15°

V.S.W.R:≤1.5

Gain:2.5dBi

Max Input Power:150 W

Polarization Type:Vertical

Connector Type:TNC male

Lightning Protection:DC Ground

Working Temperature:-45℃~﹢85℃

Storage Temperature:-45℃~﹢85℃

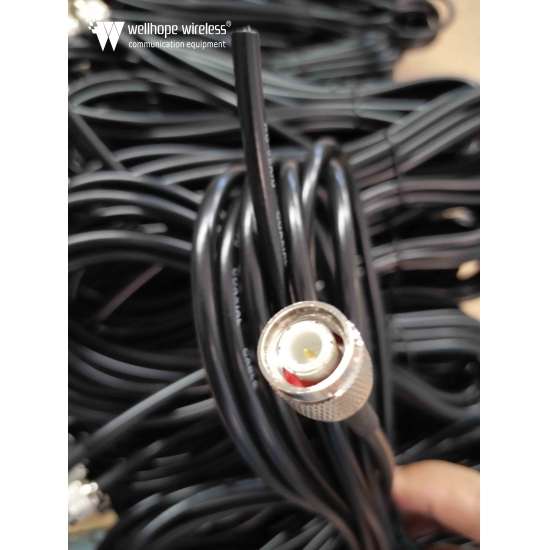

cable:RG58;3.66 Meter

Radome material:Steel (BLACK)

Weight:1.5kg

Pole Diameter:Φ35~φ55

Size:Φ90x565-mm

Rated Wind Velocity:60m/s
