UHF 450-470MHz fiberglass antenna

The UHF Omni Antenna WH-450-470-0S6.5 is engineered for demanding outdoor environments, ensuring reliable performance in various conditions. With an IP66 rating, it offers robust protection against powerful water jets and dust ingress, making it suitable for harsh weather conditions and industrial settings.

Designed to withstand high wind speeds, the antenna can endure winds up to 60 m/s, ensuring stability and continuous operation even in stormy conditions. Its fiberglass construction provides durability and resistance to environmental factors such as UV radiation and corrosion.

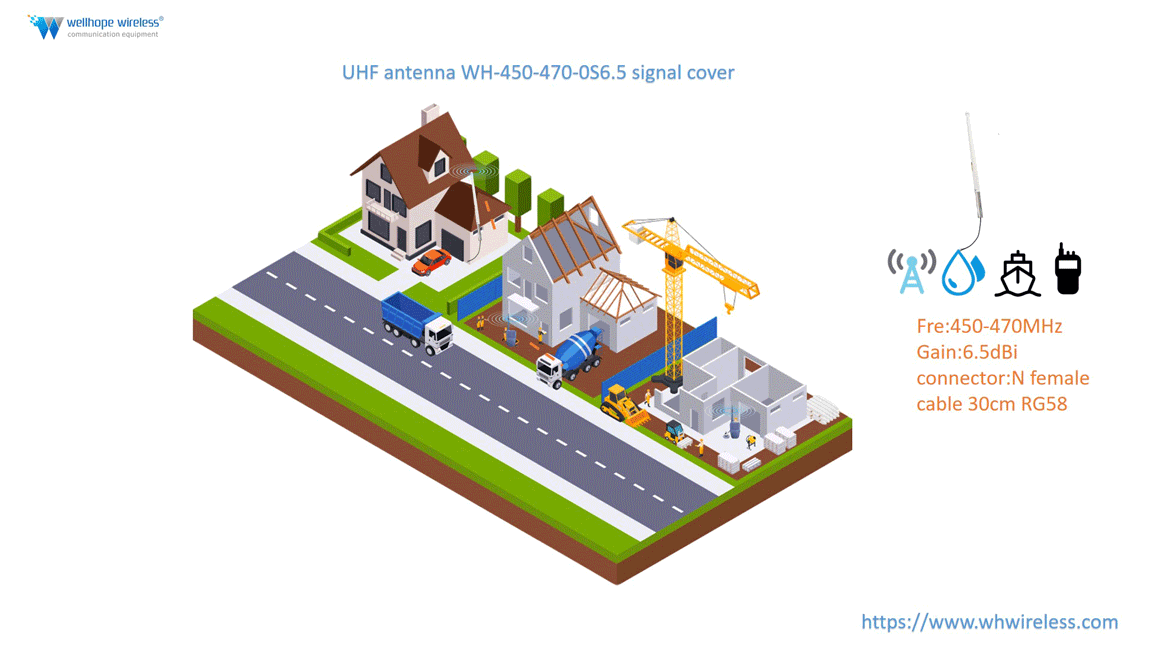

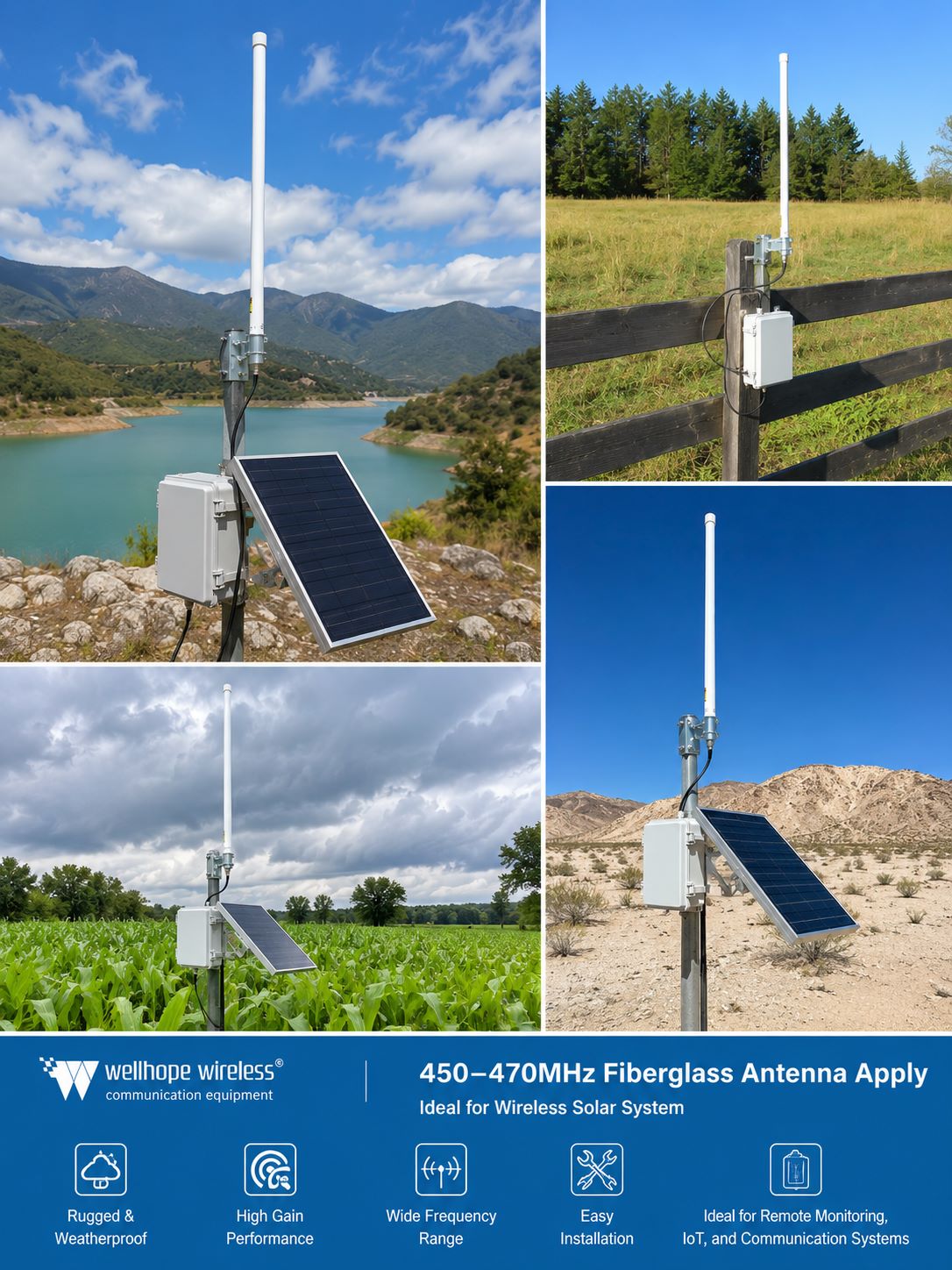

The antenna's vertical polarization and 6.5 dBi gain optimize signal reception and transmission over long distances, making it ideal for applications like remote telemetry, industrial monitoring, and wireless communication systems. Its N female connector and 50Ω impedance ensure compatibility with various systems, supporting up to 50W rated power

brand:
whwireless
item no.:
WH-450-470-0S6.5
payment:
T/T
product origin:
china
color:
white
lead time：
7working day

Inquiry now WhatsApp

Frequency:450-470MHz
Bandwidth:20MHz
VSWR:≤1.5
Gain:6.5dBi
Polarization Type:Vertical
Beam width H:360° E:6°
Rated Power:50w
Input Impedance:50Ω

Connector Type:N Female
Antenna length:Φ38X1000mm
Weight:4Kg

Maximum withstand wind:60M/S

waterproof IP66
