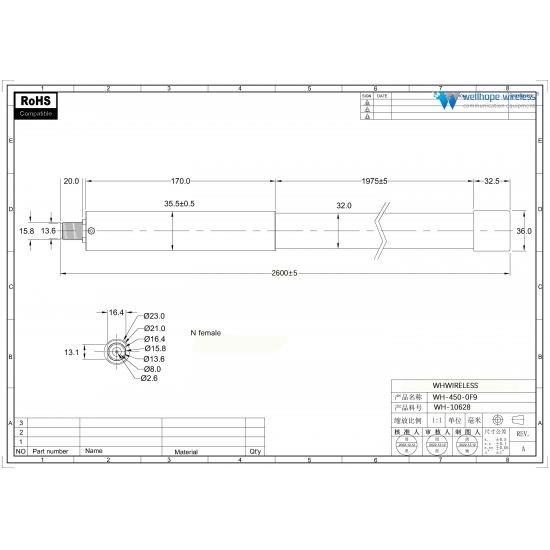

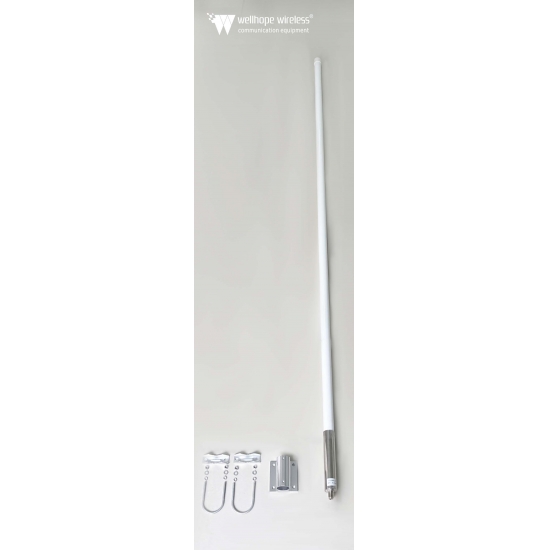

WHWIRELESS fiberglass antenna model WH-450-0F9 9dBi Φ25X2600mm has a total length of 4 meters, which is assembled by two parts. The first part measures 2.2 meters in length, while the second part measures 1.8 meters in length. The antenna is designed in such a way that it can be easily assembled by connecting these two parts securely
WH-450-0F9 operating within the frequency range of 450-470MHz. With a maximum power handling capability of 200 watts, it is designed to provide reliable and efficient transmission and reception capabilities. Constructed using high-quality fiberglass materials, this antenna offers durability and long-lasting performance. It features an IP67 rating, ensuring protection against dust, dirt
the WH-450-0F9 antenna is designed to deliver exceptional performance and durability for various applications, including commercial, industrial, and public safety environments.
brand:
whwirelessitem no.:
WH-450-0F9payment:
T/Tproduct origin:
chinacolor:
whitelead time:
7working dayFrequency Range:450-470MHz
Input Impedance:50Ω
Horizontal Beamwidth:360°
Vertical Beamwidth: 18-21°
V.S.W.R:≤2
Gain:9dBi
Max Input Power:50 W
Polarization Type:Vertical

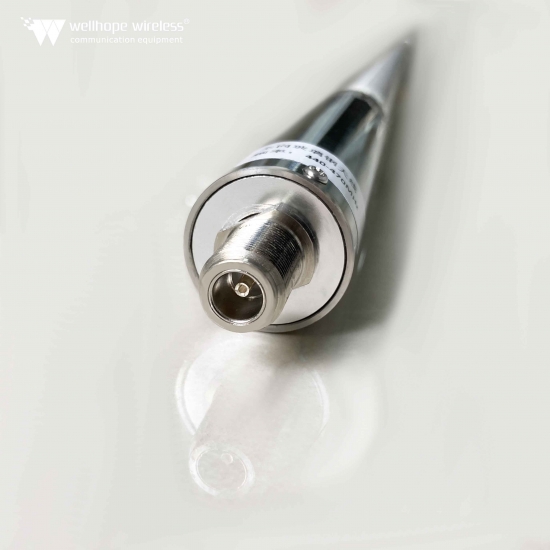

Connector Type:N female
Lightning Protection:DC Ground
Working Temperature:-45℃~﹢85℃
Storage Temperature:-45℃~﹢85℃
Radome material:Fiberglass(white)
Weight:2kg

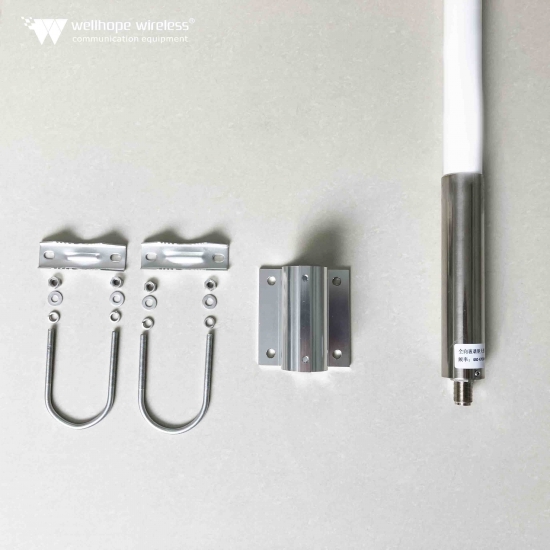

Pole Diameter:Φ35~φ55
Size:Φ32x2600-mm
Rated Wind Velocity:36.9m/s
Waterproof IP67
MOQ:2PCS
SPQ:100PCS/box
Ddelivery time:5working day
Payment term:T/T
Package:plastic bag and box
Paymeter method:Paypal;Wire Transfer
Customized according client require detail
Shiping way:DHL Fedex UPS OR Air FBA
