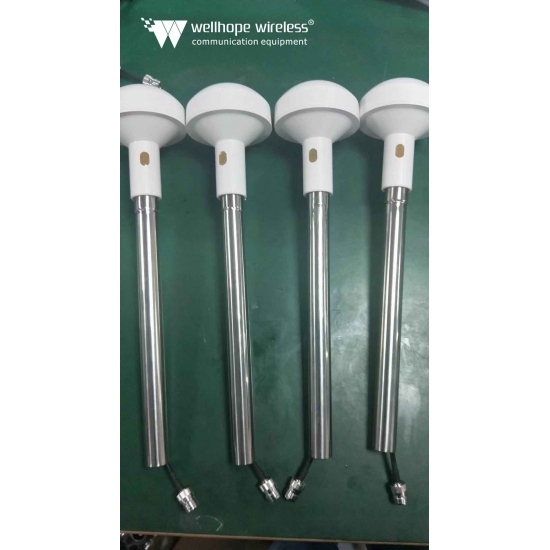

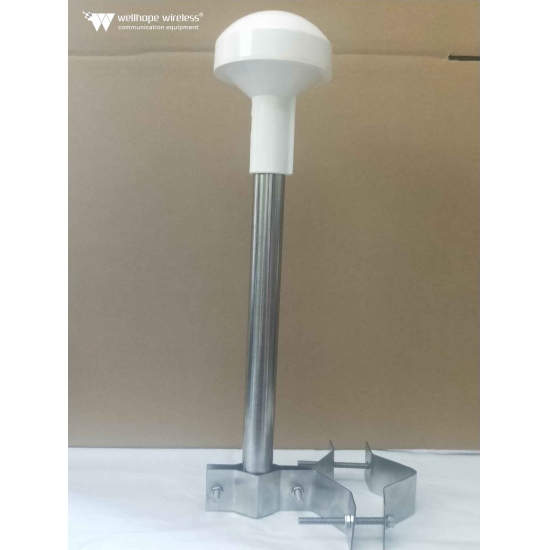

GPS and Glonass BDS IP67 antenna with N female directly

  • brand:

    whwireless
  • item no.:

    WH-GPS&GLON-Nf
  • payment:

    T/T
  • product origin:

    china
  • color:

    white
  • lead time:

    7working day
Inquiry now

GPS Glonass BDS parameter

Center Frequency(MHz):1559-1610.5MHz

Polarization:Right-hand circular polarization

Gain (dBi):(10°)≥-4

Beam width(°):3dB:≥100±10

V.S.W.R:<2

Non circularity(dB):10°<±1.5

Cross polar Ratio (dB):90°>12

LAN parameter

Gain [dB]:38±2

Noise Figure [dB]:<3

V.S.W.R:<1.8

DC Voltage [V]:2.2-5±1

Current (mA):<25

Impedance(Ω):50

Out of Band Rejection(dB):1 to 960 MHz:>70dB

Connector :N female or SMA male or customized

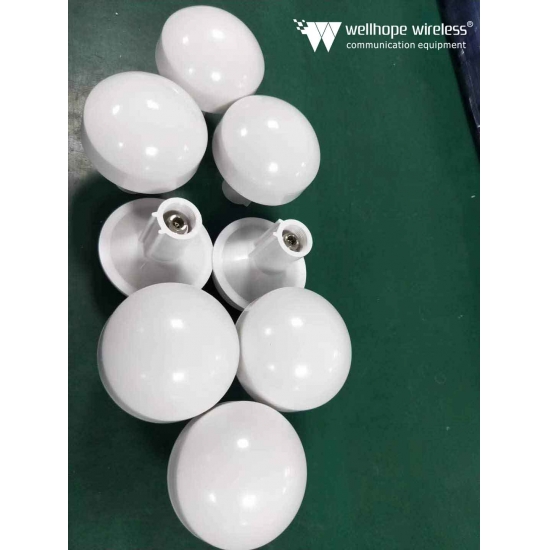

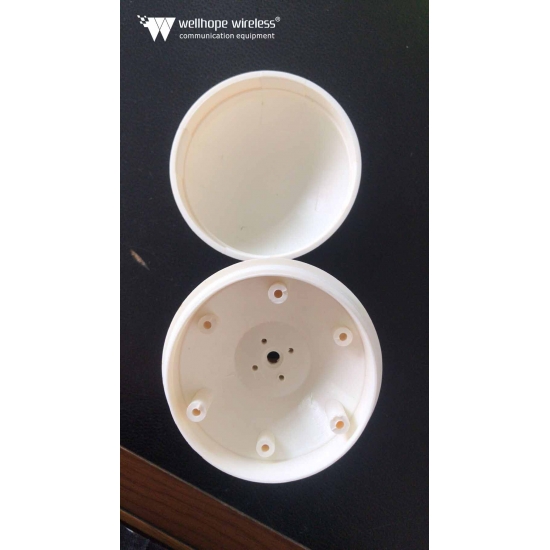

Plastic Housing :White

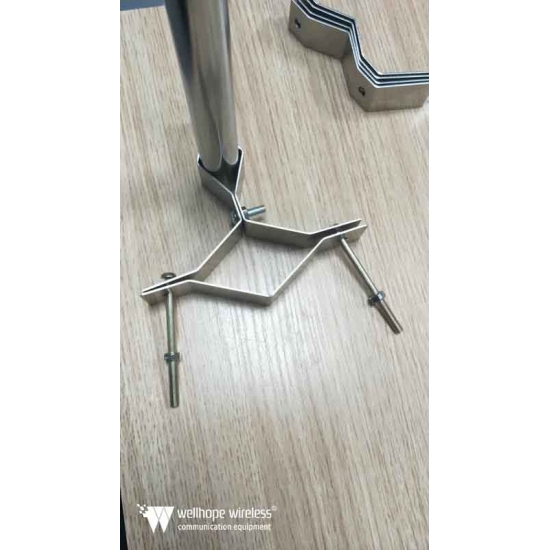

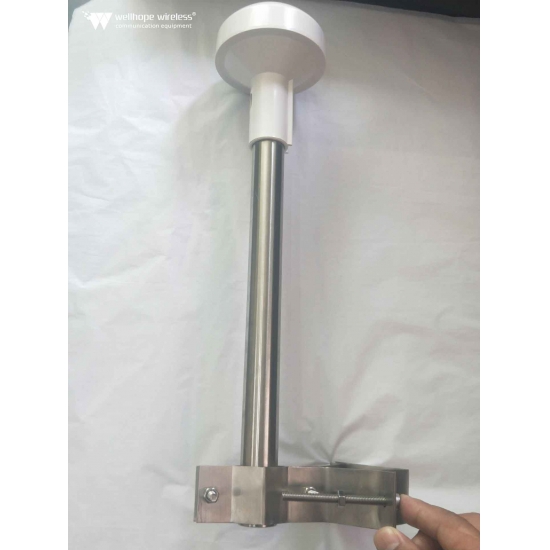

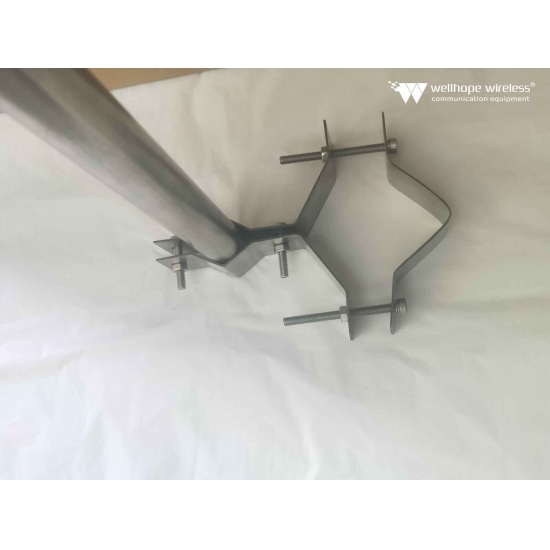

Mounting :Screw

Breath holes diameter :2mm X2

Connector :N male

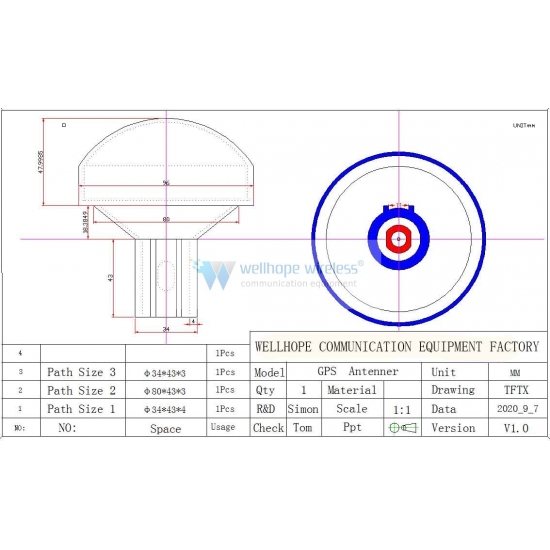

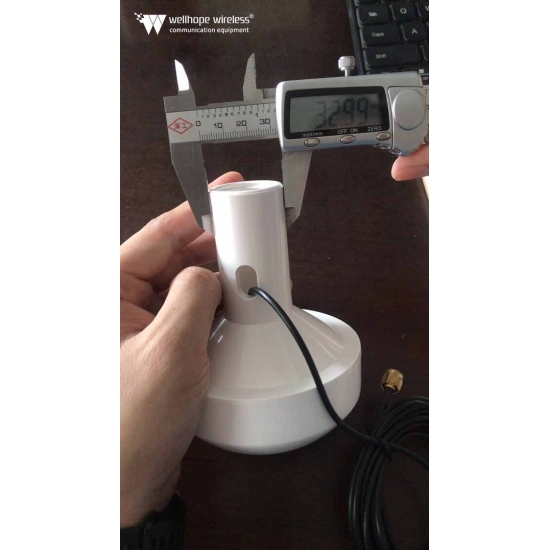

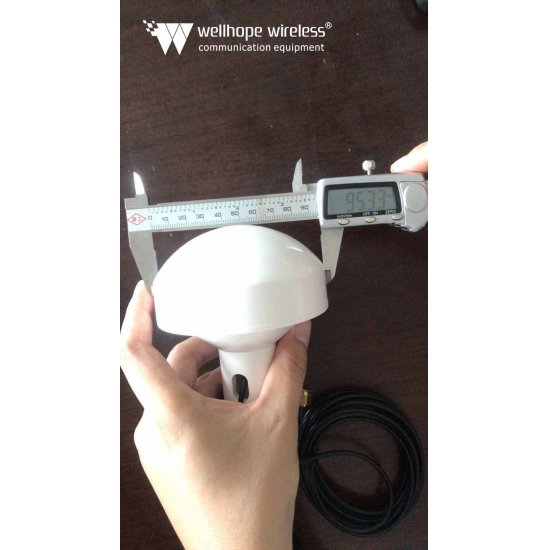

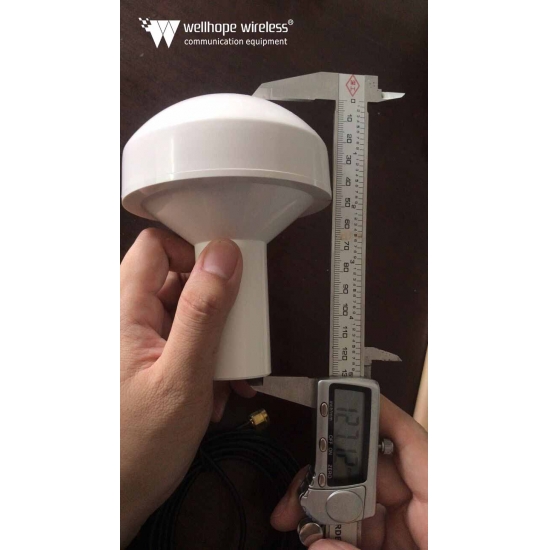

dimension:Φ94.5×73.5mm

Water proof:IP67 with O ring

Weight:158g

Operating temperature:-40℃~+85℃

Storage temperature:-50℃~+100℃

Use environment:Out door
