GSM GPS wifi unit for Tracking&Tracing applications antenna

GPS/GSM/WIFI antenna

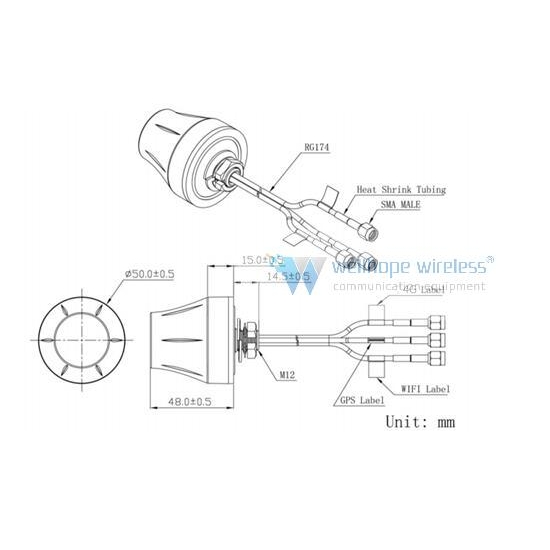

dimension Φ50×48(mm)

whwireless GSP GSM WIFI combine antenna whwireless GSP GSM WIFI combine antenna whwireless GSP GSM WIFI combine antenna

  • brand:

    whwireless
  • item no.:

    WH-GPS&GSM&WIFI
  • payment:

    T/T
  • product origin:

    china
  • color:

    black
Inquiry now
GPS part
Frequency;1575.42 MHz±3 MHz
Bandwidth;±5 MHz
VSWR;≤1.5
Gain;3dBi
Polarization Type;RHCP
Input Impedance;50Ω
LNA Gain;25±3 dB
Noise Figure;1.5 dB
Filter Out Band Attenuation;12dB Min f0+50MHz
16dB Min f0-50MHz
DC Voltage;3~5 V
DC Current;8~15 mA
GSM part
Frequency;824-849/1710-1990&850-960/1710-2200Mhz
Gain(Zenith);2±1dB@900MHz or 1±1dB@1800MHz
V.S.W.R;2.0:1
WIFI part
Frequency(MHz);2400~2500 MHz
V.S.W.R(5m);≤2.5︰1
Gain(Zenith);3 dB
Impedance;50 Ω

dimension;Φ50×48(mm)
Cable;RG174 5m or 3m
Connector;SMA
Plastic Housing;Black
Mounting;Screw
Working temperature;-40℃~+85℃
Humidity;55%~75%RH
Waterproof;IP67

Waterproof IP67

MOQ:5PCS

SPQ:100PCS/box

Ddelivery time:5working day

Payment term:T/T

Package:plastic bag and box

Paymeter method:Paypal;Wire Transfer

Customized according client require detail

Shiping way:DHL Fedex UPS OR Air FBA
