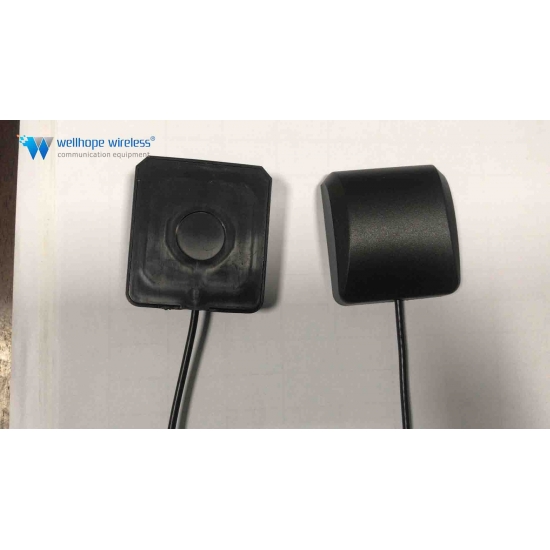

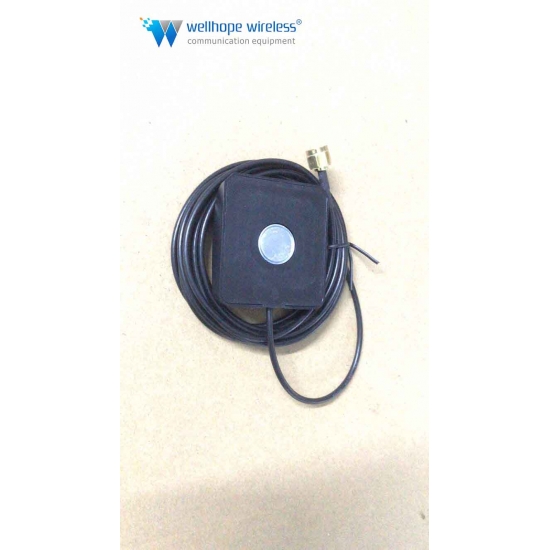

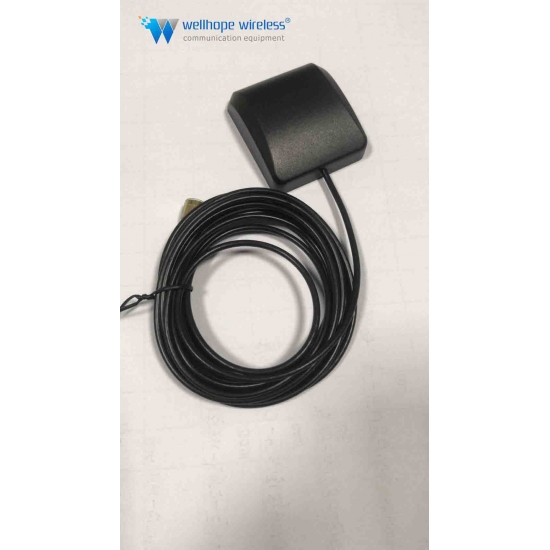

Remote control GPS Glonass &BeiDou high precision 50CM range antenna


RTK technology GPS Glonass and beidou High precision antenna
Remote control GPS Glonass &BeiDou high precision 50CM range antenna Remote control GPS Glonass &BeiDou high precision 50CM range antenna Remote control GPS Glonass &BeiDou high precision 50CM range antenna Remote control GPS Glonass &BeiDou high precision 50CM range antenna Remote control GPS Glonass &BeiDou high precision 50CM range antenna Remote control GPS Glonass &BeiDou high precision 50CM range antenna Remote control GPS Glonass &BeiDou high precision 50CM range antenna Remote control GPS Glonass &BeiDou high precision 50CM range antenna Remote control GPS Glonass &BeiDou high precision 50CM range antenna Remote control GPS Glonass &BeiDou high precision 50CM range antenna Remote control GPS Glonass &BeiDou high precision 50CM range antenna Remote control GPS Glonass &BeiDou high precision 50CM range antenna Remote control GPS Glonass &BeiDou high precision 50CM range antenna Remote control GPS Glonass &BeiDou high precision 50CM range antenna Remote control GPS Glonass &BeiDou high precision 50CM range antenna Remote control GPS Glonass &BeiDou high precision 50CM range antenna

Remote control GPS Glonass &BeiDou high precision 50CM range antenna

GPS Glonass and beidou High precision 50CM range RTK antenna
individual package GSM GPS conbine antenna waterproof IP67 waterproof IP67

  • brand:

    whwireless

  • item no.:

    WH-GNSSB-HP35

  • payment:

    T/T

  • product origin:

    china

  • color:

    black

  • lead time：

    7working day
Inquiry now WhatsApp

Antenna part:

FreqRange：GPS Glonass:L1//L5 BEIDOU:B1（1176mhz and 1561mhz-1612mhz)

Ceramic antenna：GPS  Glonass L5,（45mmx45mmx6mm)

BD2:B1 , GPS:L1 （30mmx30mmx4mm)

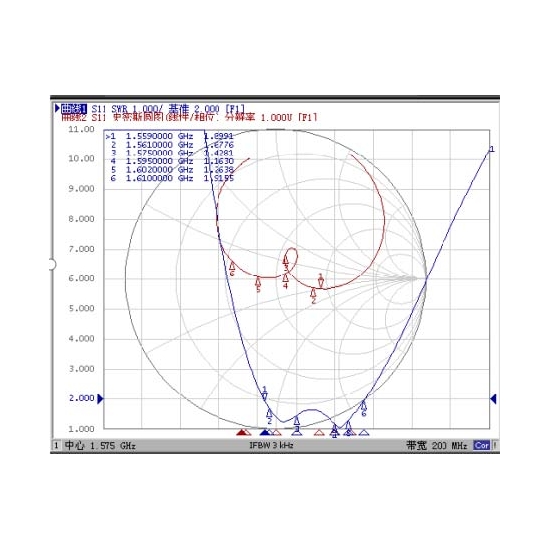

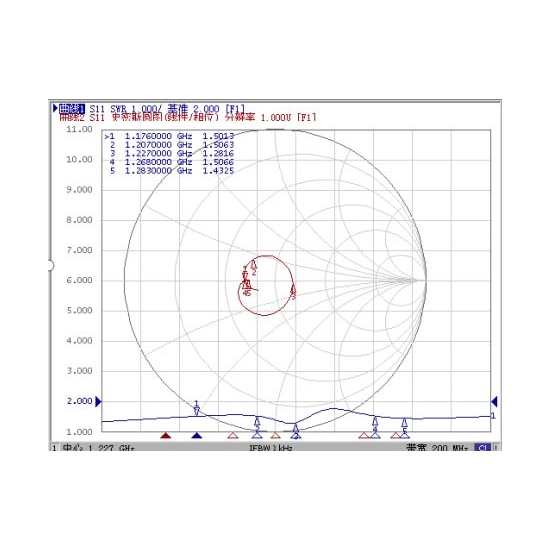

VSWR:≤1.8

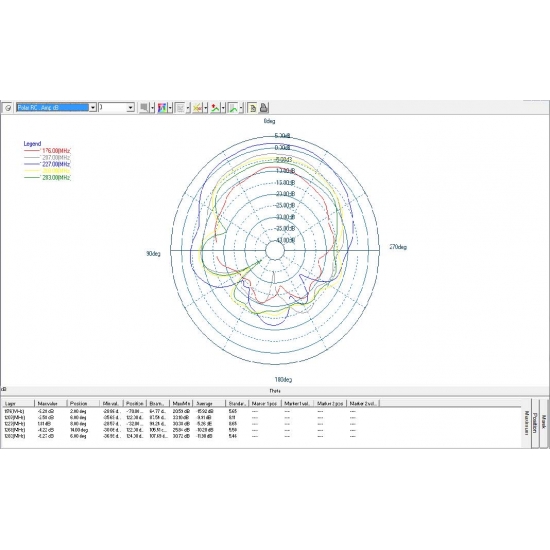

Gain：1.0dBic(1176MHz)

3.0dBic(1558～1612MHz)

at Zenith Max

Impedance：50Ω

Polarization：RHCP

Axial Ratio ：≤15dB：at Zenith

LNB part

FreqRange：GPS Glonass:L1//L5

                  BEIDOU:B1

DC Voltage ：3～5V

Gain:30±3dB

Out band Rejection(Absolute value) ：≥25dB( FH+100MHz )


                                                       ≥25dB( FL-100MHz )

Output (VSWR) ：≤1.8

Noise Figure ：≤1.8dB

DC current：10-17 mA (at3V)


Working environment

Working temperature：-40℃～+80℃

Storage Temperature：-45℃～+85℃

Humidity：95%~100%

Waterproof：IP67

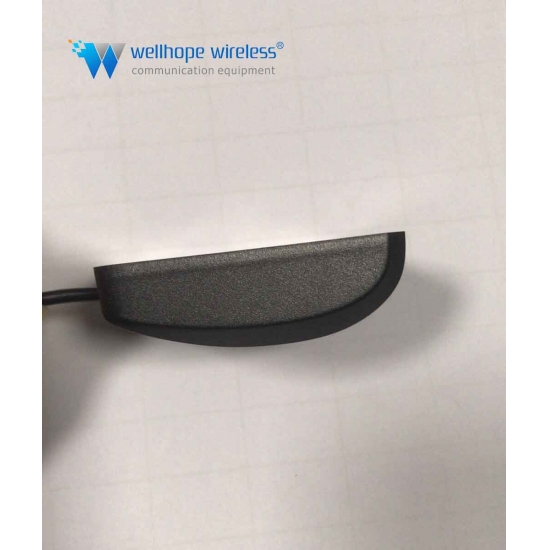

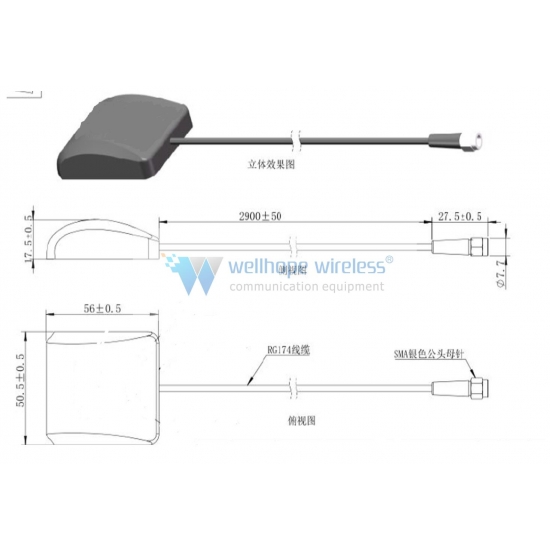

Antenna structure

Weight ：<130g

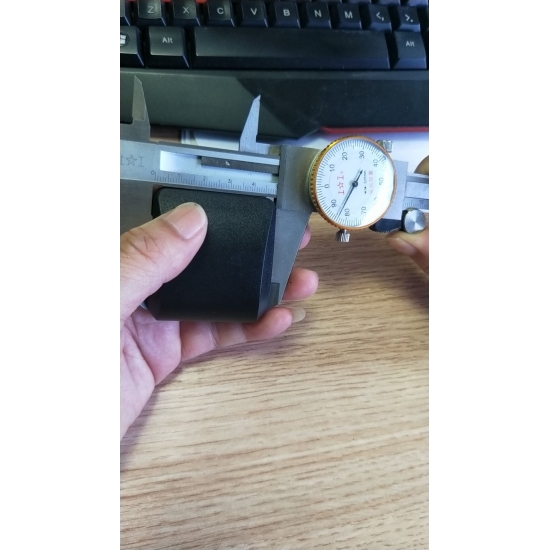

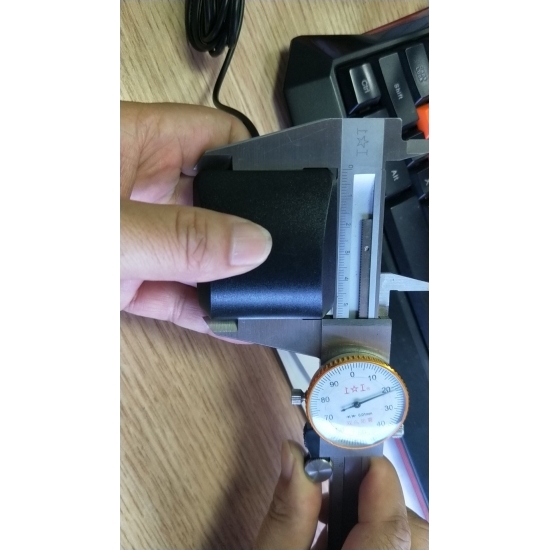

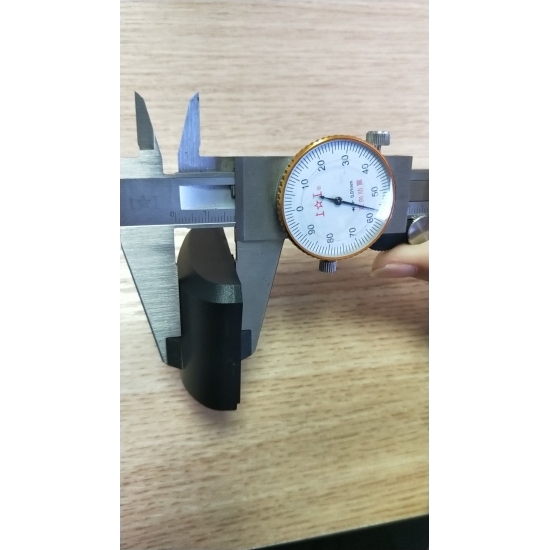

size：55X50X18mm

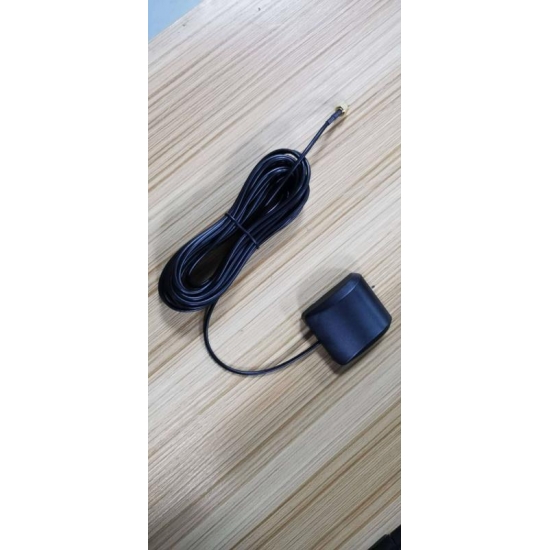

cable：RG174 3METERS

connector：SMA male or customized

Mounting：3M adhesive or magnet

Housing：ABS black colour

ESD protestion：+/- 6kv (direct discharge) and +/- 8kv (air discharge)

vibration：Sine sweep 1g(0-p)  10~55~10Hz each axis



Waterproof IP66

MOQ:5PCS

Ddelivery time:5working day

Payment term:T/T

Package:plastic bag and box

Paymeter method:Paypal;Wire Transfer
