Products

GPS Glonass antenna

  • brand:

    whwireless
  • item no.:

    WH-GNSS-H
  • payment:

    T/T
  • product origin:

    china
  • color:

    black
  • lead time:

    7working day
Inquiry now

Antenna part:

FreqRange:GPS Glonass:L1//L5 ( 1575.42mhz-1620mhz)

Ceramic antenna:GPS  Glonass L5,(38mmx36mmx16mm)

BD2:B1 , GPS:L1 (25mmx25mmx4mm)

VSWR:≤1.8

3.0dBic(1575.42~1620MHz)

at Zenith Max

Impedance:50Ω

Polarization:RHCP

Axial Ratio :≤15dB:at Zenith

LNB part

FreqRange:GPS Glonass:L1//L5

DC Voltage :3~5V

Gain:30±3dB

Out band Rejection(Absolute value) :≥25dB( FH+100MHz )


                                                       ≥25dB( FL-100MHz )

Output (VSWR) :≤1.8

Noise Figure :≤1.8dB

DC current:10-17 mA (at3V)


Working environment

Working temperature:-40℃~+80℃

Storage Temperature:-45℃~+85℃

Humidity:95%~100%

Waterproof:IP67

Antenna structure

Weight :<130g

size:38X36X16mm

cable:RG174 3METERS

connector:SMA male or customized

Mounting:3M adhesive or magnet

Housing:ABS black colour

ESD protestion:+/- 6kv (direct discharge) and +/- 8kv (air discharge)

vibration:Sine sweep 1g(0-p)  10~55~10Hz each axis



Waterproof IP67

MOQ:5PCS

Ddelivery time:5working day

Payment term:T/T

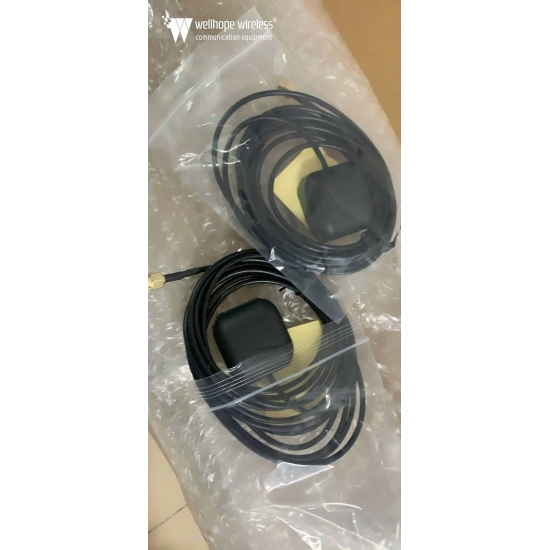

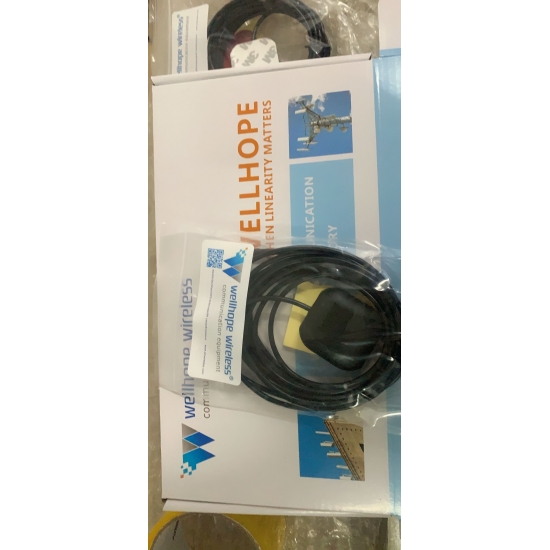

Package:plastic bag and box

Paymeter method:Paypal;Wire Transfer


Send a Message

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
