Products

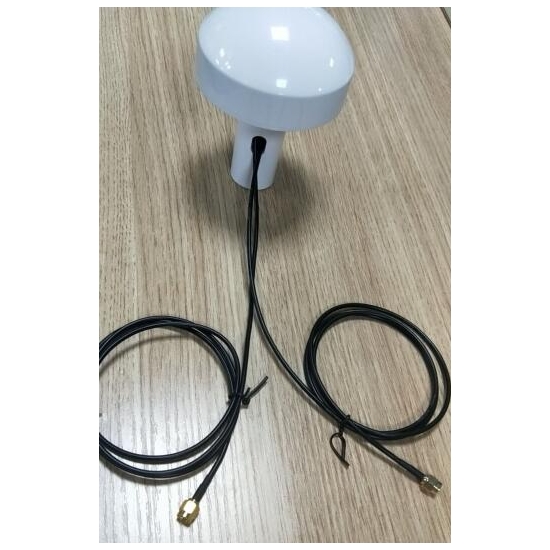

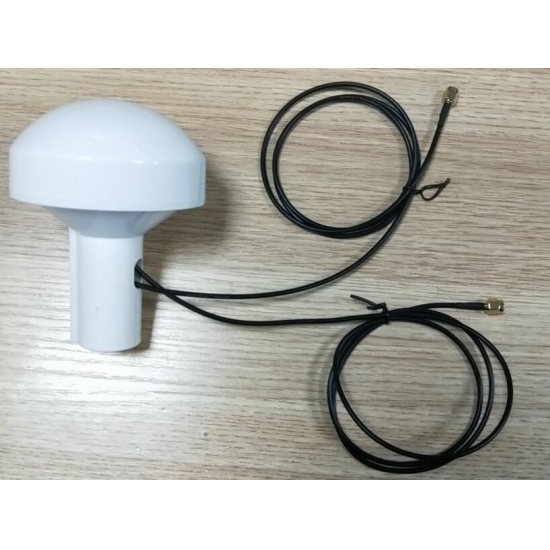

GPS 4G marine boat combine antenna

GPS 4G marine antenna

marine boat GPS 4g antenna marine boat GPS 4g antenna marine boat GPS 4g antenna

  • brand:

    whwireless
  • item no.:

    WH-GI-CX2
  • payment:

    T/T
  • product origin:

    china
  • color:

    white
  • lead time:

    5working day
Inquiry now

4G part

FreqRange:    700-960/1710-2700MHz

Gain:2dBi

Impedance:50Ω

Polarization:vertical

GPS part

Center frequence:1575.42 MHz

LNA Gain:38±2 dB

Noise Figure:1.5 dB

Filter Out Band Attenuation:12dB  Min  f0+50MHz

16dB  Min  f0-50MHz

DC Voltage:2.2~5 V / 3~5 V

DC Current:5~15 mA / 6~12 mA

Plastic Housing:White

Mounting:Screw

Weight :250gram

dimension:96X126mm

Operational Humidity:< 95

Rated Wind Velocity:36.9m/s

Radome material:ABS

Operating temperature:-4055º

Cable:RG174

Connector:SMA or others



Waterproof IP67

MOQ:2PCS

SPQ:100PCS/box

Ddelivery time:5working day

Payment term:T/T

Package:plastic bag and box

Paymeter method:Paypal;Wire Transfer

Customized according client require detail

Shiping way:DHL Fedex UPS OR Air FBA

Send a Message

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
