GPS glonass wifi 5G 4G LTE mimo 6 in 1 antenna

GPS glonass wifi 5G 4G LTE mimo 6 in 1 antenna

5G nr antenna 4G LTE antenna GNSS antenna WiFi antenna LoRa antenna

Built in X6 MIMO high power vertical antennas
5G NR WH-MIMO-04X6 is a range of high-performance 6 MiMo antennas covering 698-960/1710-3800MHz with optional GPS/GNSS and optional LTE; wifiX5 or LTEX4 or GNSS and wifi LTE X6 MiMo/Diversity at 2.4/5.0GHz.

IP67 excluding the cable outlet screw mounting RoHs

Easy install come with M22 OR M28 screw customized;IP67 waterproof design and

Between Antenna and installation cabinet come with waterproof rubber ring

brand:
whwireless
item no.:
WH-MIMO-04X6
payment:
T/T
product origin:
china
color:
black
lead time：
7working day

Inquiry now

GNSS X1
Frequency range:1561.098~1606MHz
Polarization:RHCP
Impendence:50Ω
Dimension:25X25X4mm
Gain:28±2dB
Noise Figure:1.5dB
Supply Voltage:3-5V DC
Current Consumption:<15mA

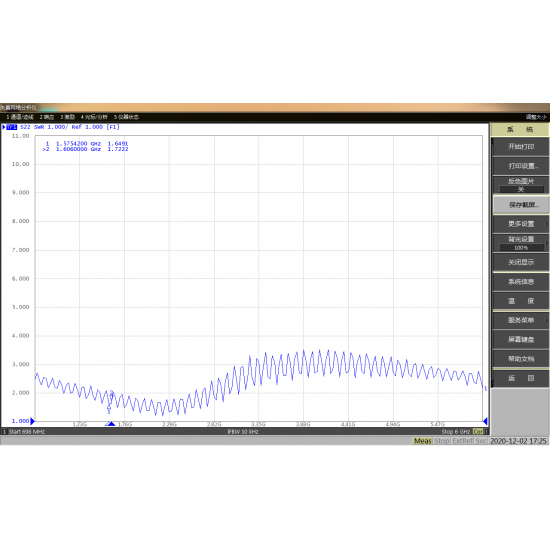

VSWR:<2.0

5G 4G MIMO X3

Frequency Range:698~960MHz/1710~2690/2900/3800MHz

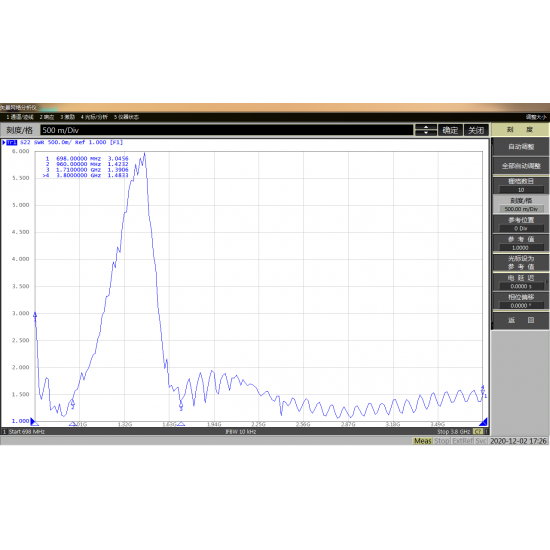

V.S.W.R:＜3.0
Polarization:Linear
Gain:4dBi

Impendence:50Ω

WIFI Antenna MIMO X2

Frequency Range:2400~2483.5MHz/4900~5925MHz

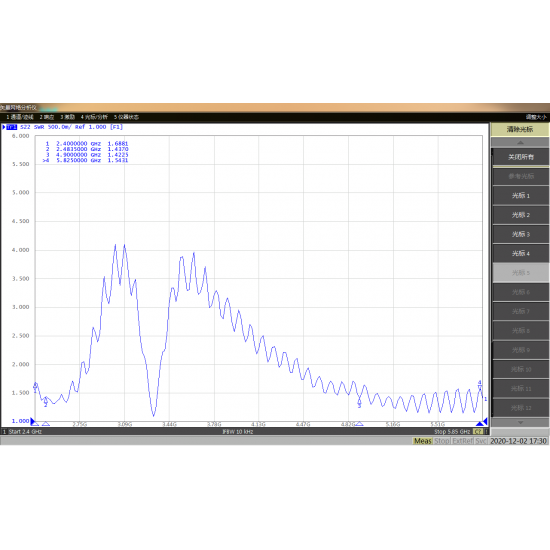

V.S.W.R:＜2.5
Polarization:Linear
Gain:4dBi
Impendence:50Ω

Mechanical

Cable:RG58 X6

Connector:SMA or customized

Radome Material:PC/ABS

Mounting:screw M28 or M22

Environmental

Operating Temperature:-40℃~+85℃

Relative Humidity:Up to 95%

Ingress Protection:IP67 (exclude cable outlet)

Vibration:10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly:ROHS Compliant

Waterproof IP67(exclude cable outlet)

MOQ:5PCS

Ddelivery time:7working day

Payment term:T/T

Package:plastic bag and box
