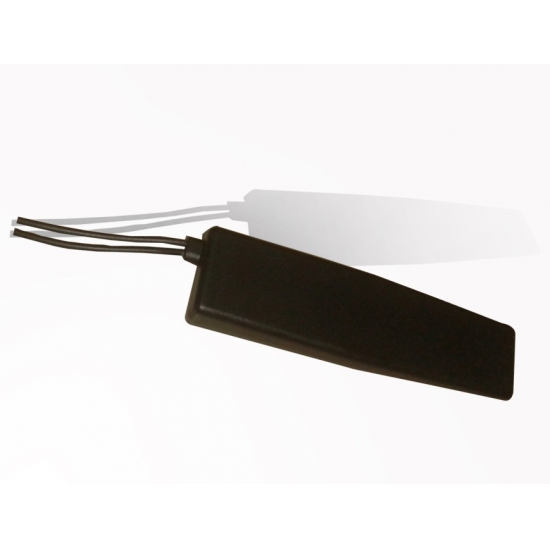

combine GPS GSM wifi antenna


combine GPS GSM wifi antenna WH-GPUW
combine GPS GSM wifi antenna combine GPS GSM wifi antenna

combine GPS GSM wifi antenna

  • SMA male
  • 120mmX34mmX15mm;GPS GSM WIFI combine antnena

  • brand:

    whwireless

  • item no.:

    WH-GPUW
Inquiry now

GPS

Frequency range:1575.42MHz


bandwidth:±3 MHz

VSWR:≤1.5

LNA Gain:28dBi

Polarization:RHCP

GSM;UMTS

Frequency range:824MHz~894MHz(AMPS) 880 MHz~960MHz(GSM) 1710MHz~1990MHz;2100MHz(UMTS)


VSWR:≤1.5

Gain:3dBi

Polarization:vertical

Input impedance:50Ω

WIFI

Frequency range:2400-2483MHz


bandwidth:83 MHz

VSWR:≤1.5

Gain:3dBi

Polarization:vertical
Connector:SMA male

Cable:RG174; 3meter

Length:120mmX34mmX15mm

Weight:110(g)
