5G/4G WLAN GNSS DVBT multi-port combination antenna

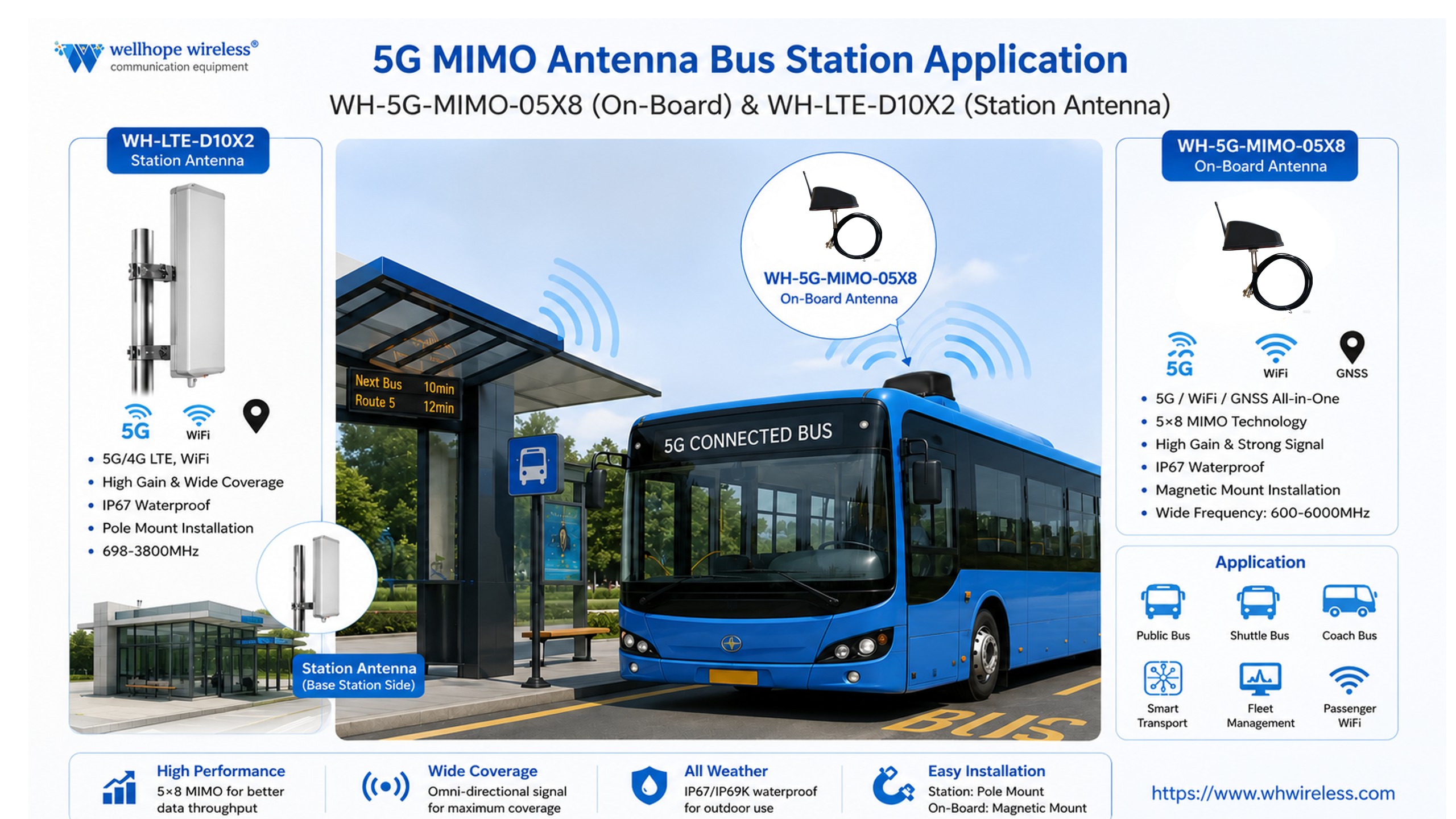

In bus stations, 5G/4G WLAN GNSS DVBT multi-port combination antennas play a crucial role in enhancing communication. The WH - LTE - D10X2 is a 5G panel antenna. It operates on the 5G frequency and is mounted via a U - bolt with N female X2 connectors. This type of antenna is ideal for providing stable 5G and 4G connectivity to fixed infrastructure in and around the bus station, ensuring seamless communication for operations management systems.

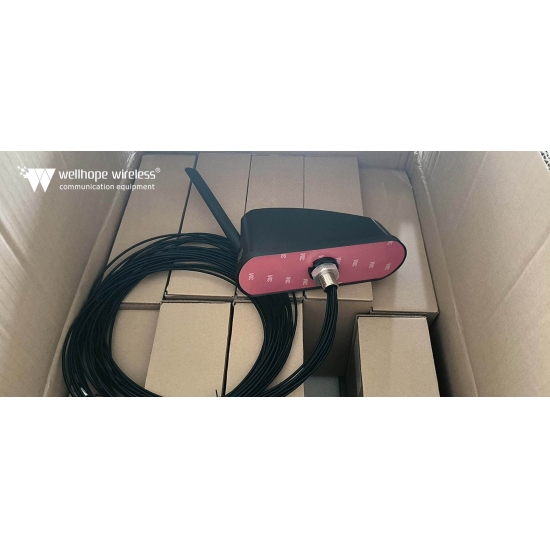

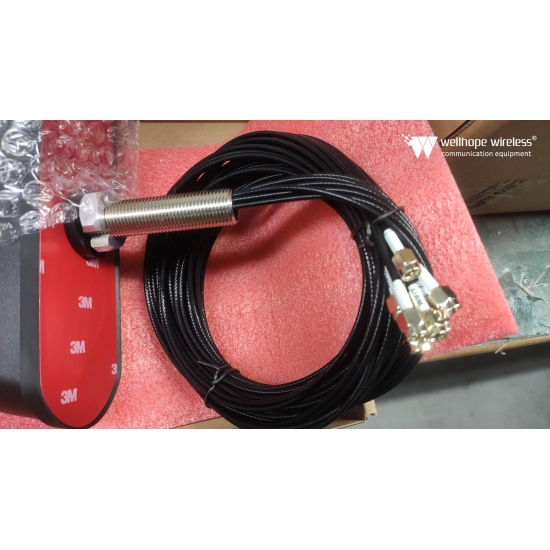

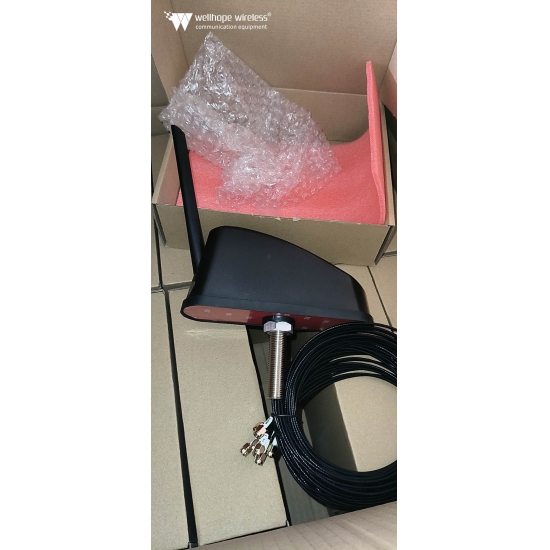

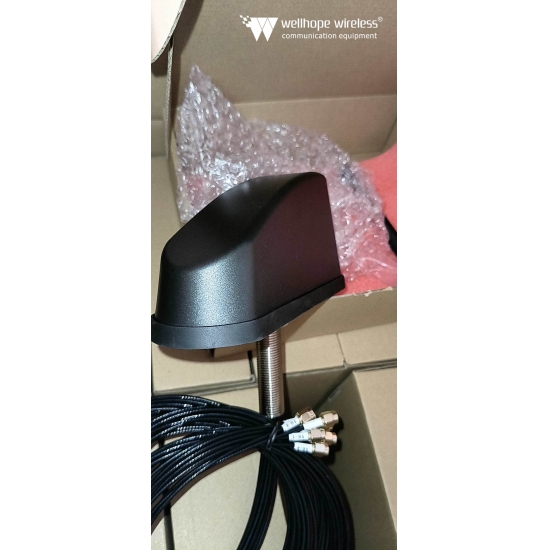

The WH-5G-MIMO-05X8 is a 5G MIMO antenna. It supports 5G, WiFi, GNSS, and DVBT frequencies. With a mounting method of screw + adhesive, dimensions of 175X78X59MM, and IP67 waterproof rating, it's suitable for installation on buses or other mobile vehicles. The eight SMA male connectors and RG316x8 cables enable efficient signal transmission. These antennas together facilitate high - speed data transfer, reliable positioning (thanks to GNSS), and smooth communication for buses and station - based systems.

The antenna WH-5G-MIMO-05X8 is a nine port antenna with two elements designed to cover the 617-6000MHz

cellular bands, two elements designed to cover the 2.4-2.5 and 4.9-6 GHz WLAN bands and  one GNSS element.

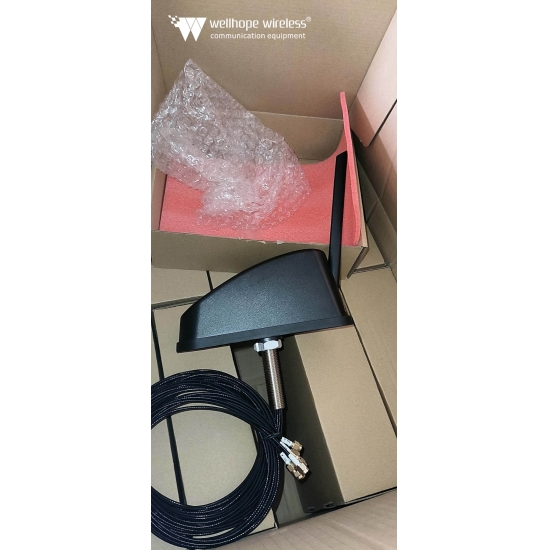

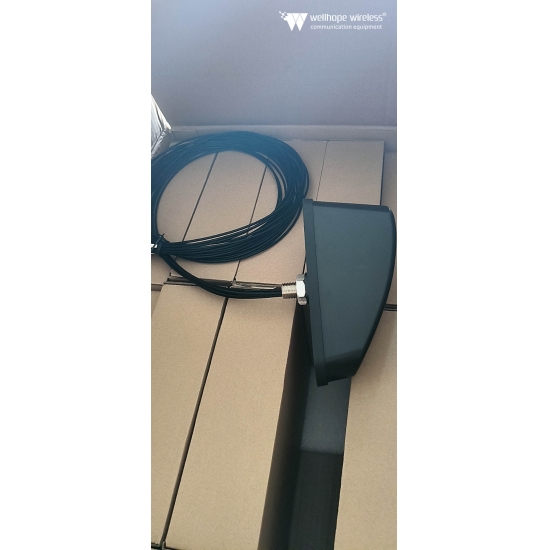

The antenna can be mounted on the roof of a vehicle or fixed structure.

The antenna meets or exceeds a variety of environmental ruggedization specifications for transportation applications.

This antenna is an omni-directional heavy-duty, fully IP67 waterproof external M2M antenna for

use in  telematics, transportation and remote monitoring applications.

The antenna has its own ground-plane and can radiate on any mounting environment like metal or plastic without affecting performance.

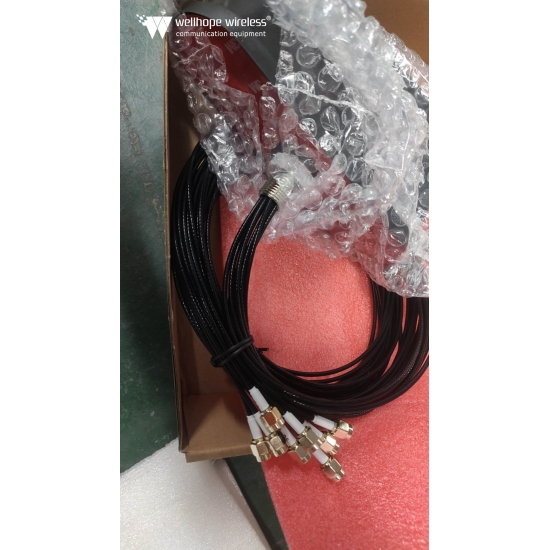

The cables are low loss allowing for lengths of up to 10 meters , critical for buses, trains and other commercial transport applications.Customized cables and connectorversion available
