7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA


7-in-1 5G COMBO MIMO MOBILE GNSS WIFI ROOF ANTENNA
7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA 7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA

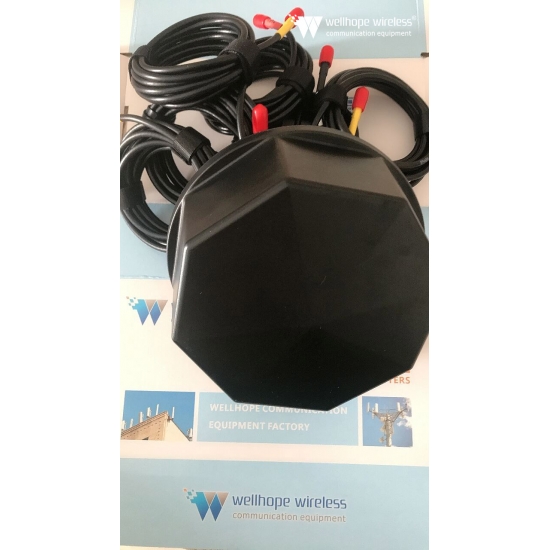

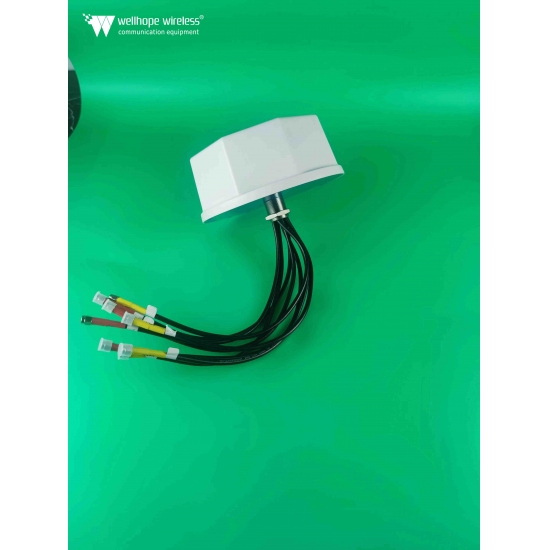

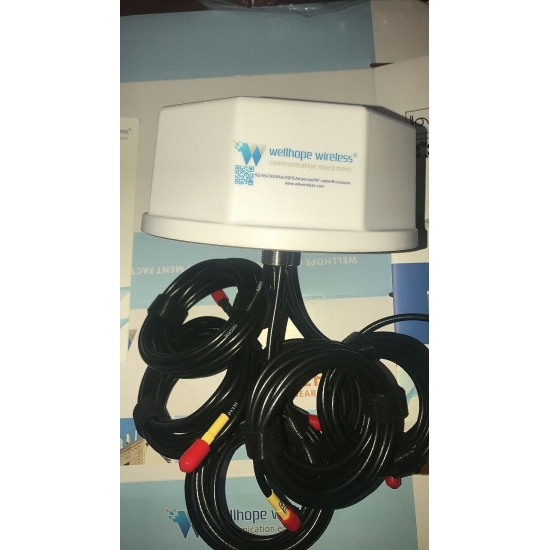

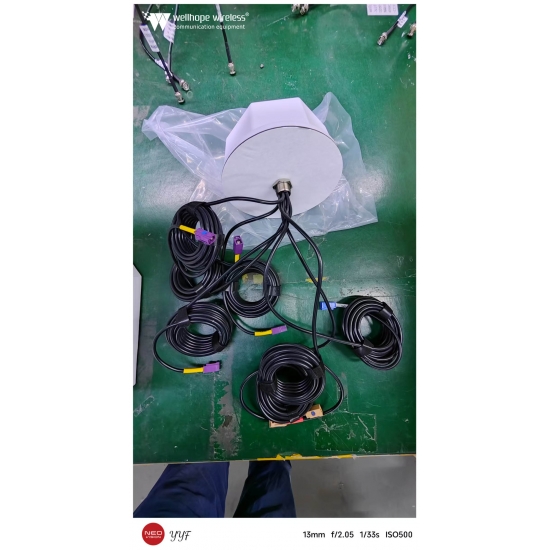

7-in-1 5G COMBO MIMO MOBILE/GNSS/WI-FI ROOF SMA Fakra ANTENNA

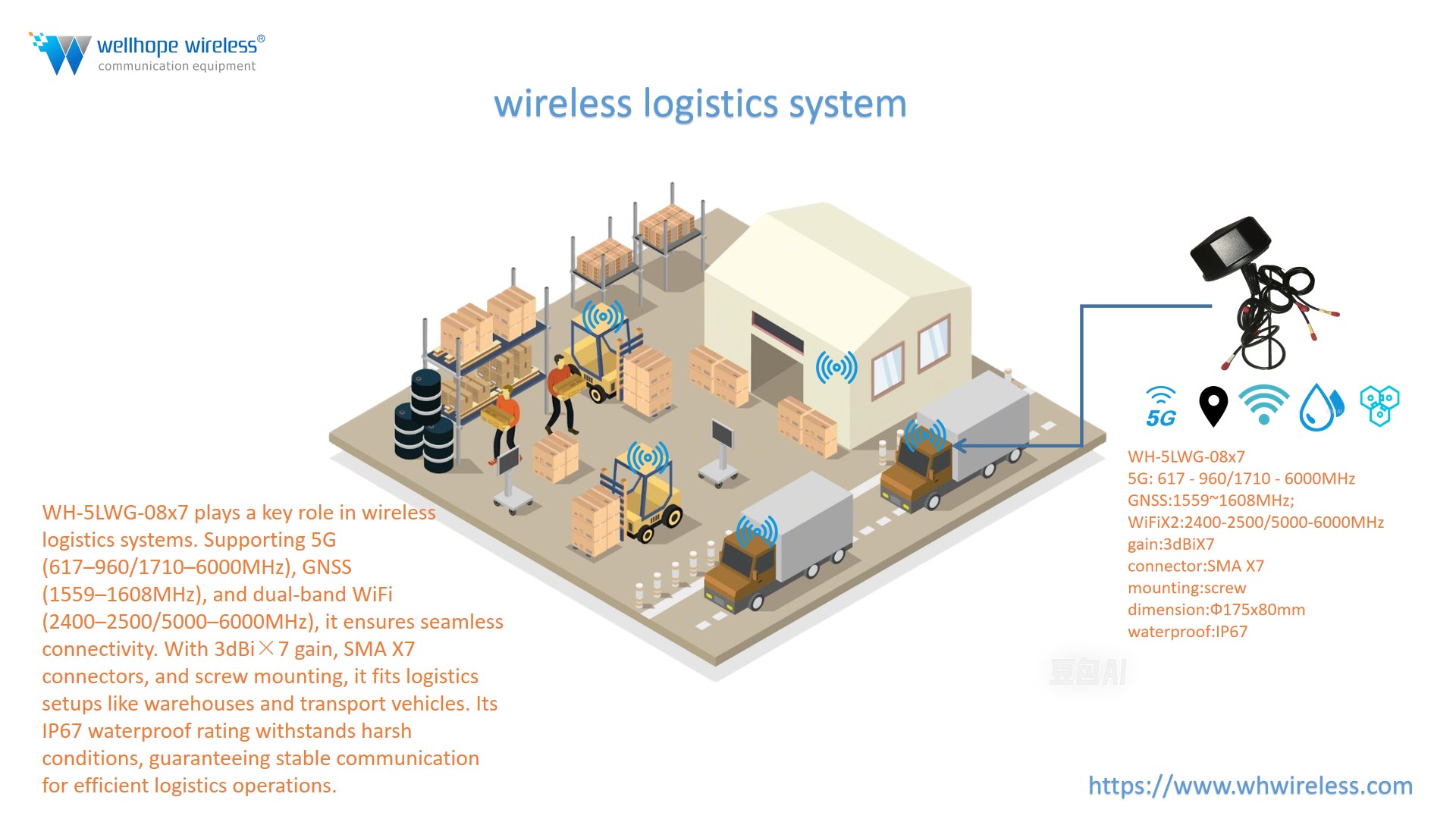

WHWIRELESS Combination antenna WH-5LWG-08x7 serves as a pivotal device in wireless logistics systems, empowering seamless connectivity across supply chain operations. Supporting 5G (617–960/1710–6000MHz), it enables high-speed data transmission for real-time inventory tracking, order management, and fleet coordination. The GNSS (1559–1608MHz) function ensures precise positioning, optimizing route planning and vehicle monitoring. Dual-band WiFi (2400–2500/5000–6000MHz) establishes robust network coverage in warehouses, connecting forklifts, sensors, and surveillance systems for efficient material handling. With 3dBi×7 gain, it strengthens signal stability, while SMA X7 connectors and screw mounting allow flexible installation on vehicles or infrastructure. The IP67 waterproof rating makes it durable in harsh environments, whether exposed to rain during transport or moisture in storage. By integrating these features, WH-5LWG-08x7 enhances logistics efficiency, enabling reliable wireless communication to unify warehouse management, transportation, and supply chain workflows.

  • brand:

    whwireless

  • item no.:

    WH-5LWG-08x7

  • payment:

    T/T

  • product origin:

    china

  • color:

    black

  • lead time：

    7working day
Inquiry now

GNSSX1

Frequency range:1559~1608MHz

V.S.W.R:＜1.5

Polarization:RHCP

Gain:28±2dB

Impedance:50Ω

Ex-band Attenuation:12dB@CF+50MHz/16dB@CF-50MHz

Noise Figure:1.5dB

Voltage:2.7/3.0/3.3/5.0/3.0 to 5.0 etc DC

Current:11mA

Connector:SMA femalex1

5G LTE X4

Frequency Range:617/960/1710/2700/3300/5900MHz

V.S.W.R:＜3.0

Polarization:Linear

Gain:3/5dBi

Impendence:50Ω

Connector:SMA femalex2

WIFI Antenna X2

Frequency Range:2400-2500/4900-6000MHz

V.S.W.R:＜2.0

Polarization:Vertical

Gain:3/5dBi

Impendence:50Ω

Connector:SMA malex2

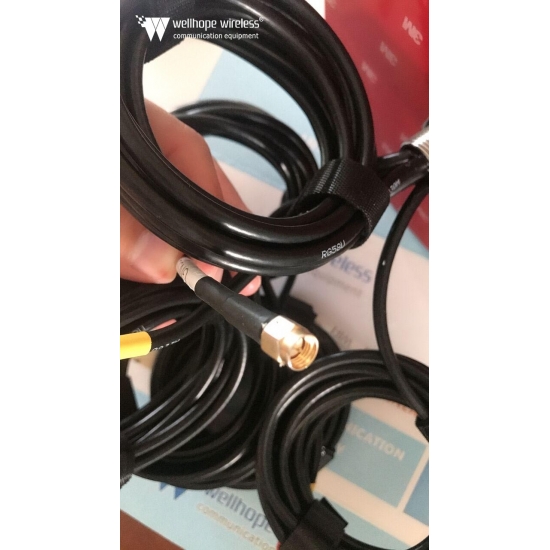

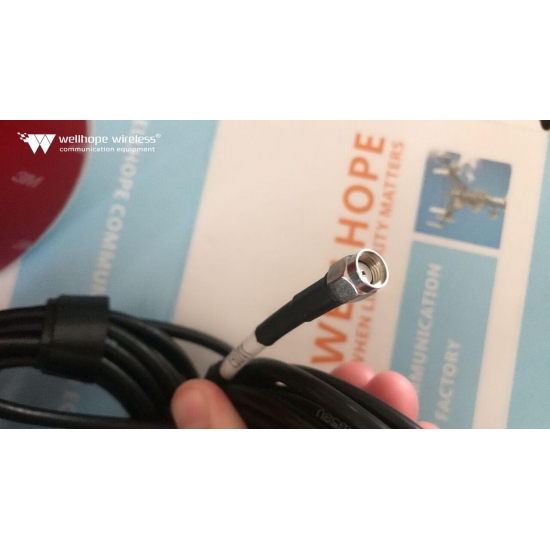

Cable:RG174 31CM X7

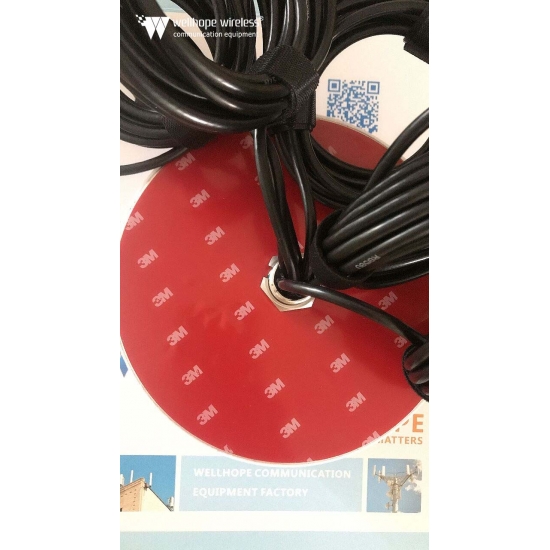

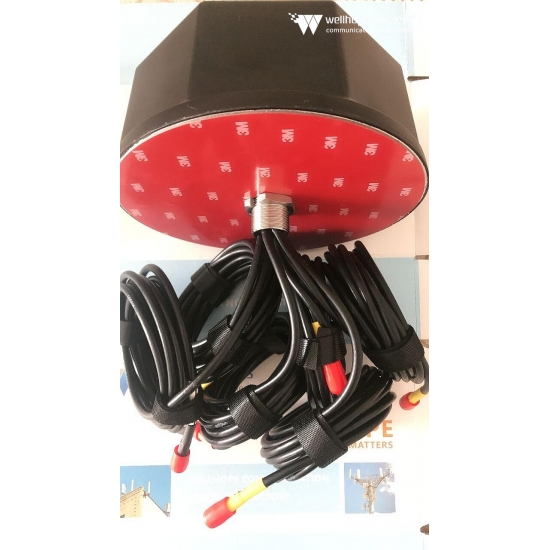

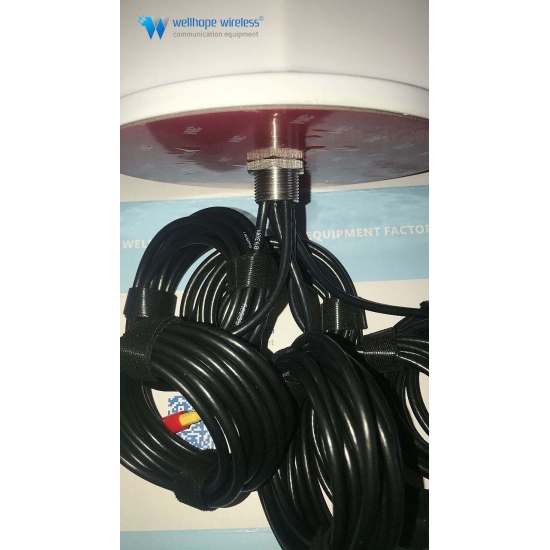

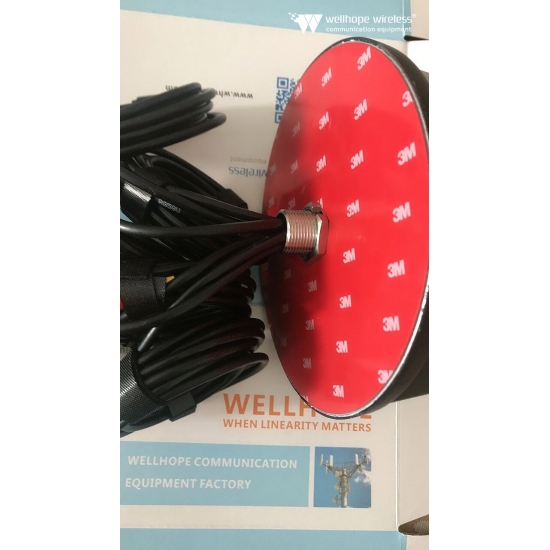

Screw:M20X1.0thickness/18MM long

Connector:SMA x7 or Customozed

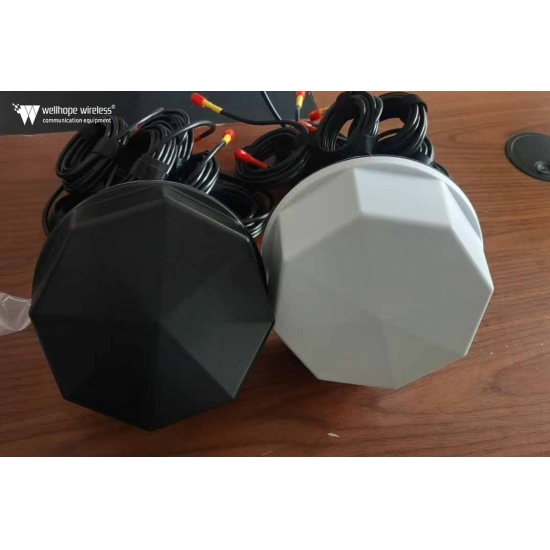

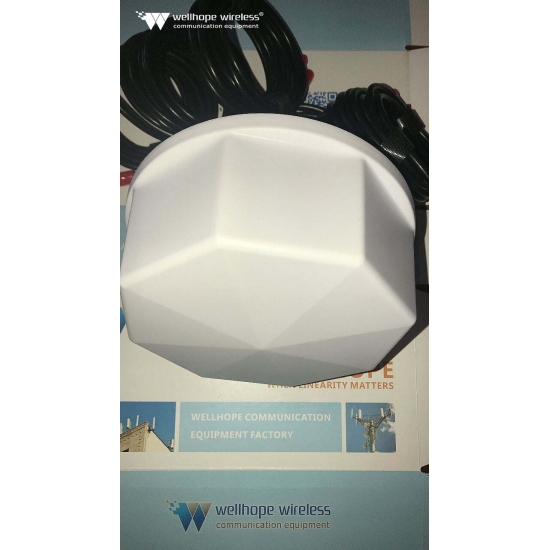

Radome Material:ABS

Operating Temperature:-40℃~+85℃

Relative  Humidity:Up to 95%

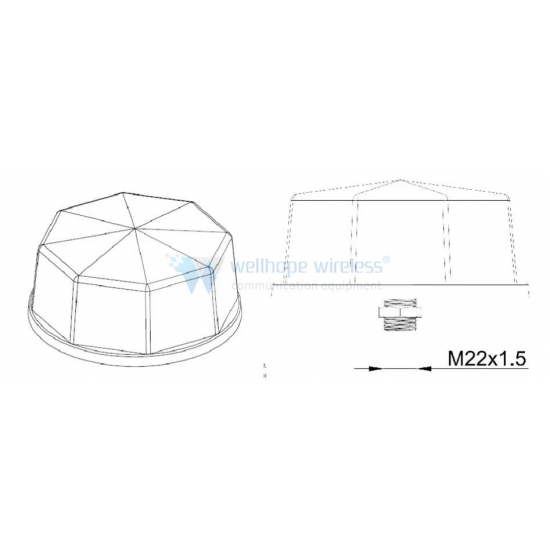

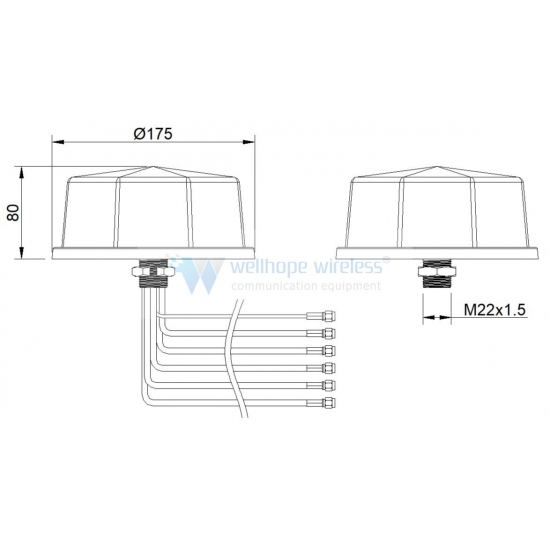

Antenna dimension:Ф175×80mm

Ingress  Protection:IP67 (exclude cable outlet)

weight:0.5KG
