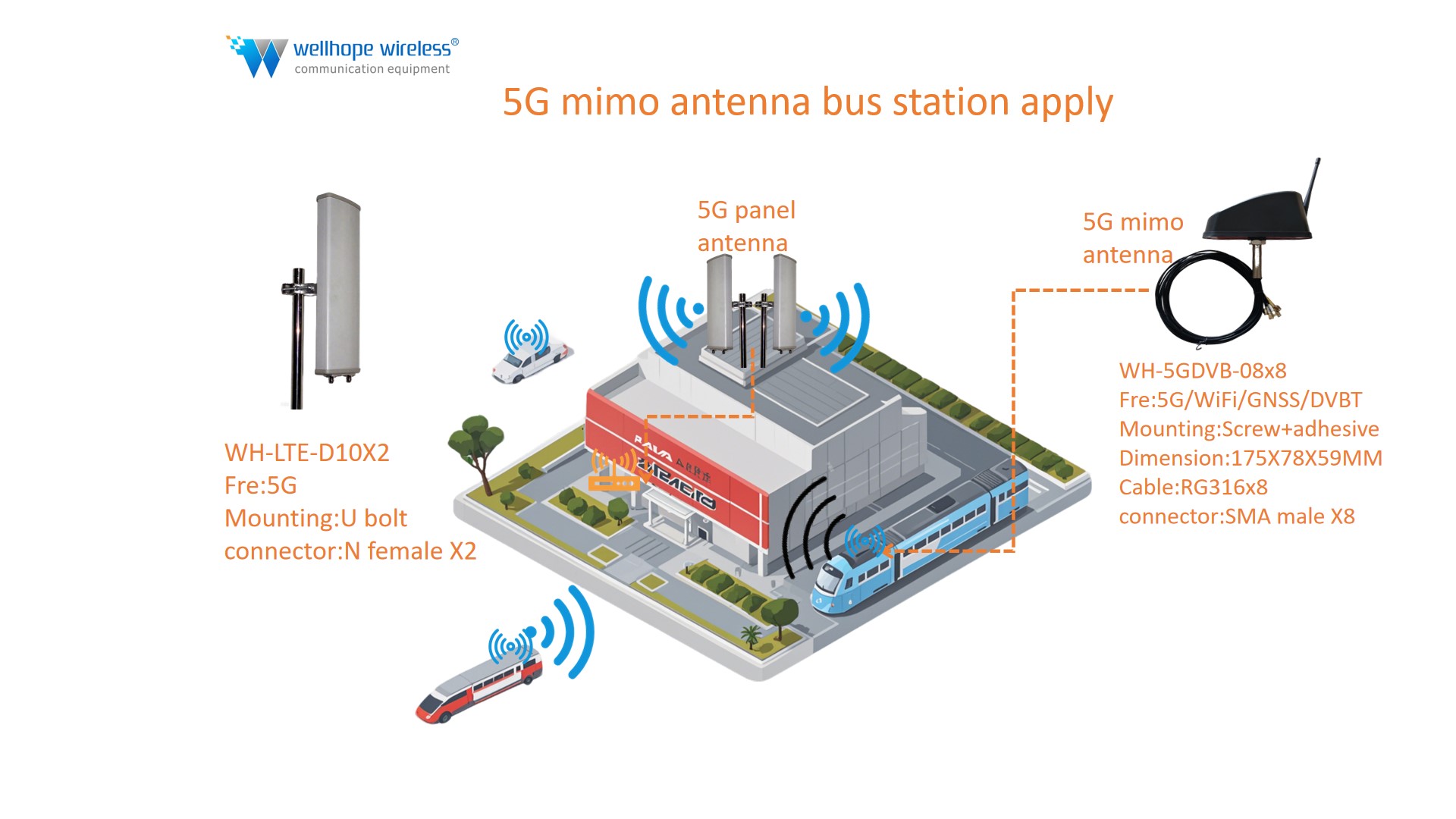

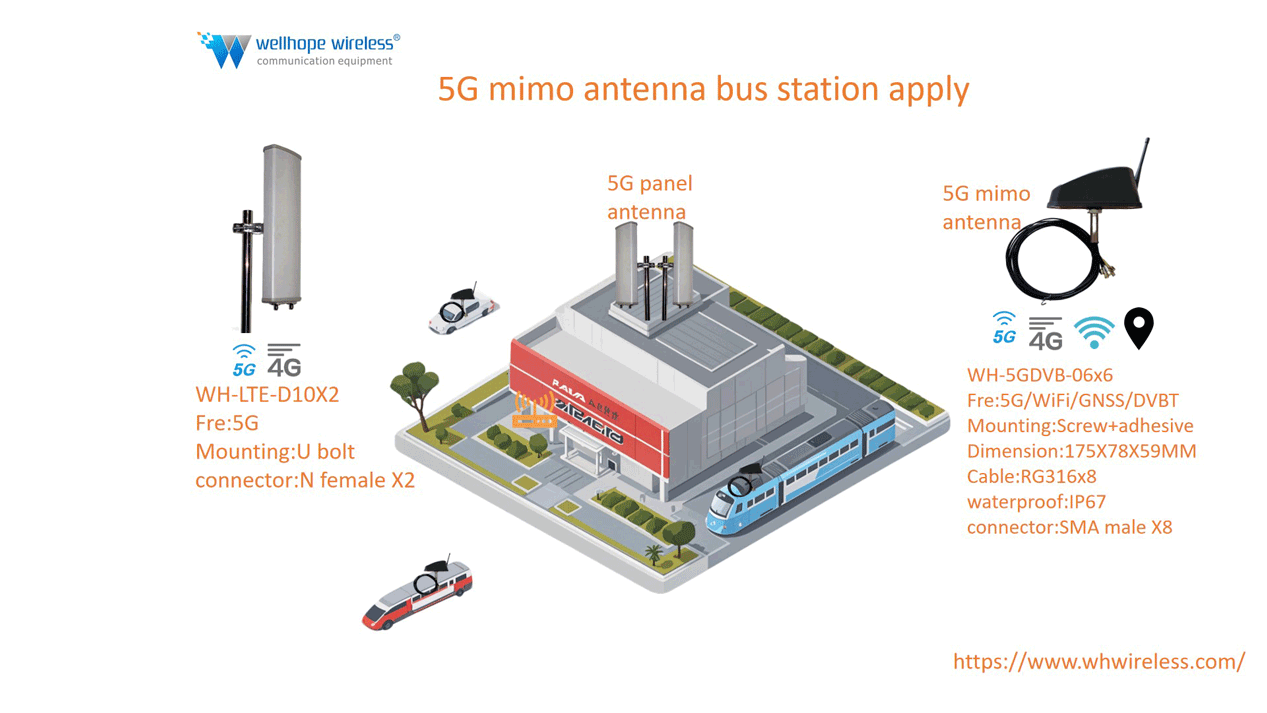

In a bus station setting, WH-5GDVB-08x8 work together to improve 5G network coverage. The 5G MIMO antenna can enhance the capacity and data rate through its multiple - input - multiple - output technology, while the 5G panel antenna can provide focused and directional coverage, ensuring that buses, passengers, and station - based systems can enjoy reliable and high - speed 5G communication for various applications.

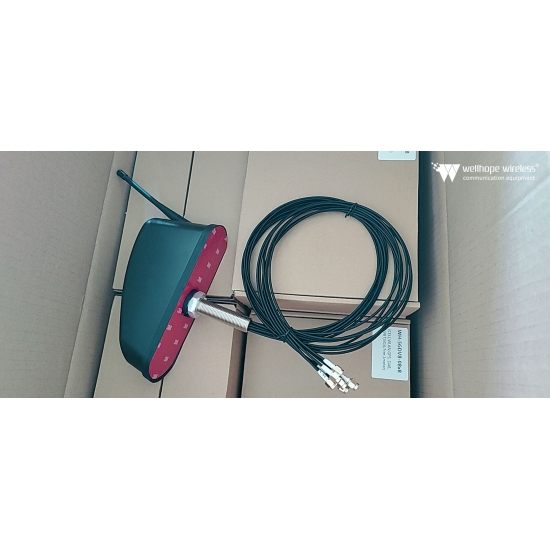

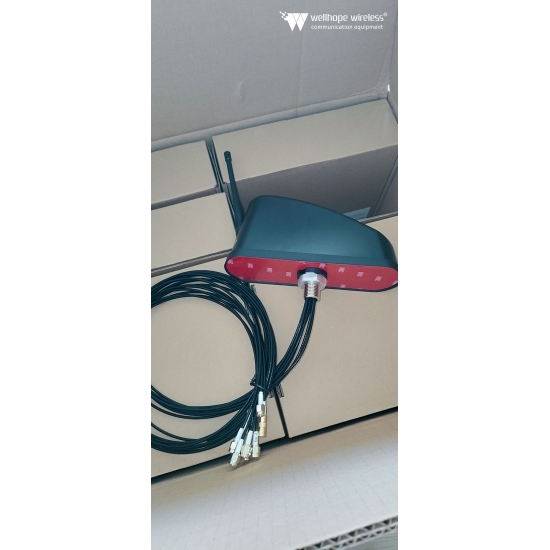

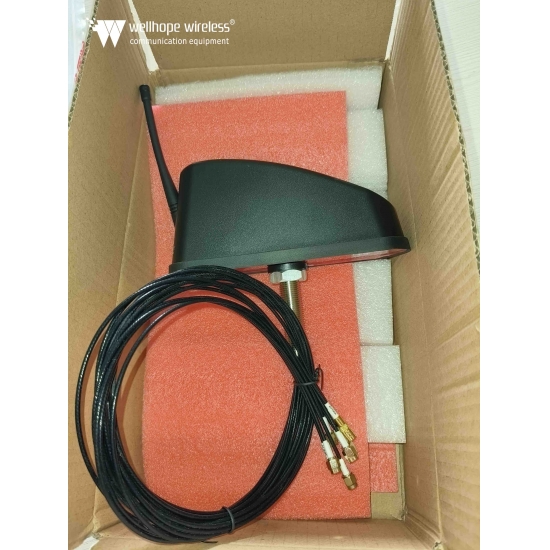

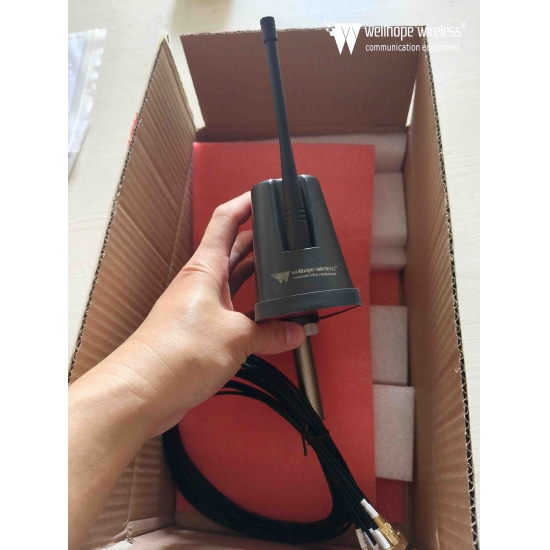

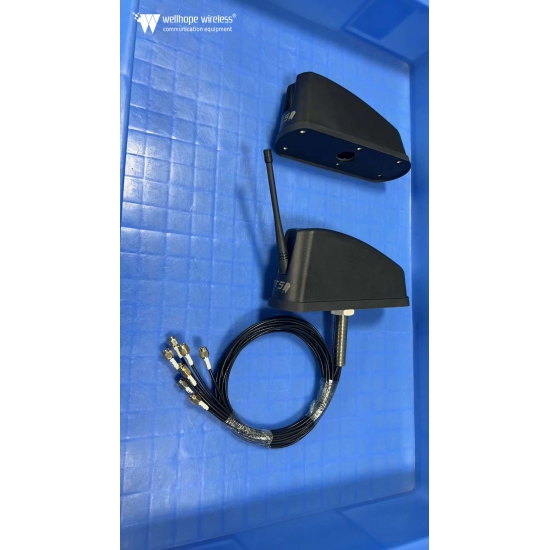

The antenna is a nine port antenna with two elements designed to cover the 617-6000MHz
cellular bands, two elements designed to cover the 2.4-2.5 and 4.9-6 GHz WLAN and DVBT
bands and one GNSS element.
The antenna can be mounted on the roof of a vehicle or fixed structure.
The antenna meets or exceeds a variety of environmental ruggedization specifications for transportation applications.
This antenna is an omni-directional heavy-duty, fully IP67 waterproof external M2M antenna for
use in telematics, transportation and remote monitoring applications.
The antenna has its own ground-plane and can radiate on any mounting environment like metal or plastic without affecting performance.

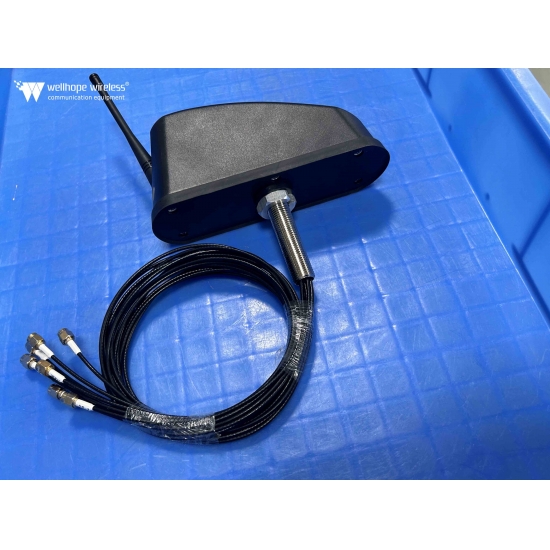

The cables are low loss allowing for lengths of up to 4 meters , critical for buses, trains and other commercial transport applications.Customized cables and connectorversion available
brand:
whwirelessitem no.:
WH-5GDVB-08x8payment:
T/Tproduct origin:
chinacolor:
blacklead time：
7working dayGNSSX1
Frequency range:1559~1608MHz
V.S.W.R:＜1.5
Polarization:RHCP
Gain:28±2dB
Impedance:50Ω
Ex-band Attenuation:12dB@CF+50MHz/16dB@CF-50MHz
Noise Figure:1.5dB
Voltage:2.7/3.0/3.3/5.0/3.0 to 5.0 etc DC
Current:11mA
Connector:SMA femalex1
5G X4
Frequency Range:600/960/1710/2700/3300/4800/6000MHz
V.S.W.R:＜3.0
Polarization:Linear
Gain:3/5dBi
Impendence:50Ω
Connector:SMA femalex2
WIFI Antenna X2
Frequency Range:2400-2500/4900-6000MHz
V.S.W.R:＜2.0
Polarization:Vertical
Gain:3/5dBi
Impendence:50Ω
Connector:SMA malex2
DAB++x1
Frequency Range:174 - 237MHz
voltage:5v
currence:14 - 28 mA
cable type:RG174
cable length：2meter
DVBT
Frequency Range:470 - 690 MHz
voltage:5v
currence:14 - 28 mA
cable type:RG174
cable length：2meter
Cable:RG316 100CM X6
Screw:M16X25MM long
Connector:SMA or Customozed

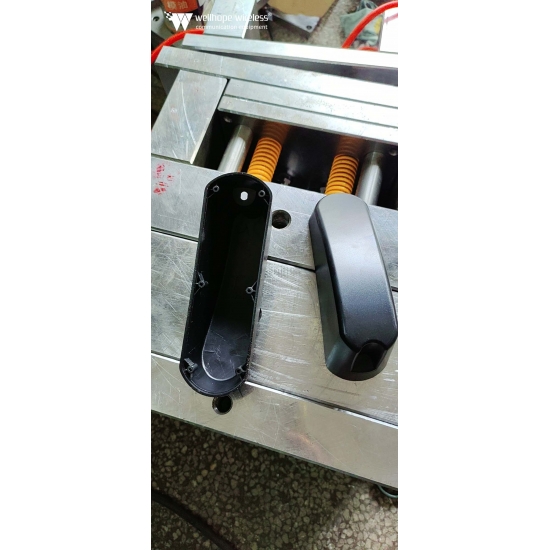

Radome Material:ABS
Operating Temperature:-40℃~+85℃
Relative Humidity:Up to 95%
Antenna dimension:175×78x59mm
Waterproof:IP67 (exclude cable outlet)
Weight:0.45KG
