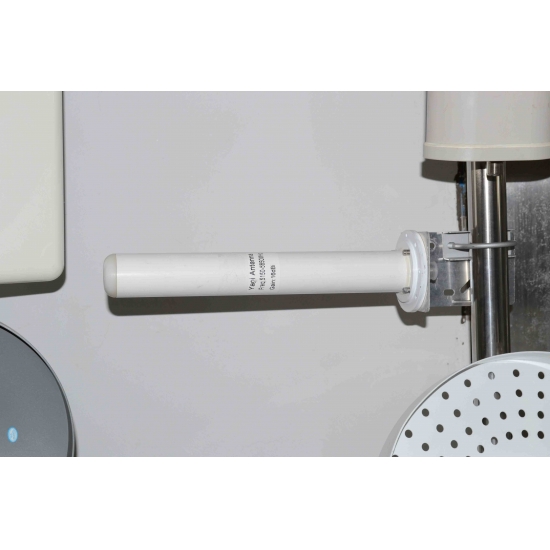

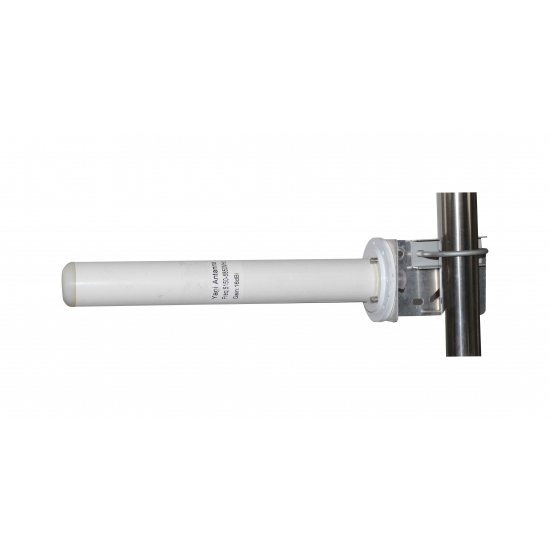

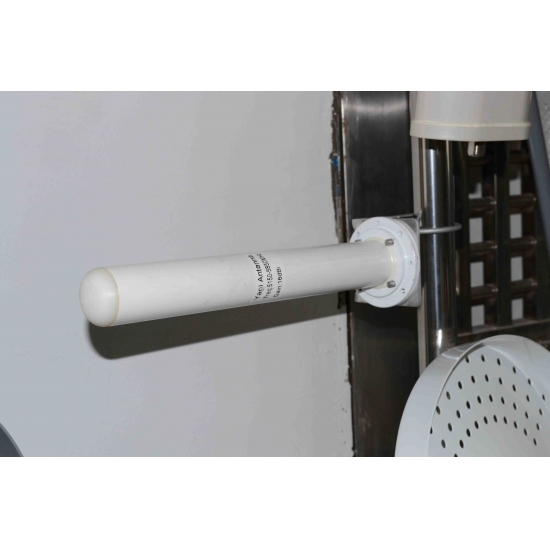

wlan Yagi Antenna,Wifi Covered Yagi Antenna 16dBi

wlan Yagi Antenna,Wifi Covered Yagi Antenna 16dBi

apply to lprs 2.4GHz wireless solution 2400MHZ~2483MHz,16dbi,Φ80X450mm
wlan,wifi antenna,outdoor yagi antenna

brand:
whwireless
item no.:
WH-2.4GHz-Y16

Inquiry now WhatsApp

Frequency range:2400MHZ~2483MHz
Gain:16dbi
Horizontal Beam width:35°
Vertical Beam width:35°
VSWR:≤1.5
Input impedance:50Ω
Polarization:Vertical or Horizontal
Max Power:50W

Connector:N-K
The thunder and lightning protecting:Direct-Current grounding
Antenna Dimension:Φ80X450mm
Resist the intensity of wind:60M/S
Weight :1.3KG

• Wireless Lan
• 2.4 Ghz vendidos
• Wireless CPE Wireless Controller
• Wireless Mesh AP
• Wireless P2P Alarm wireless operation
• Mobile Alarm Protection Wireless Security
• outdoor 802.11b/g Wireless Access Point
• Point to Point Long Range Microwave Radios Flex I/O
• Wireless Tank Telemetry ; wireless remote module
• Wireless video/audio senders/receiver; wireless RoIP
