Products

wlan cabinet 2400MHz antenna

cabinet wlan antenna

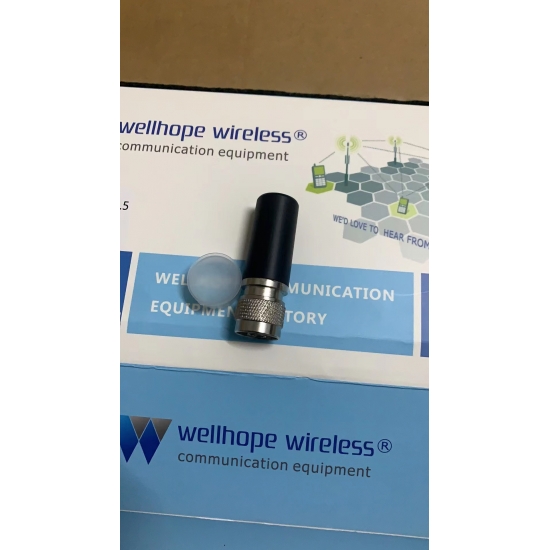

whwireless antenna model WH-2400-03 apply to the outdoor gateway mounting on control cabinet;

come with N male;3dBi 2400MHz small dimension φ19X60mm

  • brand:

    whwireless
  • item no.:

    WH-2400-03
  • payment:

    T/T,Alipay,WeChat Pay,Paypal
  • product origin:

    china
  • color:

    black
  • lead time:

    3working day

Frequency Range:2400-2483MHz
Gain:3dBi

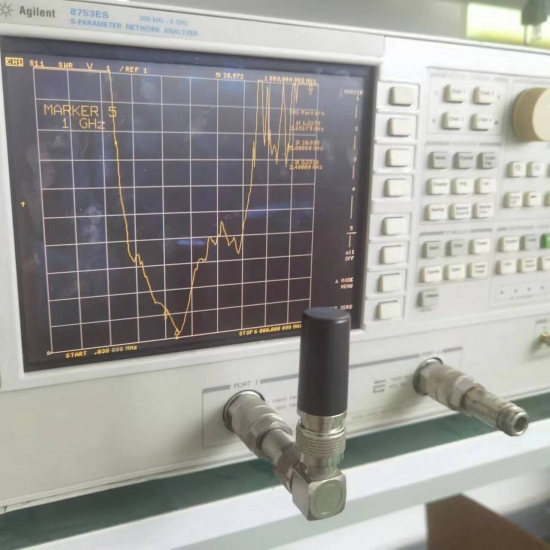

VSWR:≤1.5
Out of Roundness:<3 dB
Horizontal Beamwidth:360°
Vertical Beamwidth:20°
Polarization:Vertical
Impedance:50
Maximum input:50W

Working Temperature:-40℃~﹢65℃

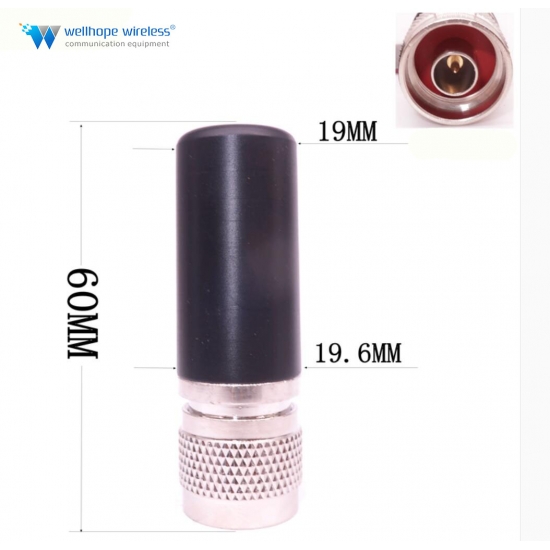

Dimension(mm):Φ19×60 mm
Weight(Kg):0.1KG

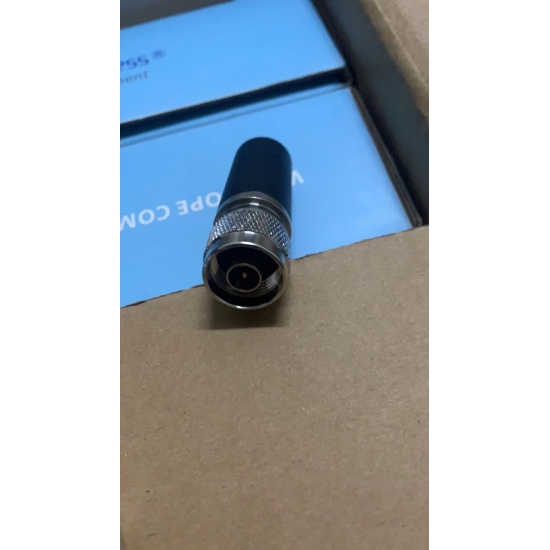

Antenna connector:N male
Antenna cover material:PVC
Waterproof :IP67
Color:black
