2dbi;10x10x4mm GPS ceramic patch antenna


GPS Dielectric antenna WH-GPS-S10
2dbi;10x10x4mm GPS ceramic patch antenna 2dbi;10x10x4mm GPS ceramic patch antenna 2dbi;10x10x4mm GPS ceramic patch antenna 2dbi;10x10x4mm GPS ceramic patch antenna 2dbi;10x10x4mm GPS ceramic patch antenna 2dbi;10x10x4mm GPS ceramic patch antenna

2dbi;10x10x4mm GPS ceramic patch antenna

GPS PCB antenna GPS chip antenna GPS chip antenna

GPS ceramic antenna with a part number of WH-GPS-S10 from WHWireless Our high-quality GPS ceramic antenna is available in this part number and is designed for Global Positioning System (GPS) applications operating at 1575.42MHz. Featuring a compact 10x10x4mm size, it's the perfect choice for applications where space is limited.

Despite its small size, our GPS ceramic antenna with part number WH-GPS-S10 offers excellent performance and durability, making it a reliable choice for your navigation needs. Its rugged construction ensures long-lasting performance, and its lightweight design helps to minimize the overall weight of your device.



  • brand:

    whwireless

  • item no.:

    WH-GPS-S10

  • payment:

    T/T

  • product origin:

    china

  • color:

    white

  • lead time：

    2working day
Inquiry now
Frequency range:1575.42 MHz±3 MHz
VSWR:≤1.5
Gain:2dBi
Input impedance:50Ω
Polarization Type:RHCP

Working Termp:-40℃~+85℃
Humidity:5%~75%RH
Waterproof:IP67

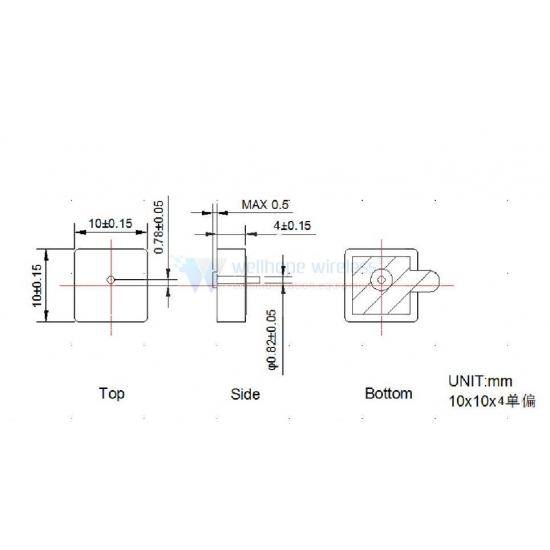

Dimension:10x10x4mm
