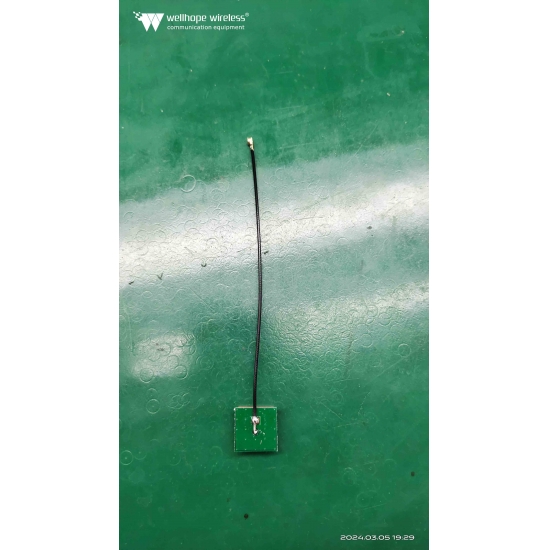

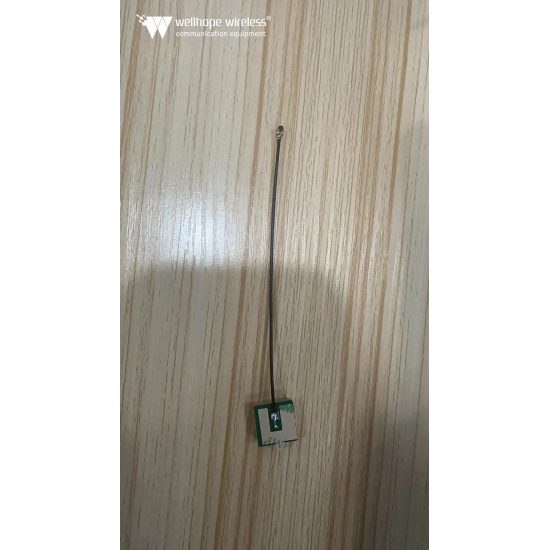

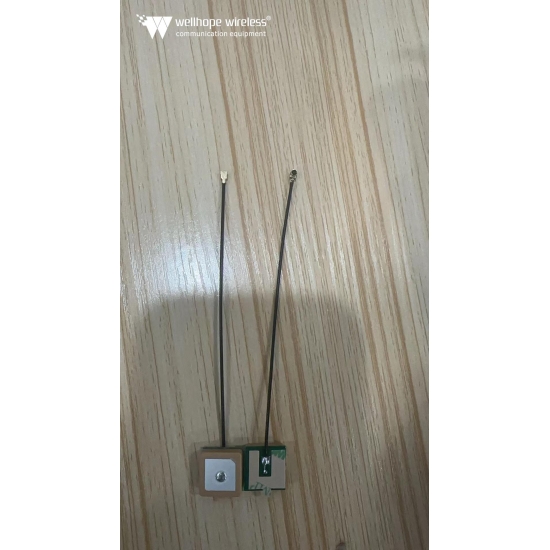

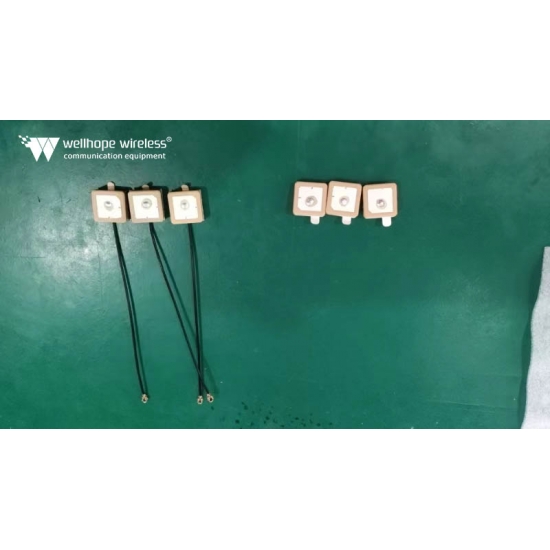

The WH-GNSS-Q15 antenna from whwireless is a next-generation ceramic antenna designed for GPS/GNSS1575.42+1602.56MHz applications. This antenna boasts exceptional stability and sensitivity, thanks to its utilization of high-performance proprietary ceramic materials and manufacturing processes.
whwireless' ceramic patch antennas are recognized for their low profile, high efficiency, and high gain characteristics, making them well-suited for GPS/GNSS applications such as mobile handheld tracking and vehicle navigation. Engineered for embedded use, these antennas provide reliable performance within a compact package size.
With micro-strip GPS/GNSS right-hand circular polarization and terminated via a leaded center pin, the WH-GNSS-Q15 antenna offers various ease-of-placement mounting options, ensuring seamless integration into a wide range of devices and systems.
brand:
whwirelessitem no.:
WH-GNSS-Q15payment:
T/Tproduct origin:
chinacolor:
whitelead time:
5working dayNominal frequency MHz:1575.42+1602.56MHz
Centrer frequence:1588±3MHz
Gain (Zenith 90°) dBi type:≥3dBi

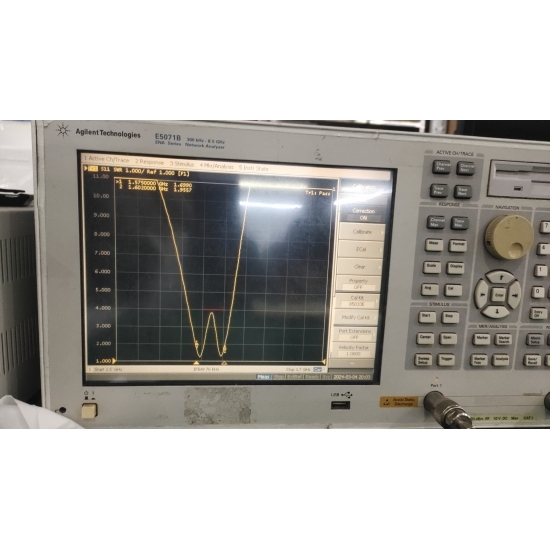

VSWR:≤1.5 maximum
Circularly polarized axial ratio (DB):≤5dB
Return Loss at Center Frequency dB max:≤-15(1575.42MHz&1561.098MHz)
impedance:50W
Antenna horizontal beam width (degrees):360°
Polarization Model:RHCP
Impedance:50 Ω
LAN
figure:≤2.0dB
output VSWR:≤2.0
In-band flatness:±1.0dB
Output P1dB compression point:≥-10dBm
Out of band suppression (deviation from center frequency of 100MHz)):>35dBc
Antenna dimension:15X15X4MM
Working temperature℃:-40~ 85℃
Testing contionation:50*50 mm Sqare Ground Plane
Connector and cable type:IPEX(1st)/1.13mm black color cable

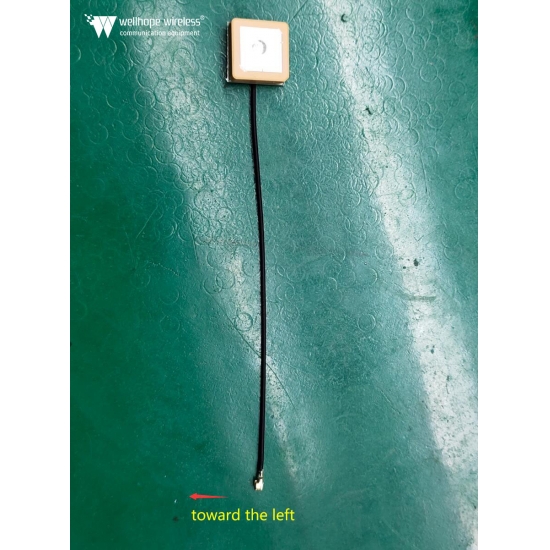

connector toward directional:left/right/up/down side customized
Cable length:10cm
MOQ:10PCS
SPQ:100PCS/box
Ddelivery time:5working day
Payment term:T/T
Package:plastic bag and box
Paymeter method:Paypal;Wire Transfer
Customized according client require detail
Shiping way:DHL Fedex UPS
