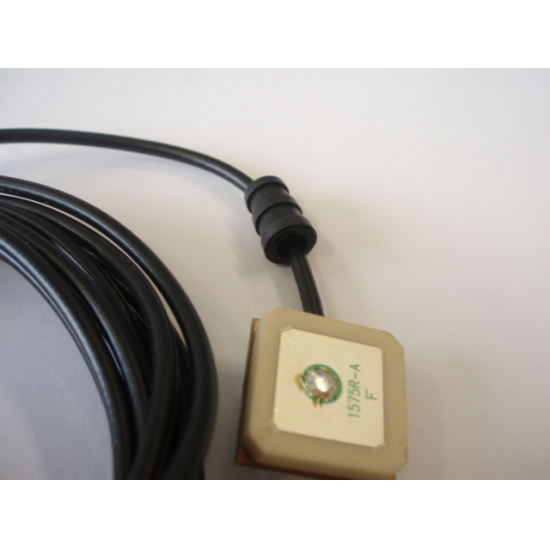

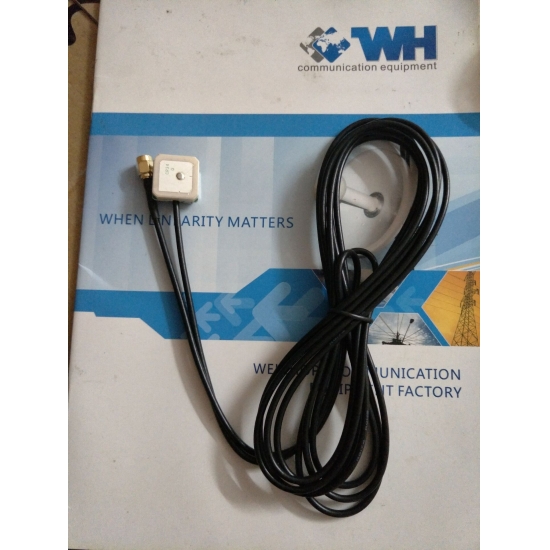

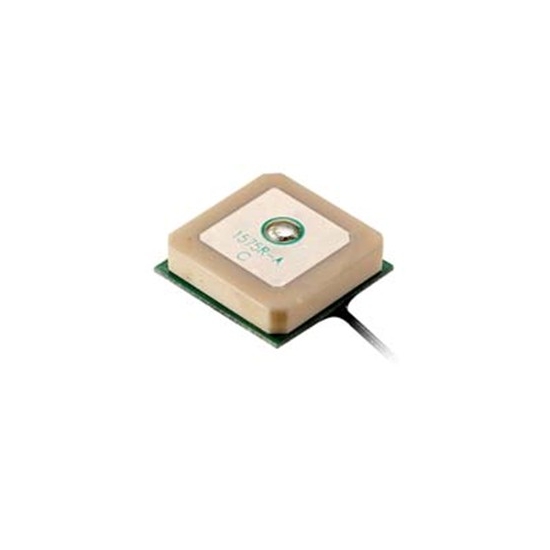

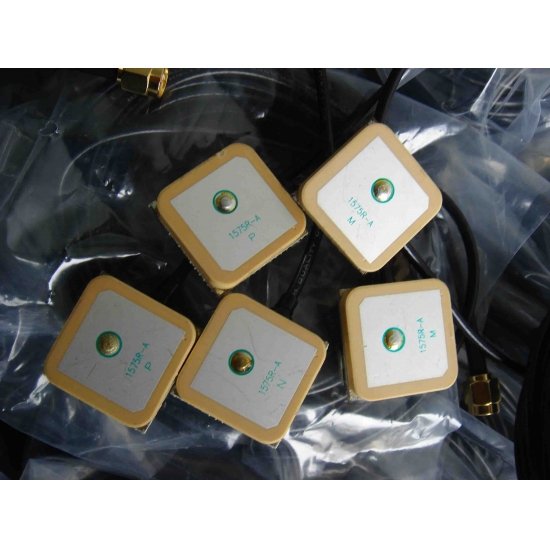

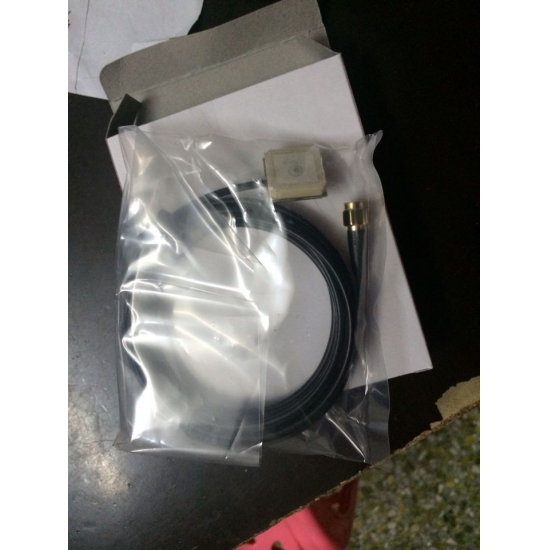

GPS security for vehicles GPS dielectric antenna

SMA male 20x20x7.6mm Packing list:47X22X26cm 7.2KG 100pcs
  • brand:

    whwireless
  • item no.:

    WH-GPS-PCB
Inquiry now
Frequency:1575.42 MHz
Bandwidth:±5 MHz
VSWR:≤1.5.0
Gain:2dBi
polarization:RHCP
dimension:20x20x7.6mm
Input Impedance:50Ω

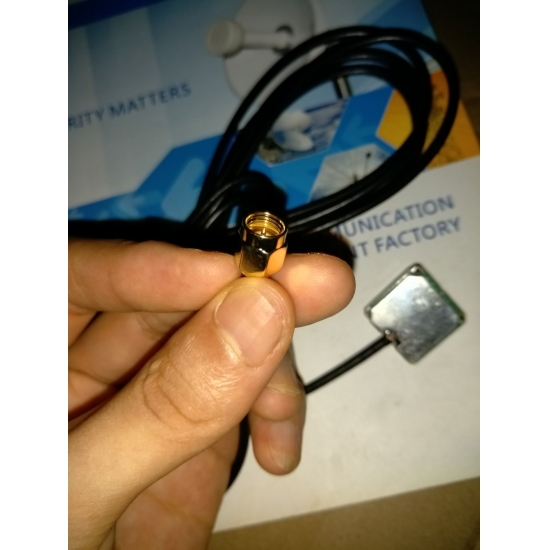

Connector Type:SMA straight MALE
LNB GAIN:28±2 dB
cable:RG174
Noise Figure:1.5 dB
Filter Out Band Attenuation:30dB Min f0+40MHz
30dB Min f0-40MHz
40dB Min f0+100MHz 35dB Min f0-100MHz
DC Voltage:3~5 V
DC Current:5~10 mA

Cable:RG174 ;3 meter
Connector:SMA
Mounting:Internal

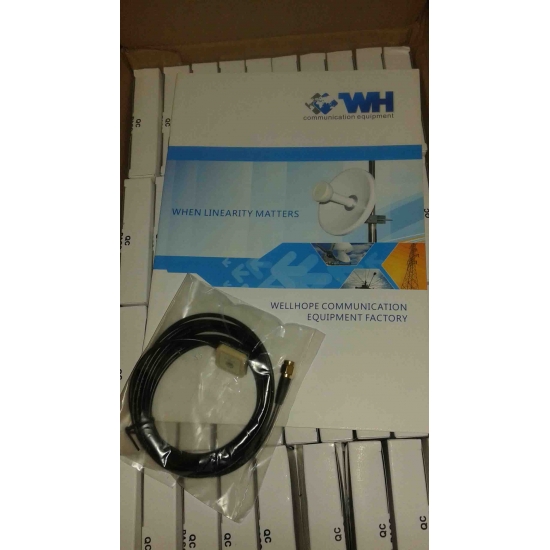

Packing list:47X22X26cm 7.2KG 100pcs
