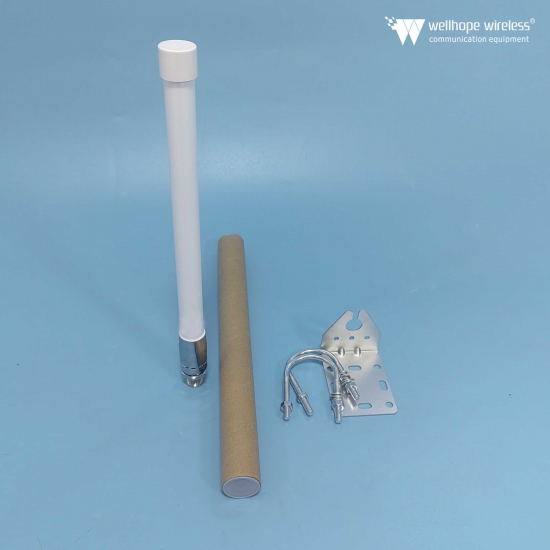

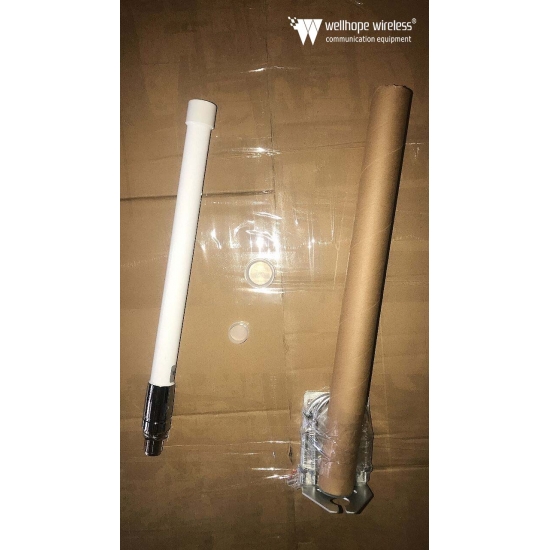

Outdoor Fiberglass Omni Antenna 2400-2500 5000-6000MHz N-Male Connector

Outdoor Fiberglass Omni Antenna 2400-2500 5000-6000MHz N-Male Connector

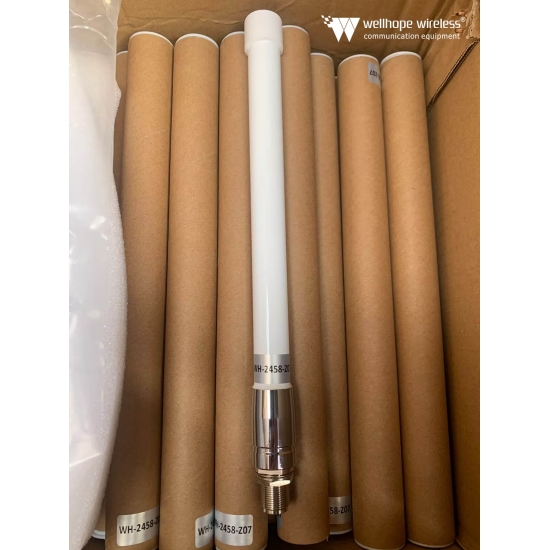

WH-2458-Z07 7dBi Dual-Band Router Antenna

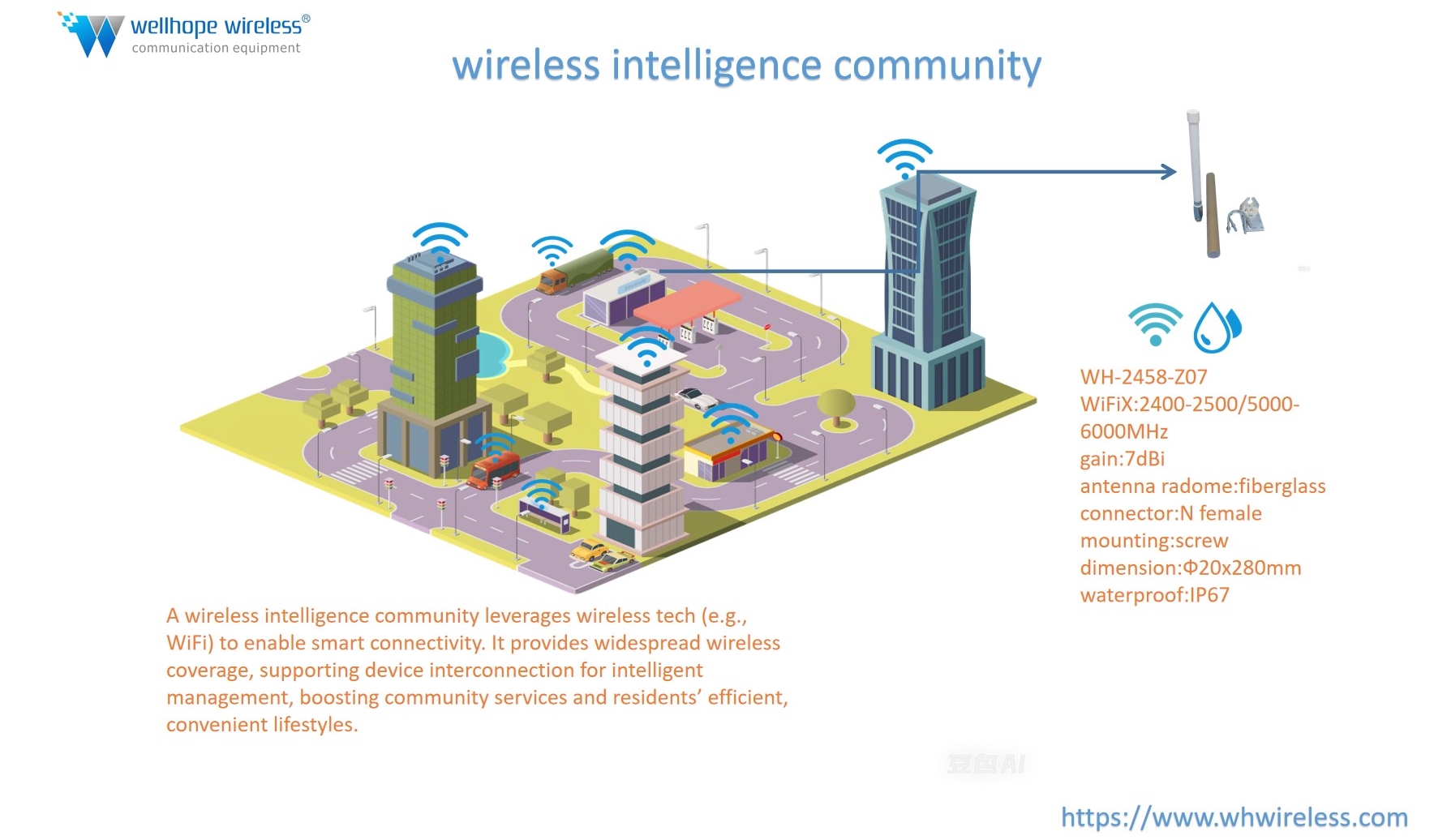

Designed for router compatibility (e.g., TP-Link EAP225, AC600, CF-Ew73), this 7dBi outdoor fiberglass omni antenna supports 2400-2500MHz/5000-6000MHz bands, enhancing Wi-Fi 6/5 (802.11ax/a/b/g) performance. Its IP67-rated waterproof design ensures reliability in harsh conditions, while the N-Male connector provides easy integration with routers. With 360° horizontal coverage and 27-29° vertical beamwidth, it extends signal range, reduces dead zones, and minimizes interference. Ideal for home/office networks, it optimizes throughput and latency for gaming, streaming, and IoT devices.

brand:
whwireless
item no.:
WH-2458-Z07
payment:
T/T
product origin:
china
color:
white
lead time：
7working day

Inquiry now

Frequency Range:2400-2500MHz/ 5000-6000MHz

Efficiency :≈66% /≈63%

Input Impedance:50Ω

Horizontal Beamwidth:360° /360°

Vertical Beamwidth:27-29°/15-25°

V.S.W.R:≤ 2.2/<2.2

Gain:5/8dBi

Max Input Power:50 W

Polarization Type:Linear

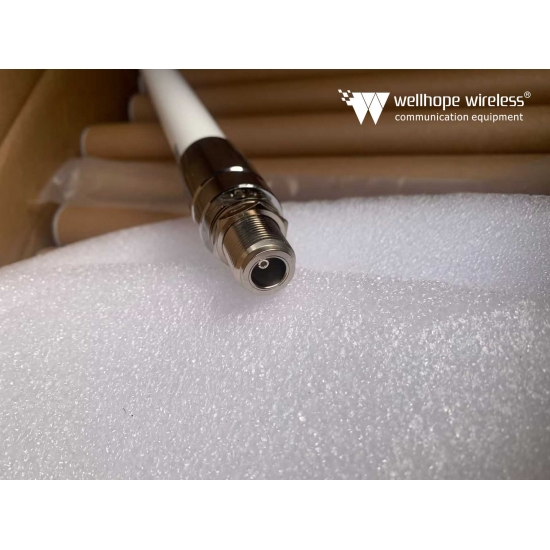

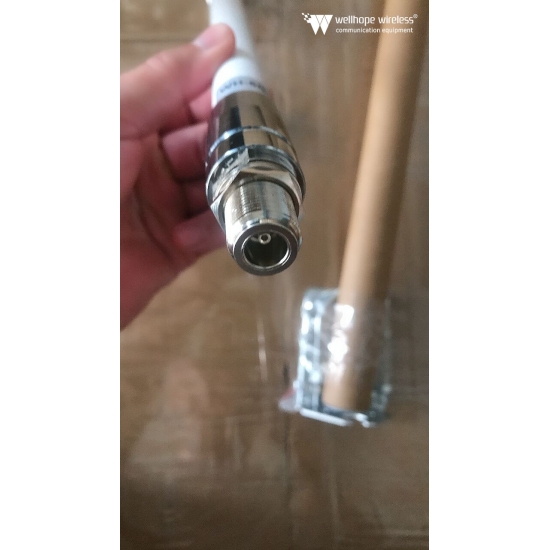

Connector Type:N female

Lightning Protection:DC Ground

Working Temperature:-45℃~﹢85℃

Storage Temperature:-45℃~﹢85℃

Radome material:Fiberglass(black or white)

Weight:0.15kg

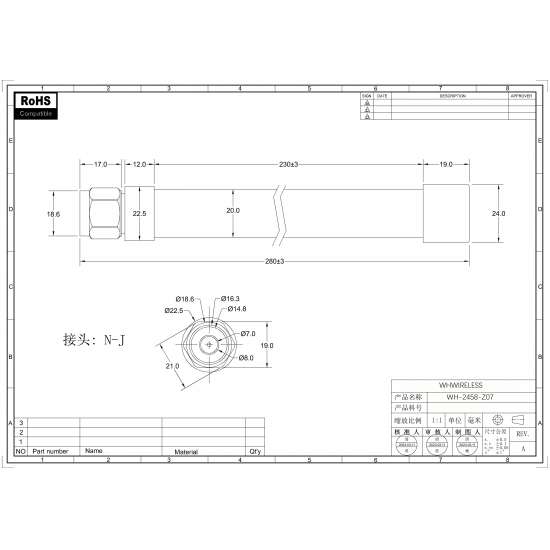

Size:φ20x280mm

Rated Wind Velocity:36.9m/s

Waterproof IP67

MOQ:2PCS

SPQ:100PCS/box

Ddelivery time:5working day

Payment term:T/T

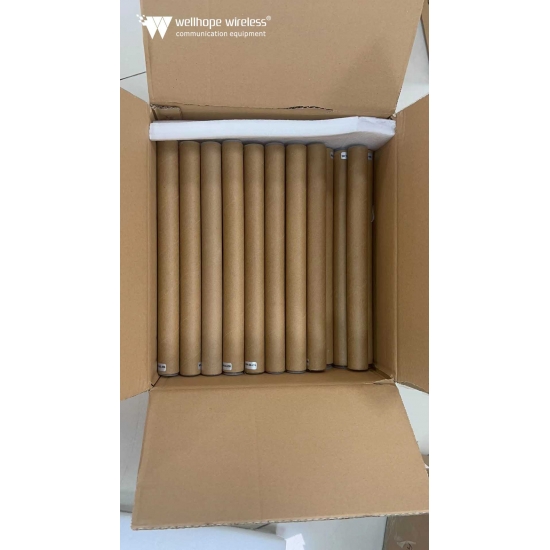

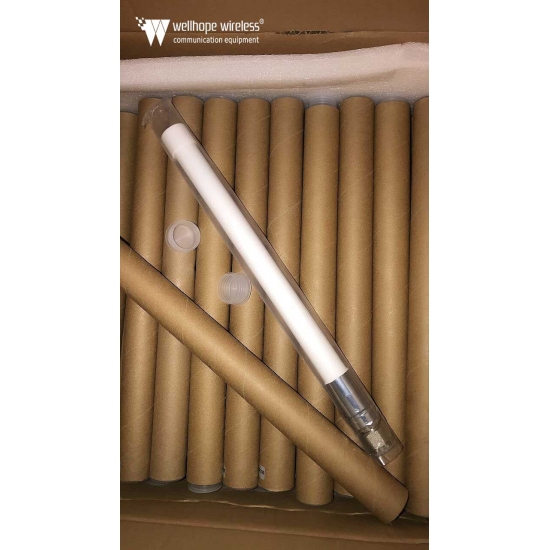

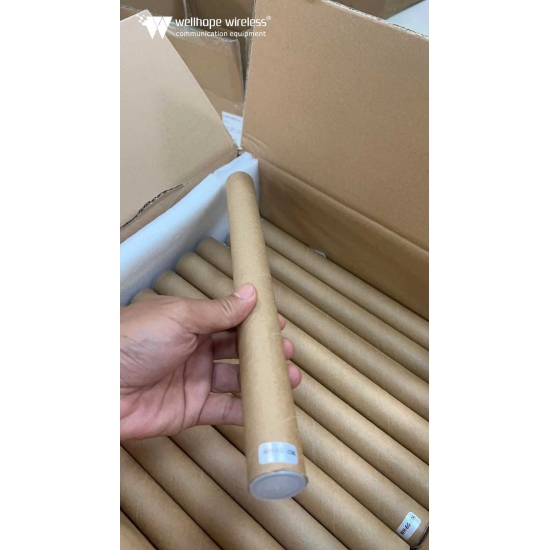

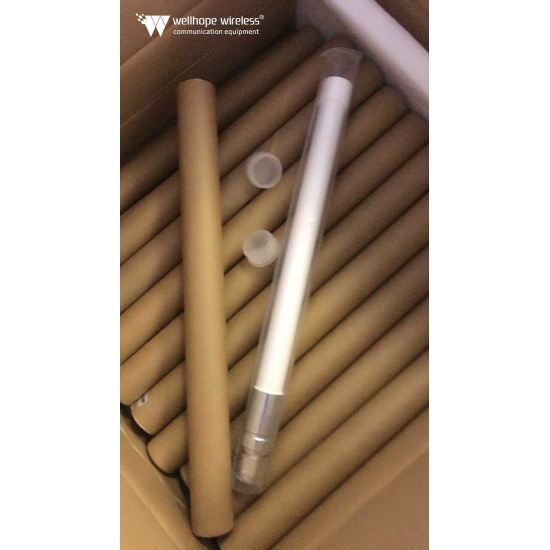

Package:plastic bag and box

Paymeter method:Paypal;Wire Transfer

Customized according client require detail

Shiping way:DHL Fedex UPS
