Products

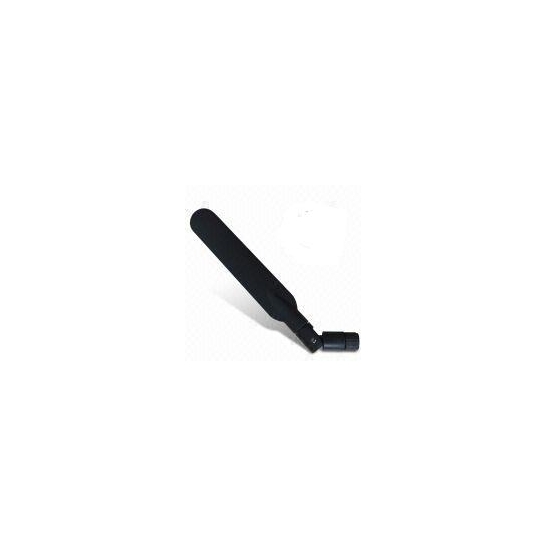

IEEE 802.11b/g WLAN Systems antenna

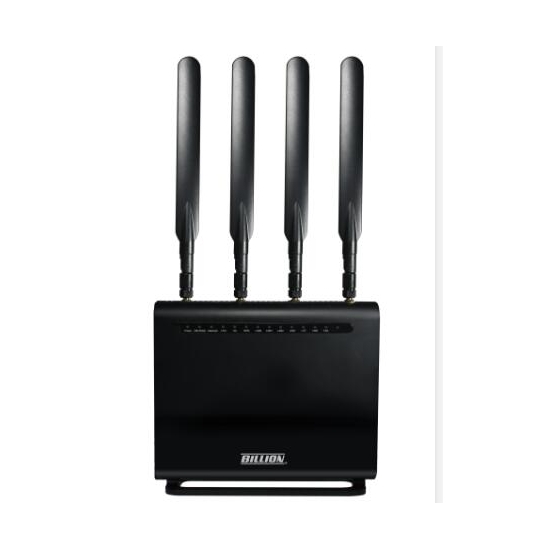

apply to Airwave 2.4GHz Transmitters wlan router antenna

RoHS  IOT antenna

  • brand:

    whwireless
  • item no.:

    WH-2.4&5.8-O5
  • payment:

    T/T
  • product origin:

    china
  • color:

    black
  • lead time:

    4 working day
Inquiry now
Frequency:2400-2483/5150-5250/5725-5850MHZ

VSWR:≤1.5

Gain:4.0/5.0/4.5dBi

Polarization Type:Vertical

Rated Power:50w

Input Impedance:50Ω
Connector Type:RP-SMA straight male

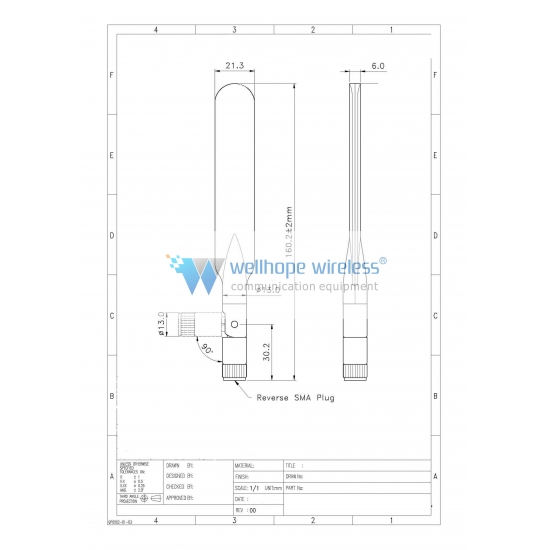

Dimension:Φ21×160mm

Weight:30g

temperature:-40~+70℃


Waterproof IP65

MOQ:10PCS

Ddelivery time:5working day

Payment term:T/T

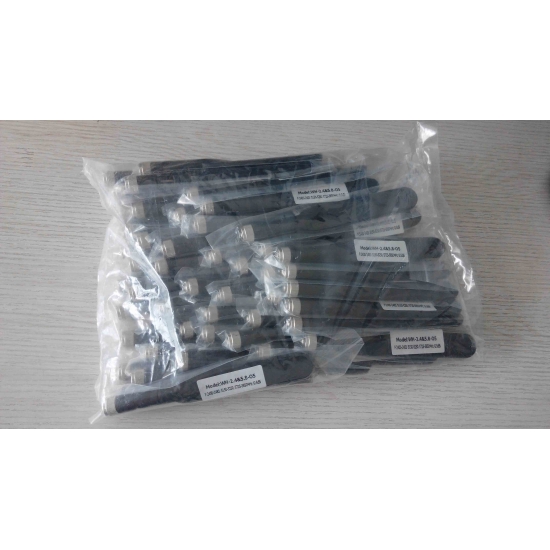

Package:plastic bag and box

Paymeter method:Paypal;Wire Transfer
