WiFi 7 wlan antenna

WIFI 7 antenna

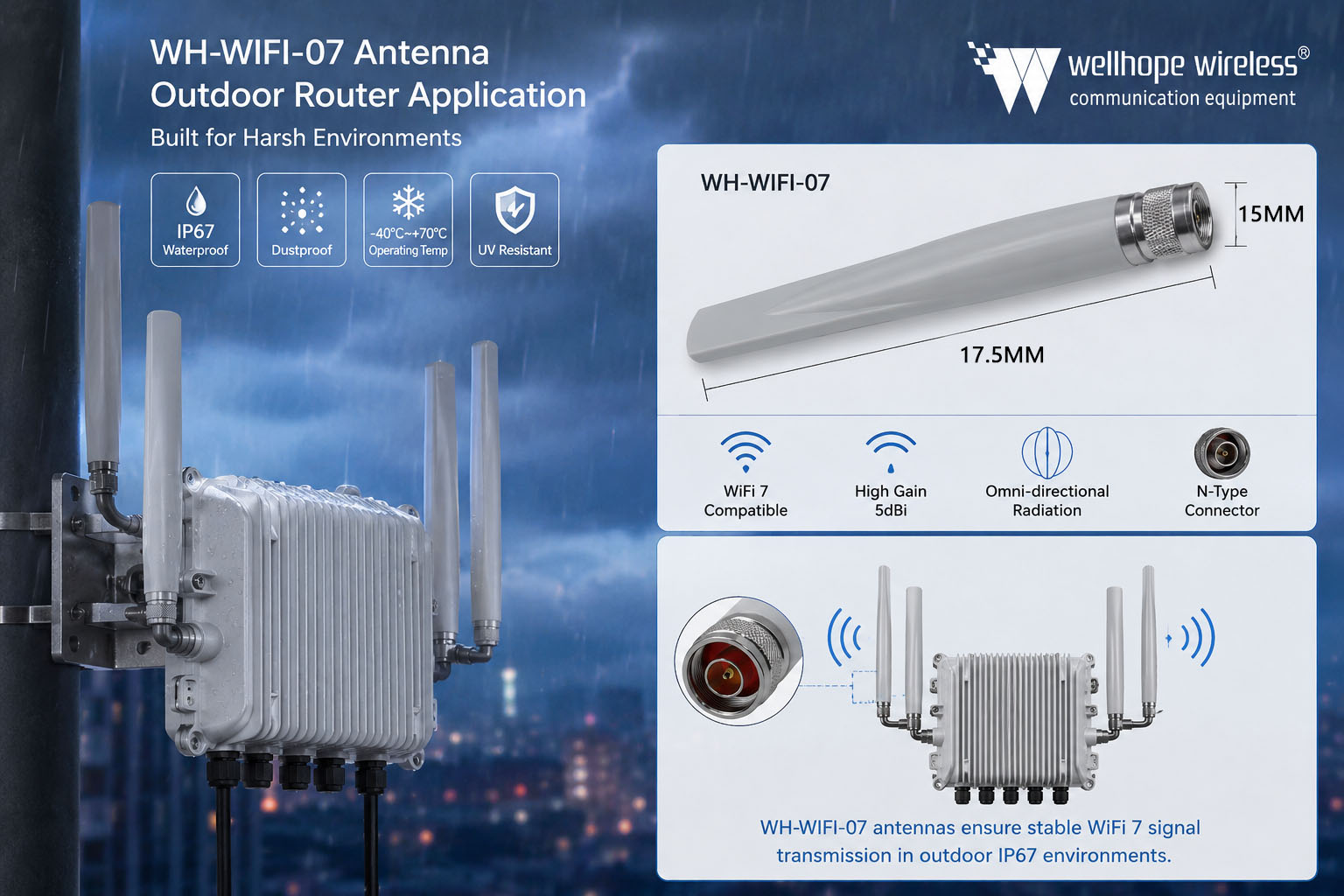

The WH-WIFI-07 WiFi 7 Outdoor Antenna is designed to deliver reliable wireless connectivity in demanding outdoor environments. As shown in the image, the antenna is installed on an industrial-grade IP67 outdoor router, providing stable and high-speed WiFi 7 signal coverage for smart cities, industrial IoT, surveillance systems, transportation networks, and remote communication applications. With a 5dBi high-gain omni-directional design, the WH-WIFI-07 ensures 360-degree wireless coverage, helping reduce dead zones and improve network performance. Its rugged construction supports IP67 waterproof and dustproof protection, UV resistance, and an operating temperature range of -40°C to +70°C, making it ideal for harsh weather conditions. The compact antenna features an N-Type connector for secure and low-loss signal transmission, ensuring long-term reliability in outdoor deployments. Whether used in industrial wireless routers, outdoor access points, or smart infrastructure projects, the WH-WIFI-07 antenna enhances WiFi 7 network stability, extends coverage range, and supports high-speed data communication where dependable outdoor wireless performance is essential.

  • brand:

    whwireless
  • item no.:

    WH-WIFI-07
  • payment:

    T/T,Alipay,WeChat Pay,Paypal
  • product origin:

    china
  • color:

    gray
  • lead time:

    3 working day

Frequency range-MHz:2400-2500/5150-5925/7125
Bandwidth-MHz:100/825/1200
Gain-dBi:5/6/7
Horizontal Beamwidth-°:360
Vertical Beamwidth-°:32
F/ B Rati-dB:≥16
VSWR:≦1.5
Nominal impedance-Ω:50
Polarization: Vertical
Maximum power-W:100

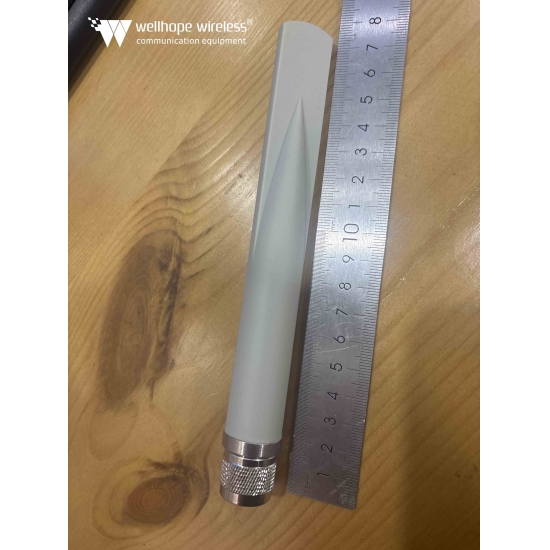

Dimensions-mm:φ15x175
Weight-kg:0.2
Rated Wind Velocity-m/s:60
Connector:N female
Mounting Mast Diameter-mm:Ф35-50
