2×2 MIMO 5G Antenna Omni Cellular Sub6

IP66 waterproof 4G antenna 5G 8dbi OMNI ANTENNA

The WH-5G-ST6x2 is a 5G antenna designed for factory signal coverage. It operates within a frequency range of 700 - 4800MHz, enabling it to support a wide spectrum of 5G applications. With a gain of 6dBi x2, it effectively boosts the signal strength, ensuring reliable communication within the factory environment.

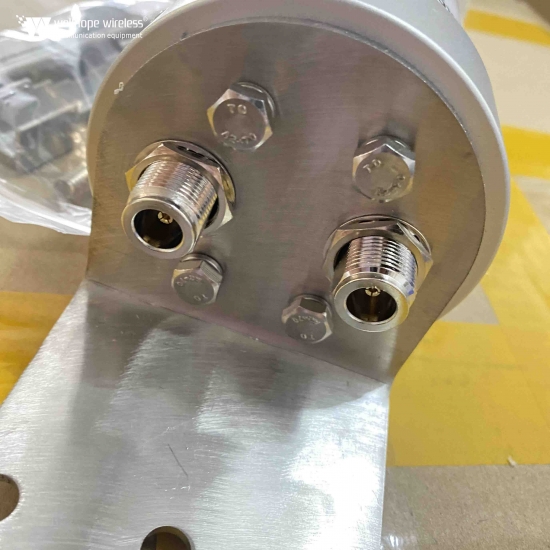

It features N female x2 connectors, which are standard in the industry for easy installation and connection to relevant communication equipment. Measuring at φ75X200mm, its compact size makes it suitable for various installation scenarios in factories. This antenna plays a crucial role in bridging the 5G station and the factory, facilitating seamless 5G signal distribution across industrial facilities.

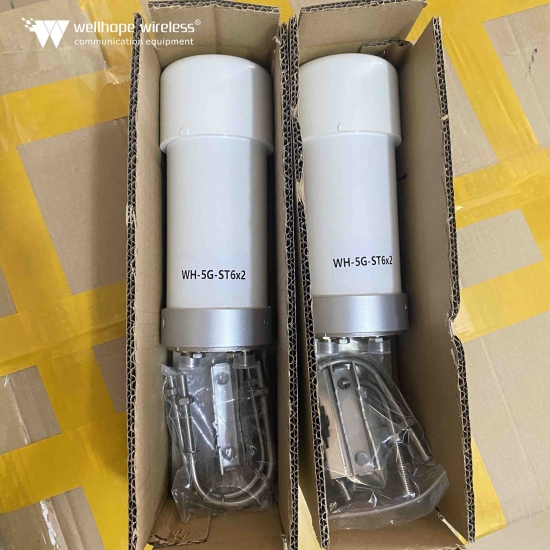

individual box package

Cable Optionally we offer a pair of antenna cables of type RG58U with a length of 2.5m, 5m, 10m and 15m with N male to SMA male (fits to the most common LTE routers ) connectors.

brand:
whwireless
item no.:
WH-5G-ST6x2
payment:
T/T
product origin:
china
color:
white
lead time：
7working day

Inquiry now

Frequency Range :700-960/1710-2170/2300-2400/2500-2700/4800MHz
Band width :260/460/100/200MHz
Gain :4/6/6dBi X2
V.S.W.R :≤2:1
Radiation :Omni-Direction
Horizontal Beam width:360°
Vertical Beam width :18°
Polarization :Vertical
Lightning Protection:DC-Grounded
Maximum Input Power :100W
Impedance:50Ώ
Connector :N FemaleX2 or SMA femaleX2 customized
Antenna Radome Material:PVC
Mount way :Pole
Diameter of Installation Pole:Ø30~Ø50mm

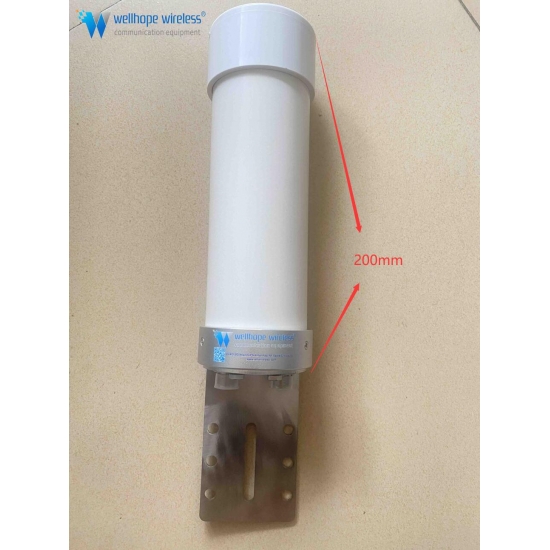

Dimensions:Φ75x200mm
Weight:1KG
Operating Temperature:-40℃ to+70℃
Rated wind velocity(m/s):60m/s
RoHS Compliant:YES
