3 in 1 GLONASS 5G antenna

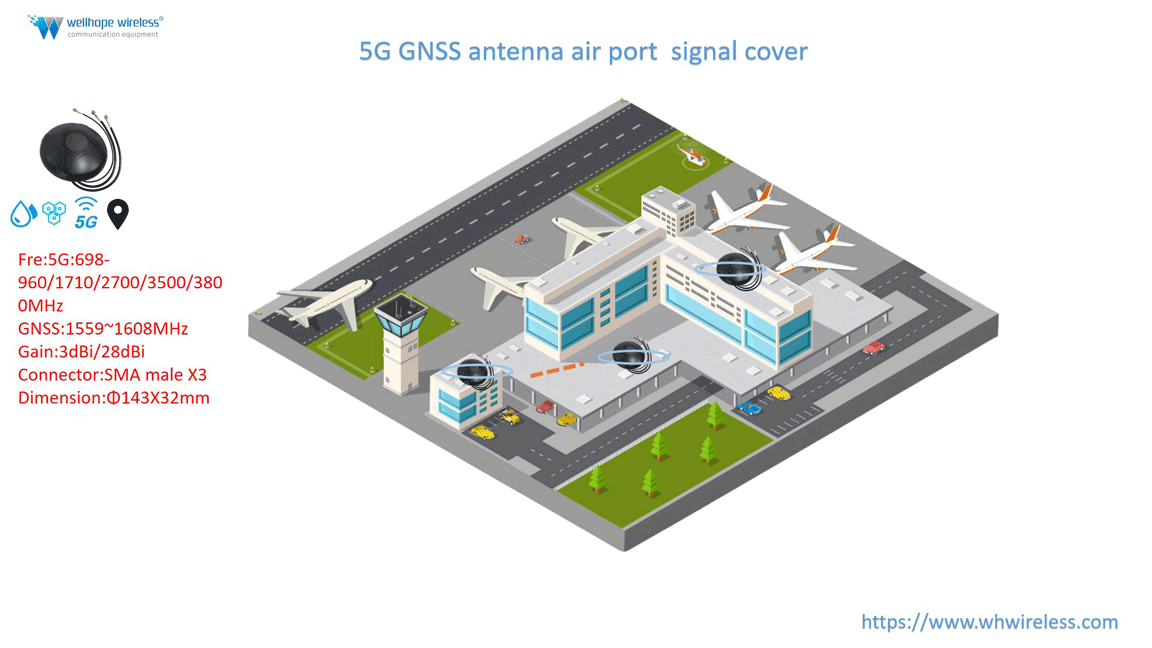

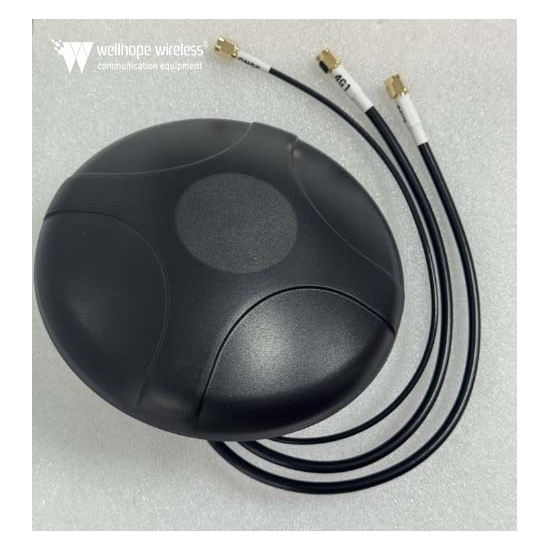

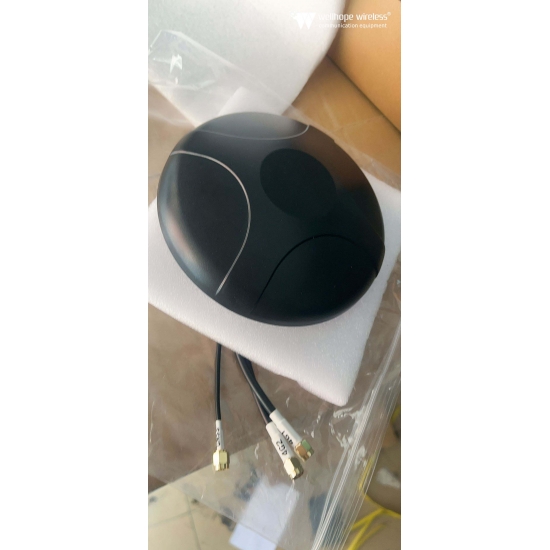

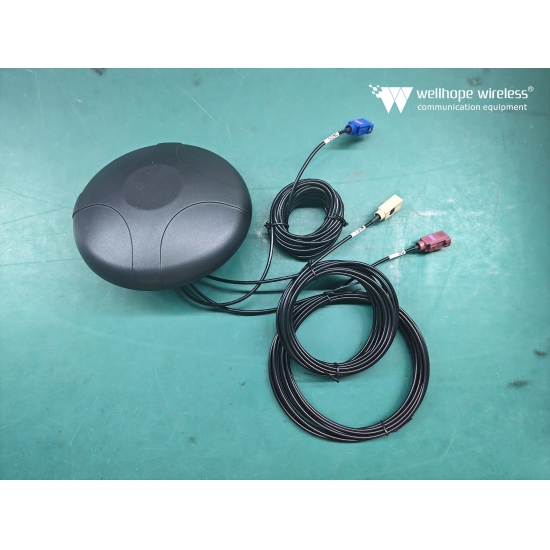

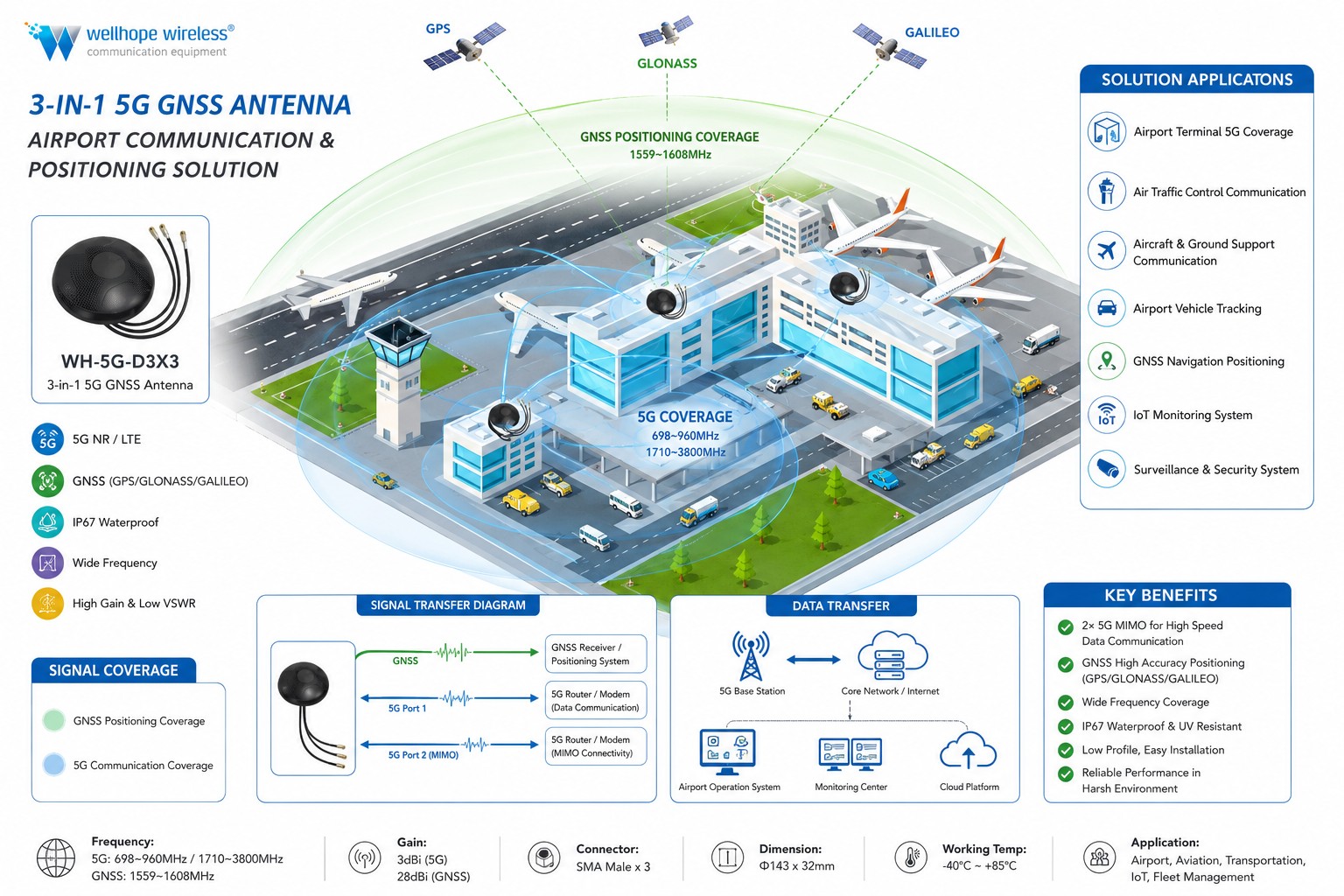

The WH-4G-D3X3 wireless signal cover antenna offers advanced connectivity and positioning performance, drawing on the expertise found in WH Wireless’s 3-in-1 GNSS/5G antenna solutions. (See WH’s product page for reference.) The antenna operates across broad 5G bands (698-960 / 1710 / 2700 / 3500 / 3800 MHz) and GNSS frequencies (1559-1608 MHz), delivering both high-speed data and precise satellite positioning. Its gain of 3 dBi / 28 dBi ensures robust signal coverage and improved link margins in challenging RF environments.

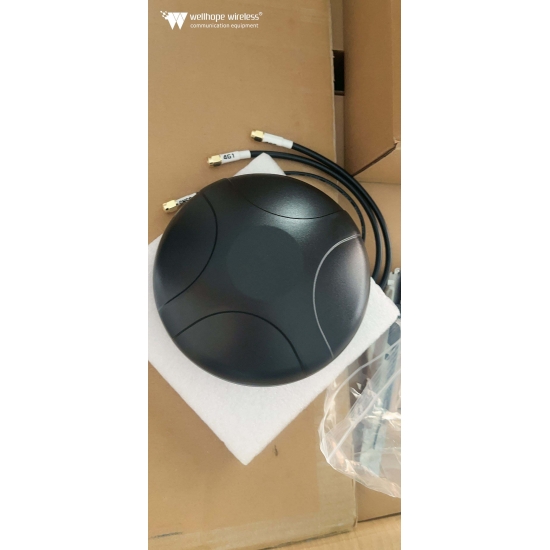

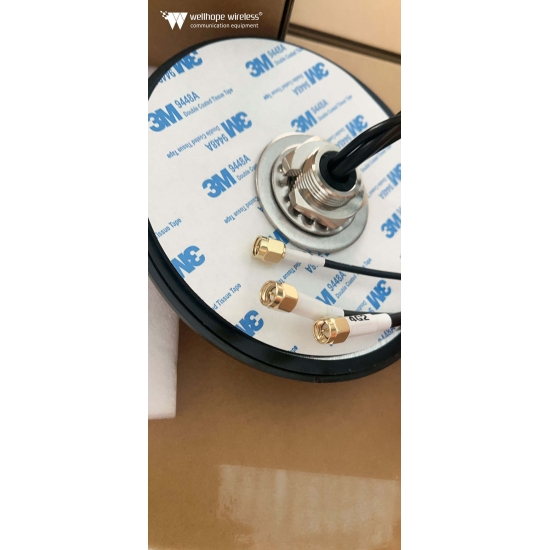

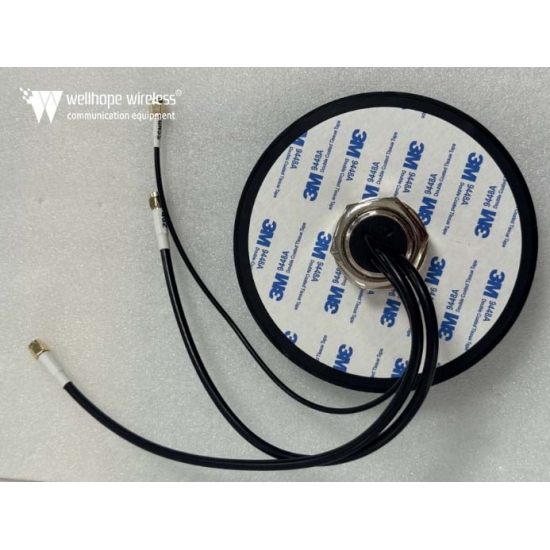

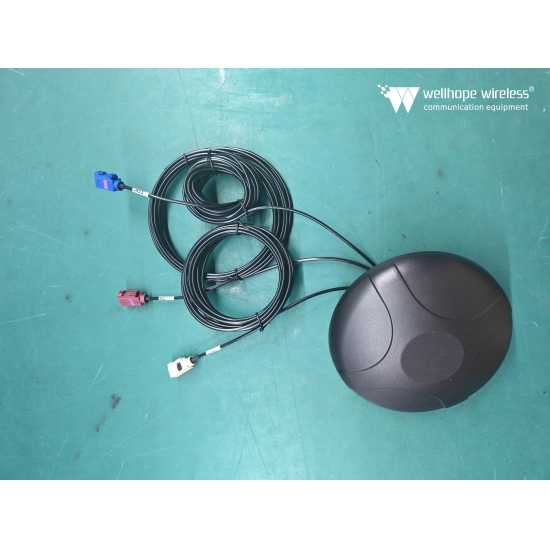

Designed for durability, it features a compact, weather-resistant enclosure (Φ143 × 32 mm) and comes with three SMA male connectors to accommodate multi-band radio systems. The WH-4G-D3X3 is ideal for use on rooftops, control towers, terminals, and large-scale installations where strong 5G coverage and GNSS accuracy are critical.

brand:
whwireless
item no.:
WH-5G-D3X3
payment:
T/T
product origin:
china
color:
black
lead time：
7working day

Inquiry now WhatsApp

GPS:

Frequency range:1561.098~1606MHz

V.S.W.R:＜2.0

Polarization:RHCP

Gain:28±2dB

Impedance:50Ω

Noise Figure:1.5dB

Voltage:3-5V DC

Current:15mA

5G:

Frequency:698-960/1710/1800/2600/2700/3500/3800MHz

VSWR:≤2.0

Gain:3dBiX2

F/B radio:8dBi

Polarization Type:Vertical

Rated Power:50w

Input Impedance:50Ω

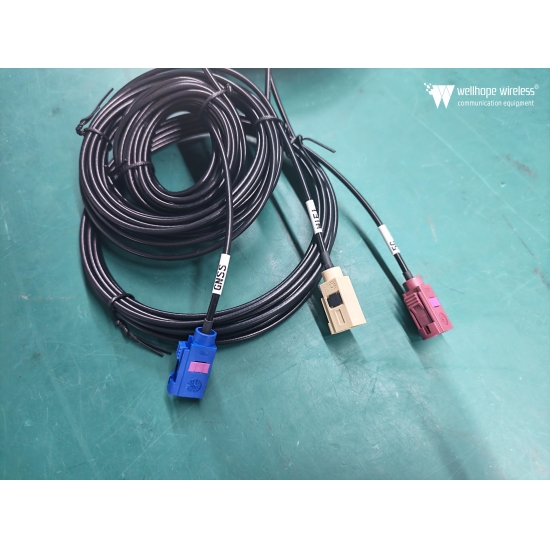

Connector Type:N male X3

Cable type:RG58u

Length:3(Meter) X2

Water proof level:IP67

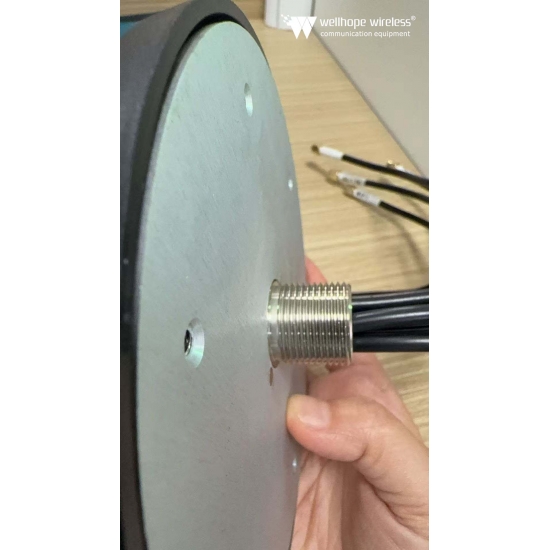

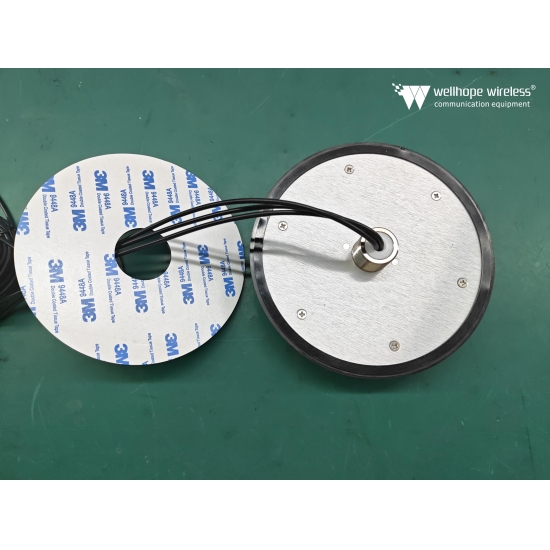

Mounting method:Screw

Dimensions:D143X32(mm)

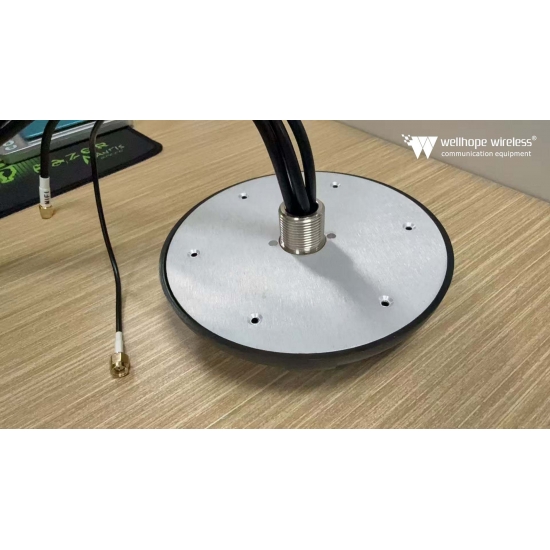

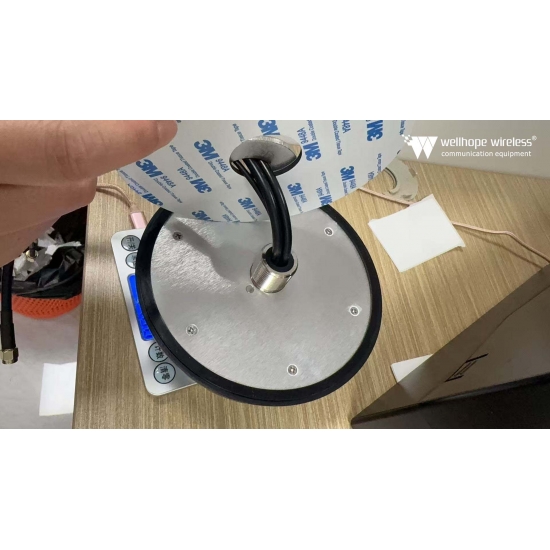

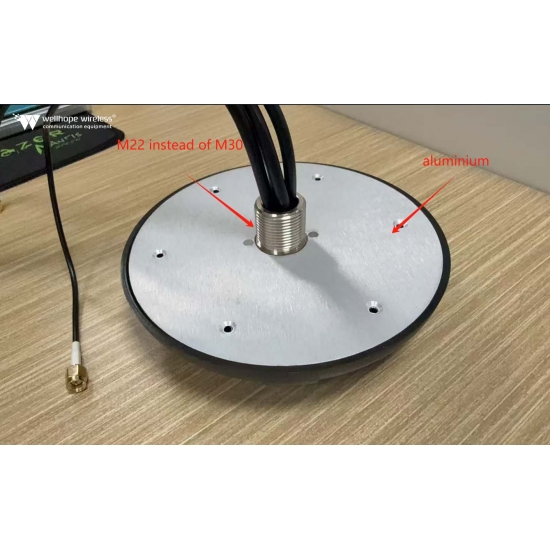

Antenna base material:Aluminium

Radome Material :ABS

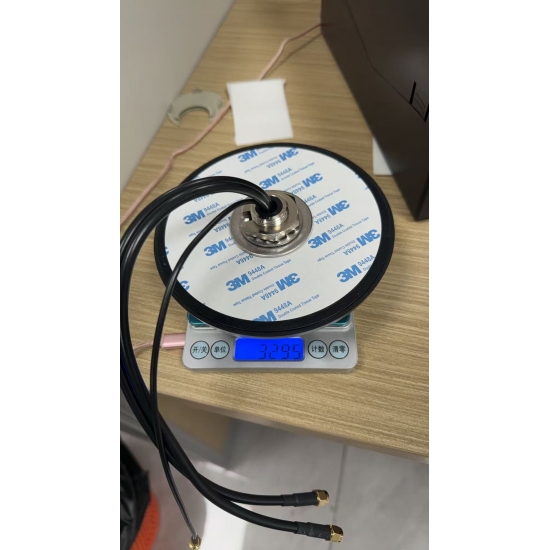

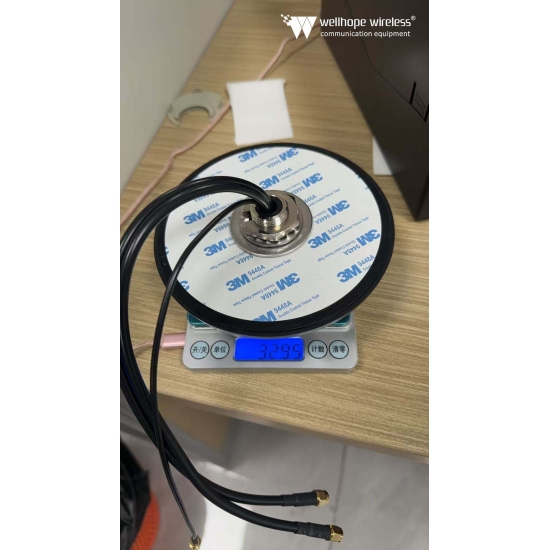

Weight:0.8Kg
