5G 4x4 MIMO Antennas

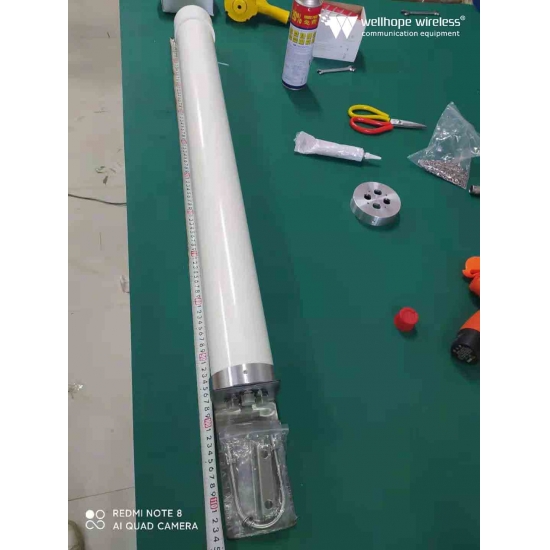

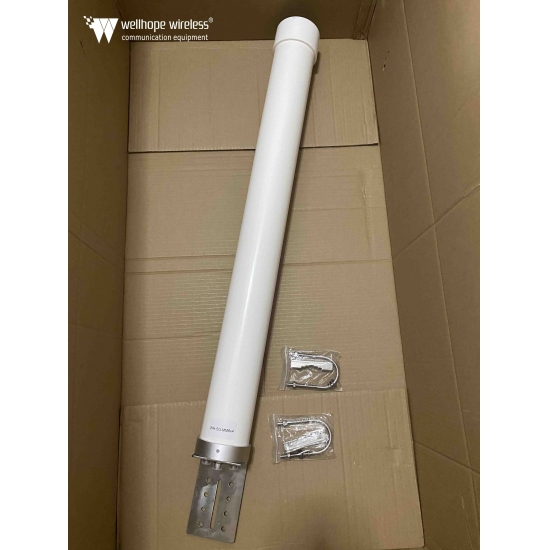

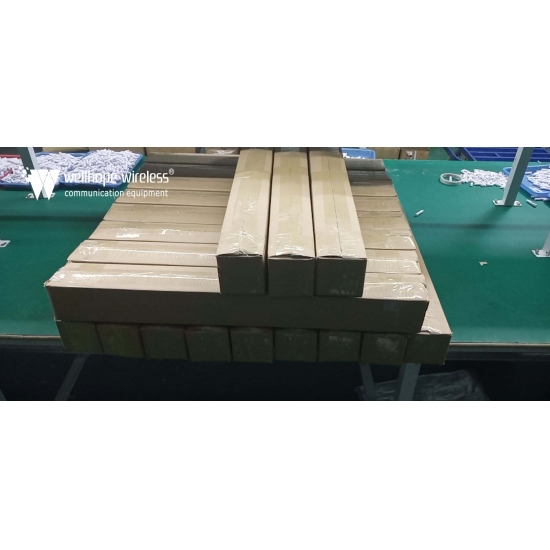

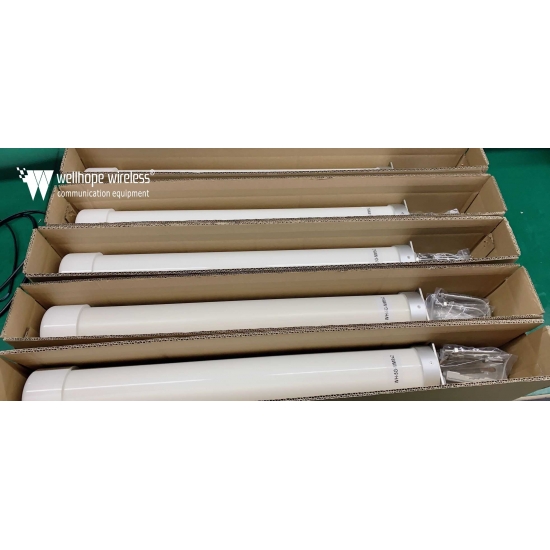

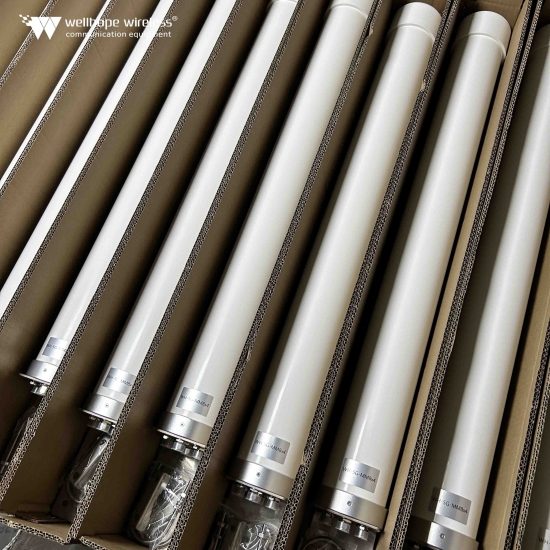

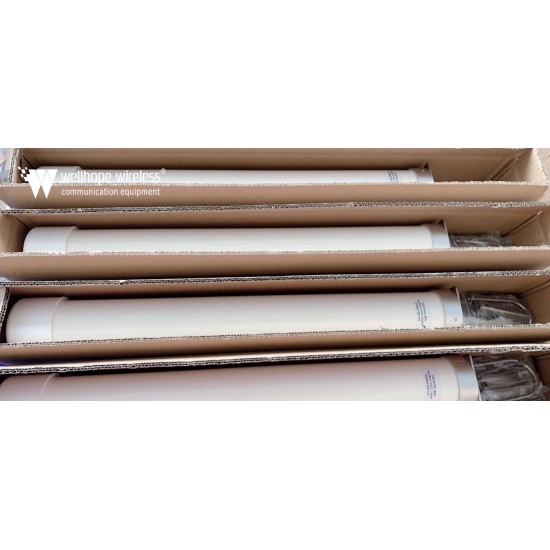

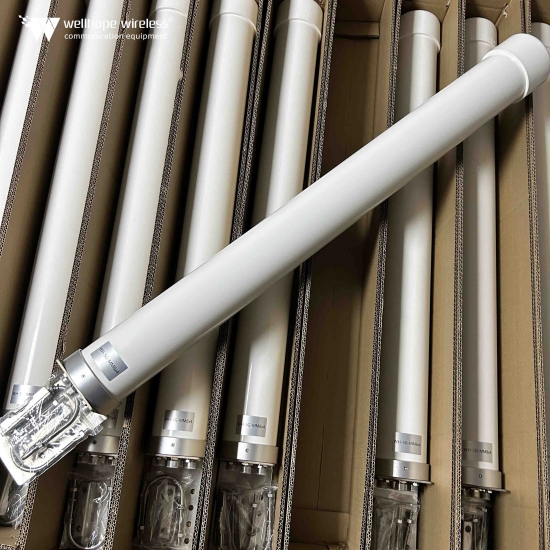

IP66 waterproof 4G antenna 5G 8dbi OMNI ANTENNA individual box package

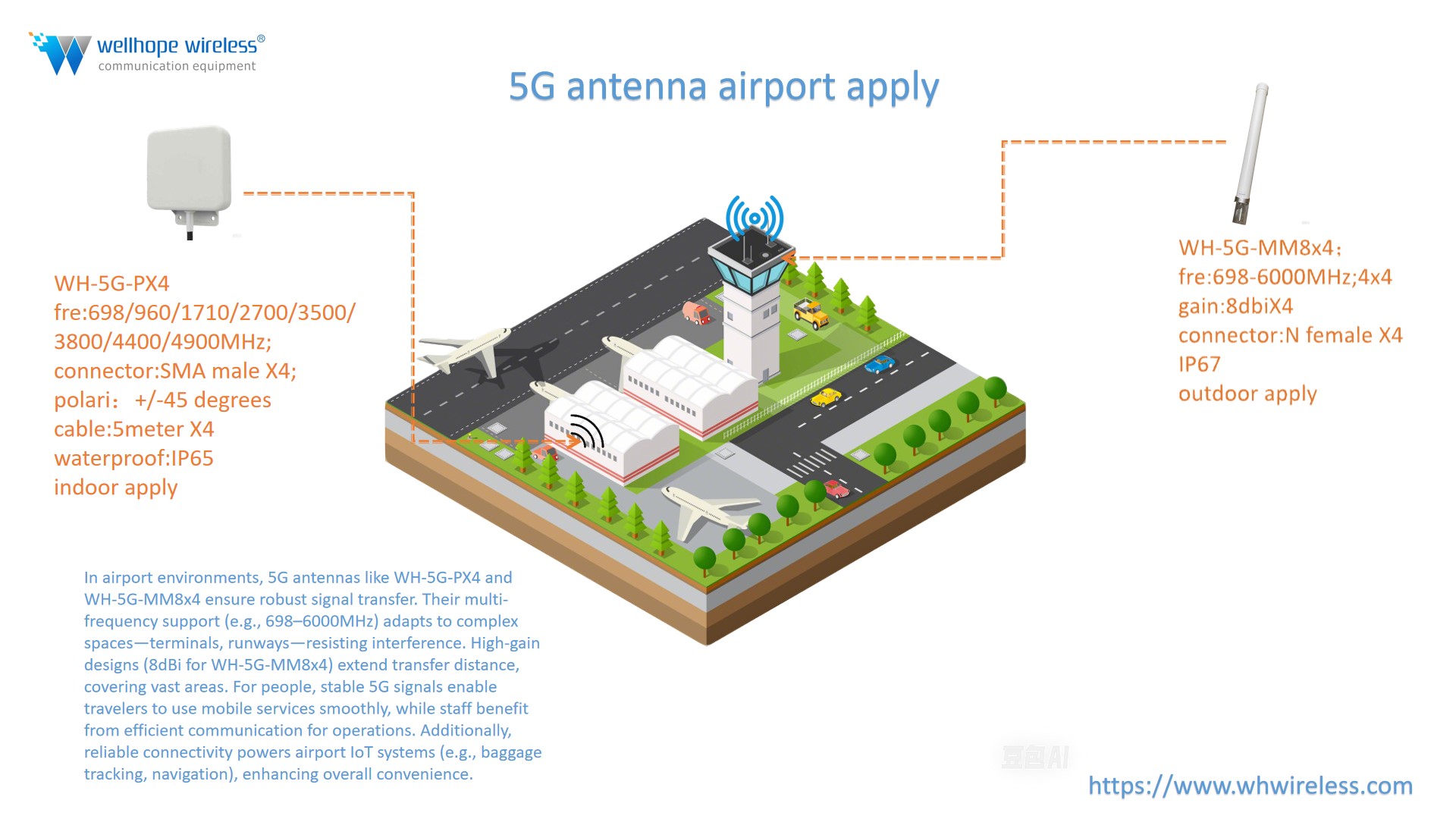

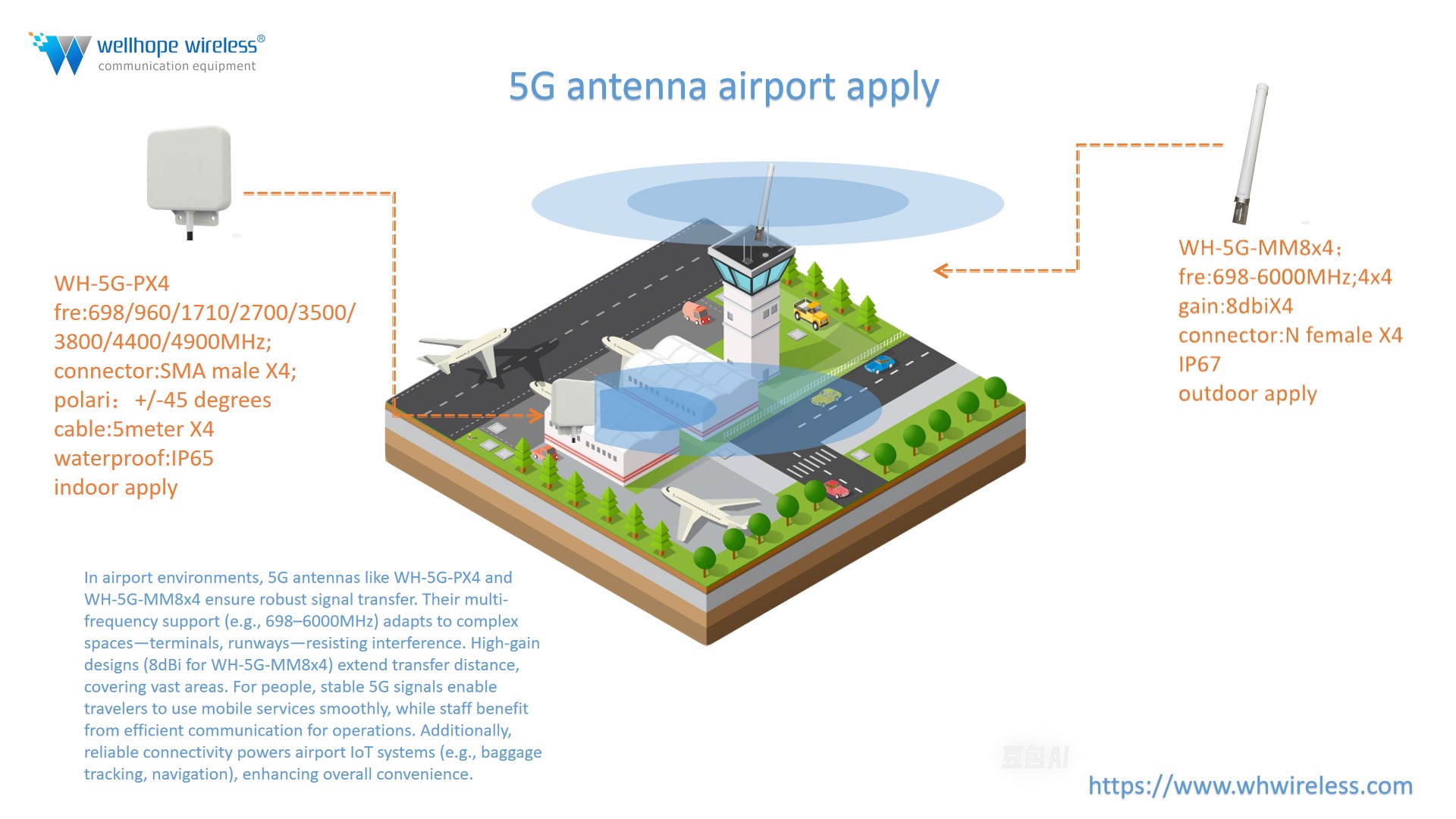

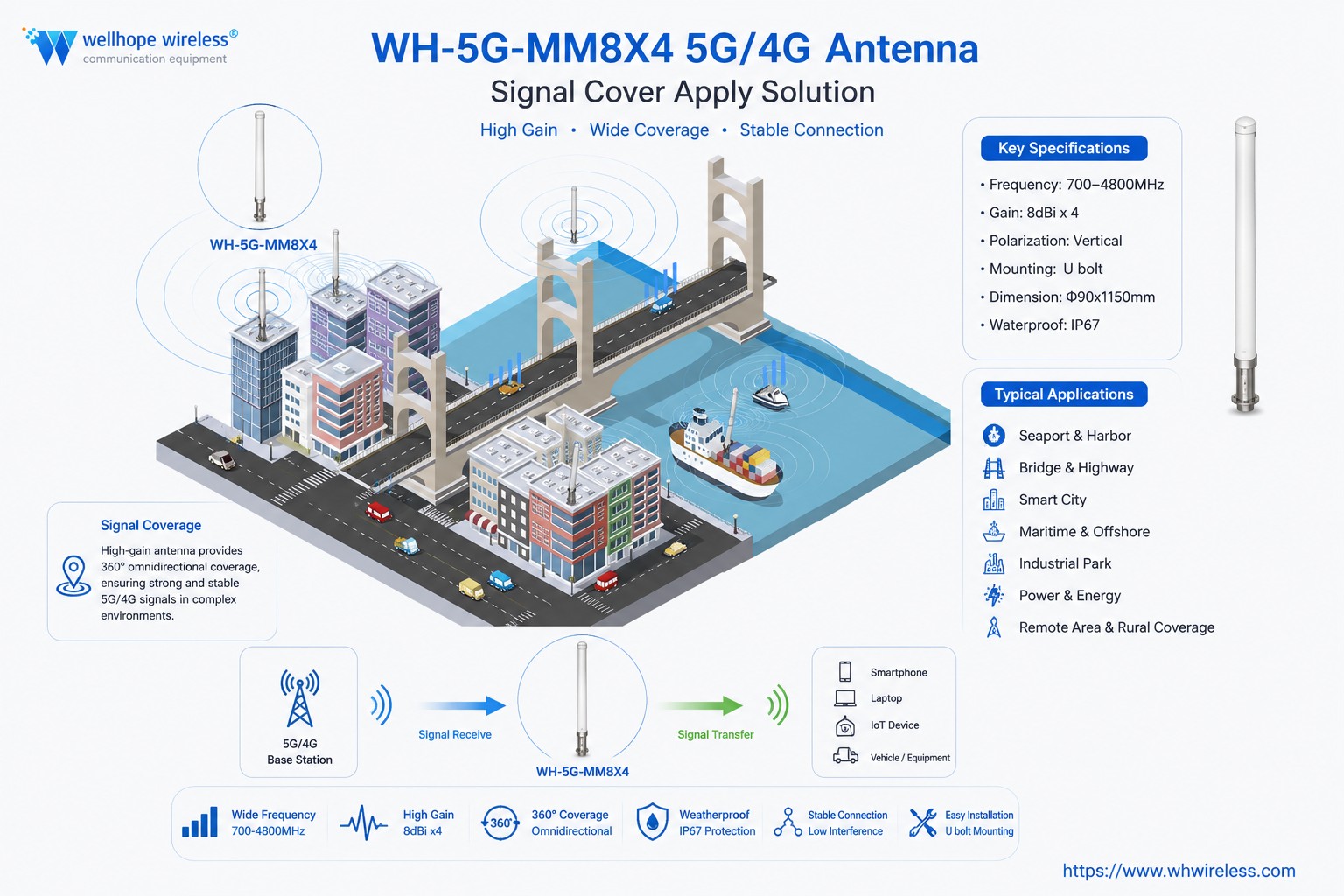

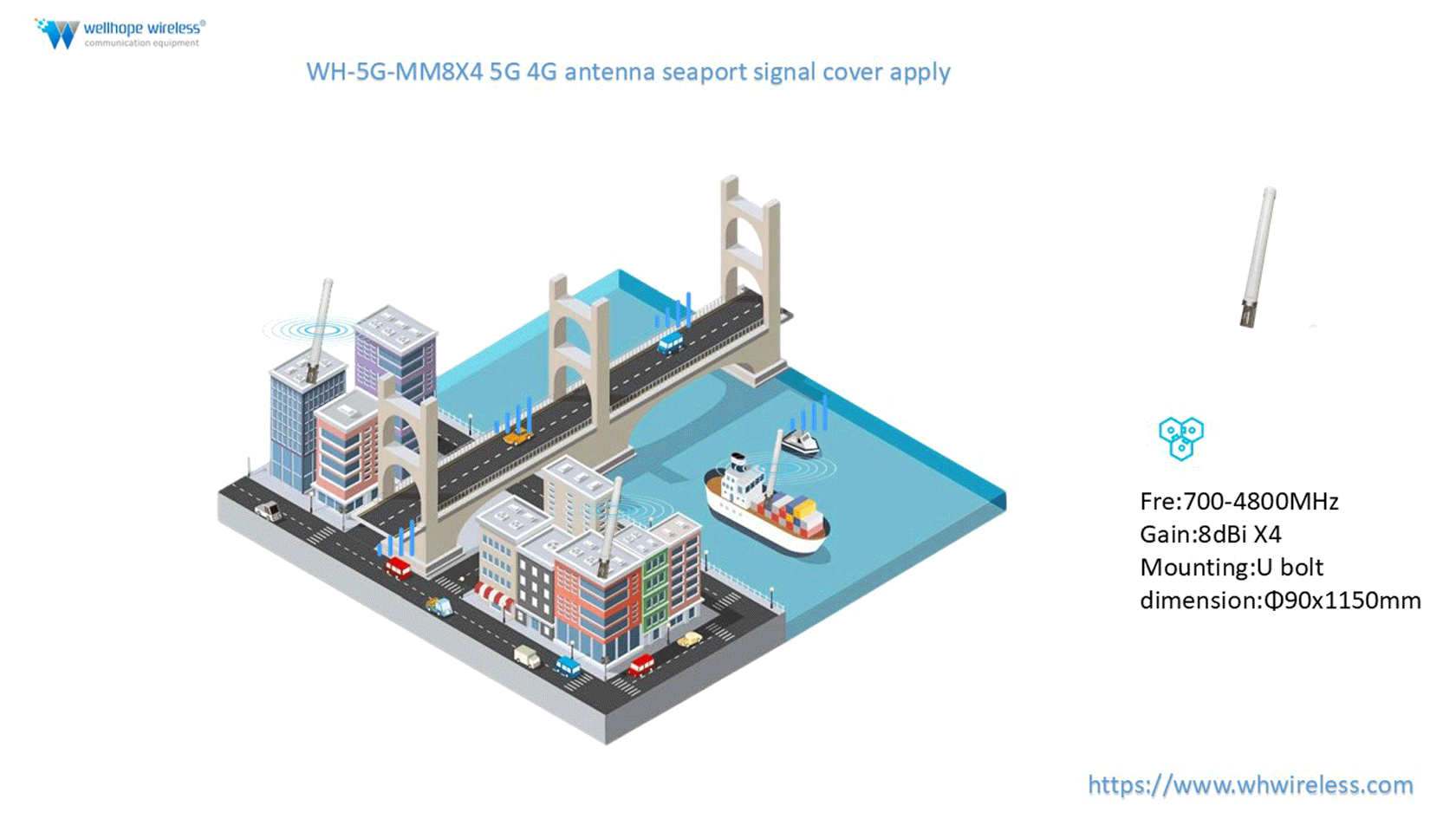

In airport environments, 5G antennas like WHWIRELESS WH-5G-PX4 and WH-5G-MM8x4 ensure robust signal transfer. Their multi-frequency support (e.g., 698–6000MHz) adapts to complex spaces—terminals, runways—resisting interference. High-gain designs (8dBi for WH-5G-MM8x4) extend transfer distance, covering vast areas. For people, stable 5G signals enable travelers to use mobile services smoothly, while staff benefit from efficient communication for operations. Additionally, reliable connectivity powers airport IoT systems (e.g., baggage tracking, navigation), enhancing overall convenience.

brand:
whwireless
item no.:
WH-5G-MM8x4
payment:
T/T
product origin:
china
color:
white
lead time：
7working day

Inquiry now

Frequency Range :700-960/1710-2170/2300-2400/2500-2700/4800MHz
Band width :260/460/100/200MHz
Gain :6/8/8dBiX4
V.S.W.R :≤2:1
Radiation :Omni-Direction
Horizontal Beam width:360°
Vertical Beam width :18°
Polarization :Vertical&Horizontal
Lightning Protection:DC-Grounded
Maximum Input Power :100W
Impedance:50Ώ

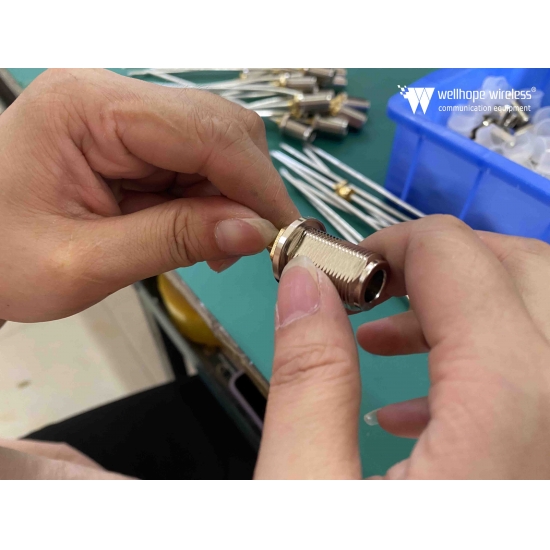

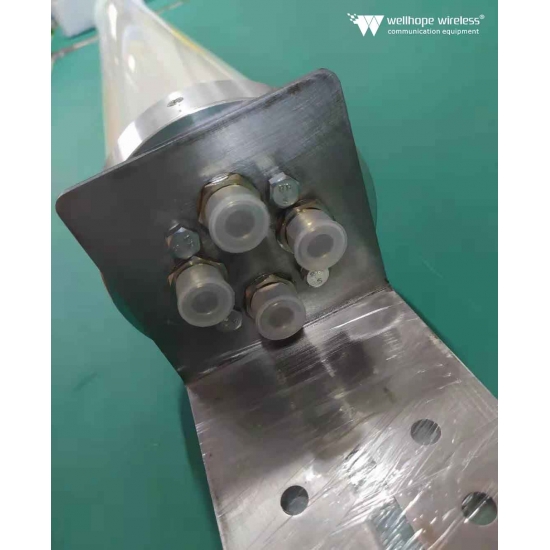

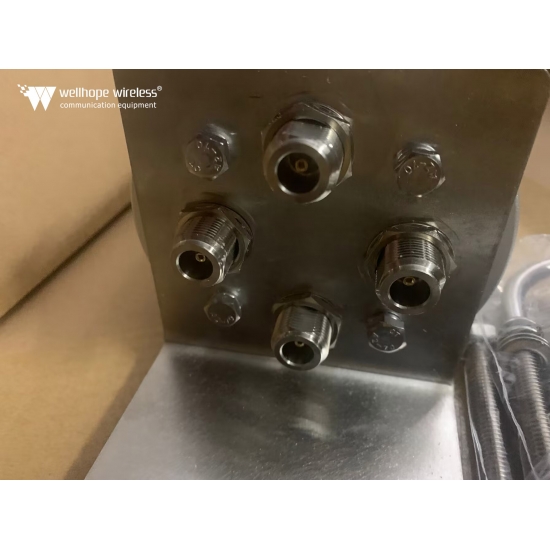

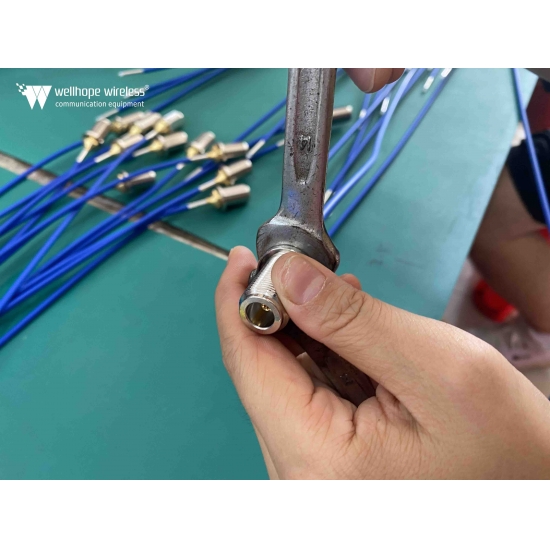

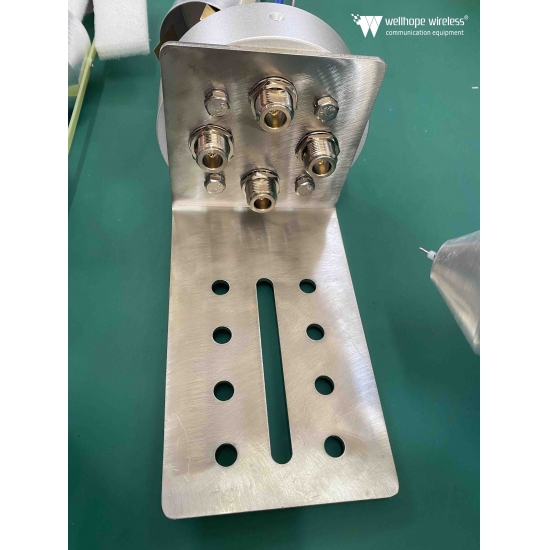

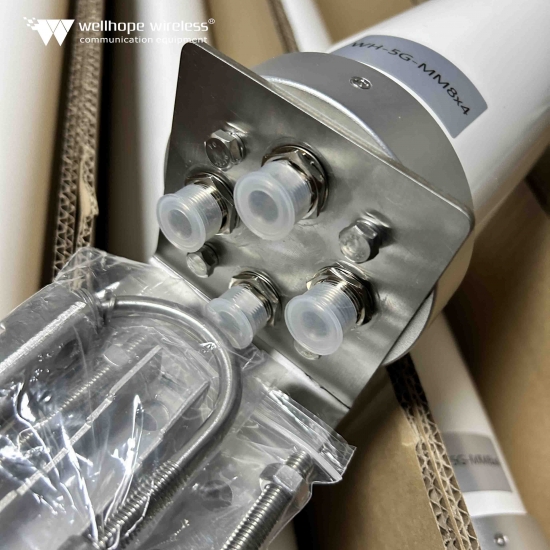

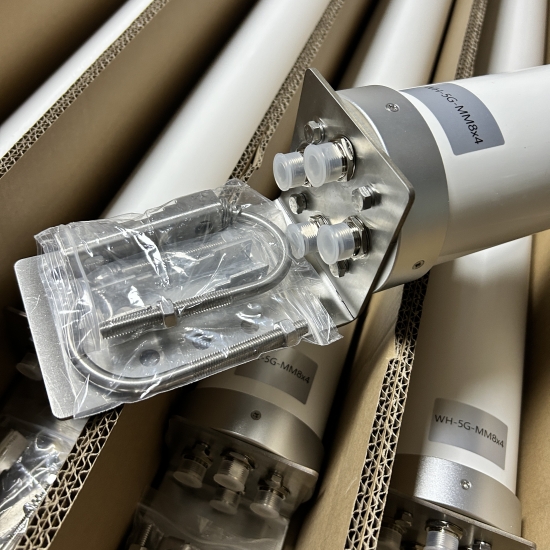

Connector :N Female X4 or SMA femaleX4

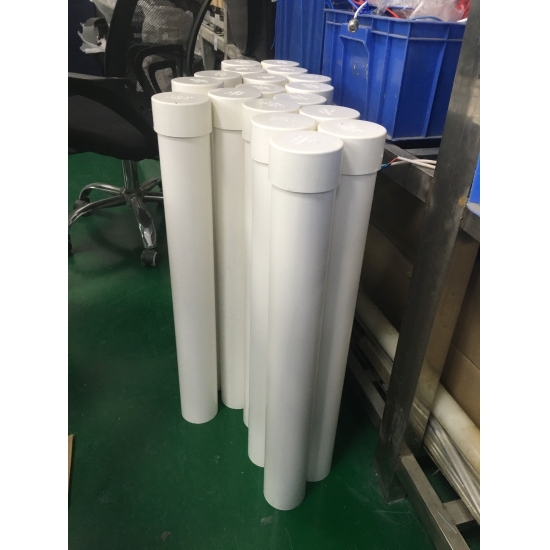

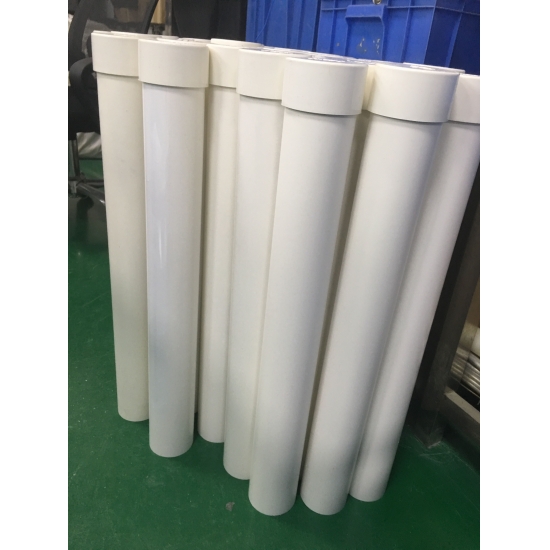

Antenna Radome Material:PVC

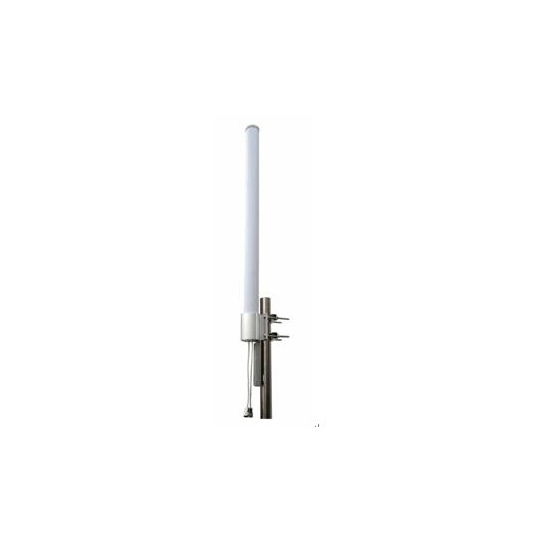

Mount way :Pole
Diameter of Installation Pole:Ø30~Ø50mm

Dimensions:Φ90x1150mm

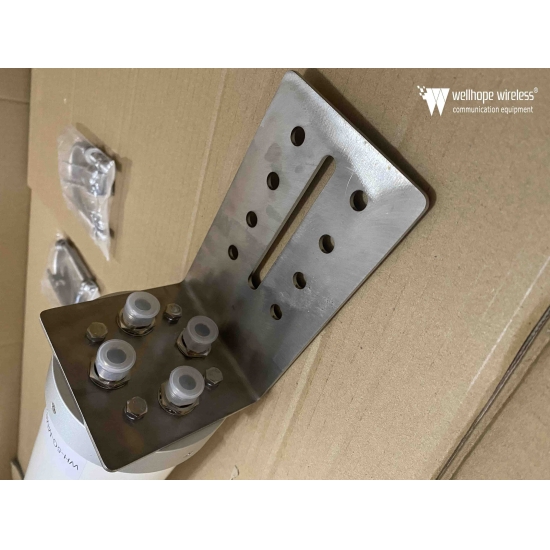

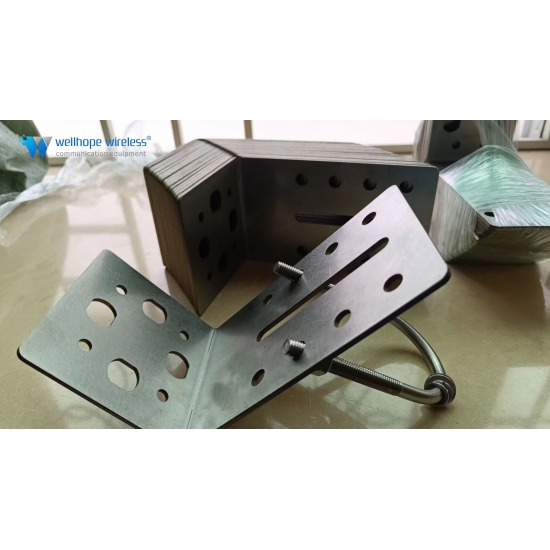

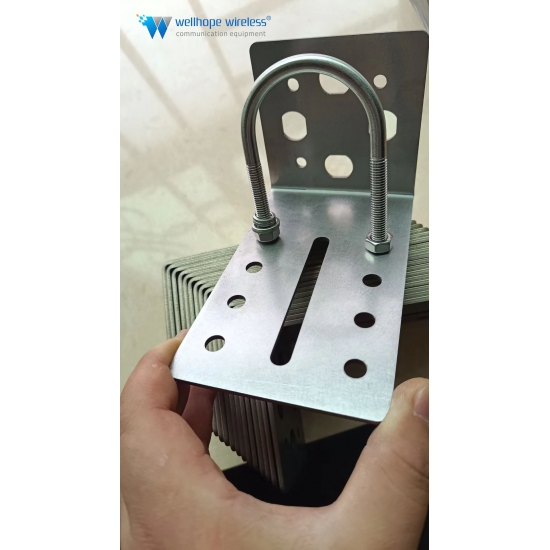

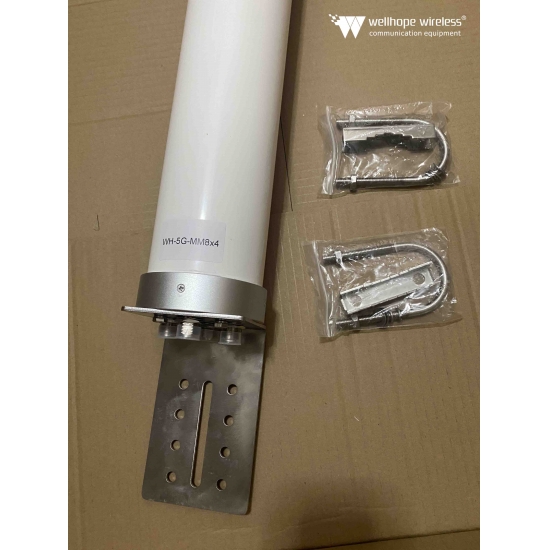

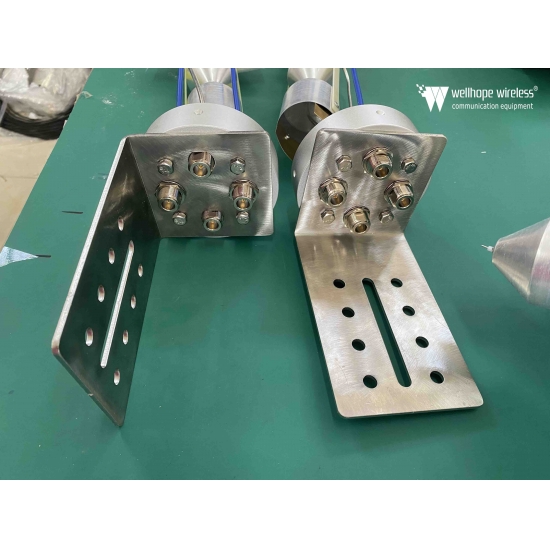

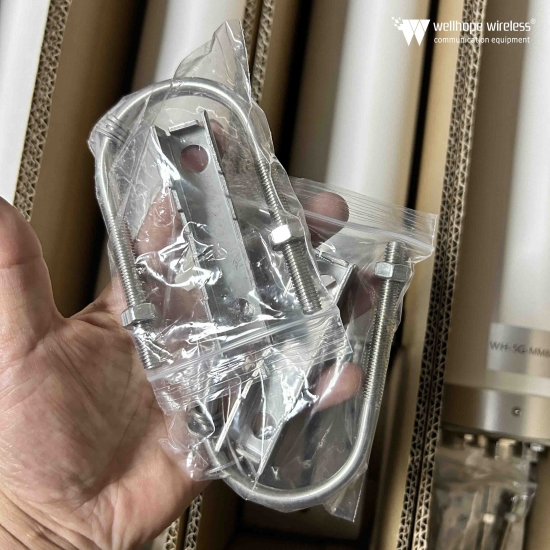

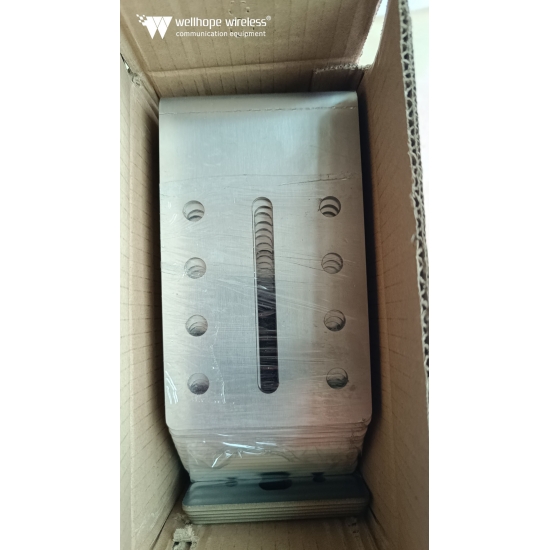

Material of bracket:stainles steel 304 for all "L" bracket and U bolt kits

Weight:1.5KG

Operating Temperature:-40℃ to+70℃

Rated wind velocity(m/s):60m/s

RoHS Compliant:YES
