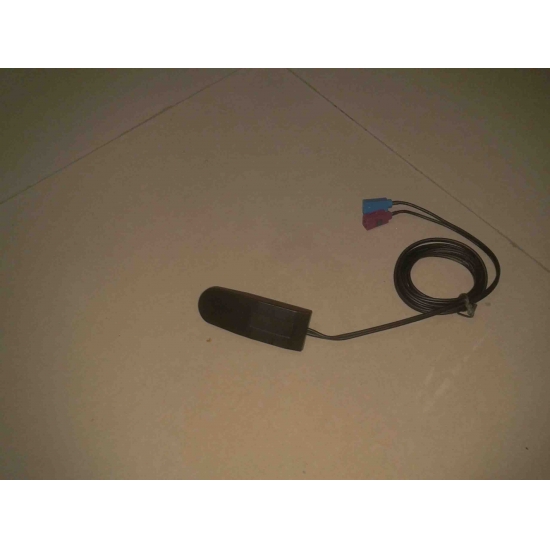

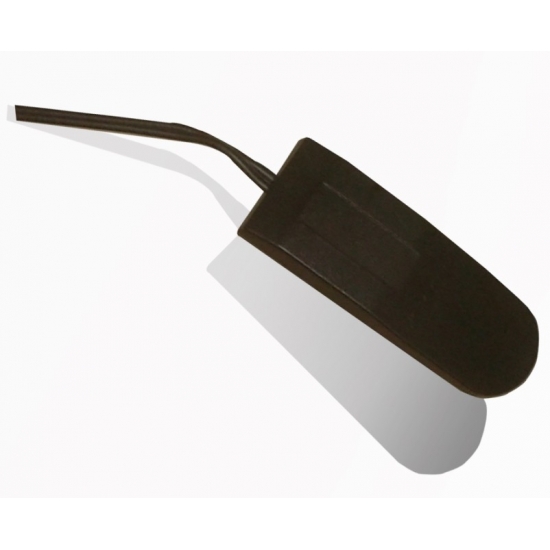

M2M Telemeter GSM Telemeter GPS GSM WLAN antenna

GPS GSM WLAN combine antenna apply to GPS tracker activation ;wireless vehicle tracking Wireless Bridge GPS tracker activation ;wireless vehicle tracking

brand:
whwireless
item no.:
WH-GPUWS

Inquiry now

GPS
Frequency range:1575.42MHz
bandwidth:±3 MHz
VSWR:≤1.5
LNA Gain:28dBi
Polarization:RHCP
GSM,UMTS
Frequency range:824MHz~894MHz(AMPS)
880 MHz~960MHz(GSM)
1710MHz~1990MHz;2100MHz(UMTS)
VSWR:≤1.5
Gain:3dBi
Polarization:vertical
Input impedance:50Ω
WIFI
Frequency range:2400-2483MHz
bandwidth:83 MHz
VSWR:≤1.5
Gain:3dBi
Polarization:vertical

Connector:SMA male
cable:RG174;3meter
dimension:97X34X15mm
Weight:105(g)

• GSM alarm modules
• GSM receiver
• GSM in building cover
• Multi-SIM GSM Gatewayr
• Remote Control System
• Mesh networking applications
• 2.4 GHz wireless applications
• Point to multi-point systems
• Base station antennas
• WiFi access points
• WiMax base stations
