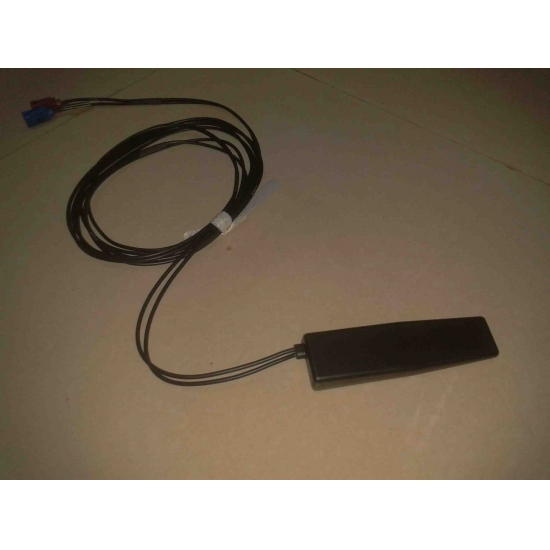

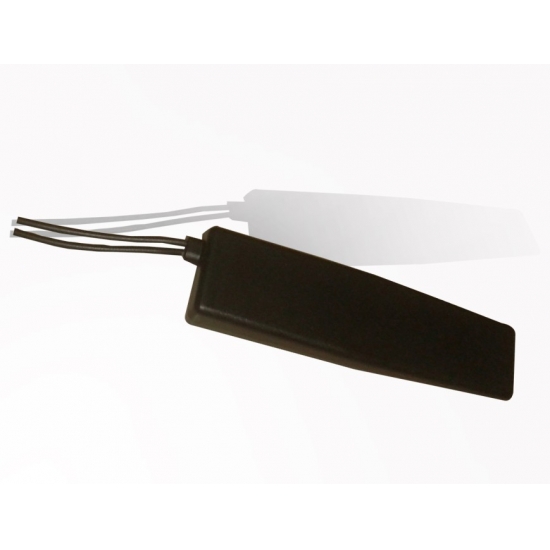

GPS antenna;GSM antenna;WLAN antenna

SMA male
120X34X15mm apply to Wireless embedded board; Wireless Yacht Control Systems
GSM receiver;in building cover
GPS repeater GPS Modules & chip sets

brand:
whwireless
item no.:
WH-GPUW

Inquiry now

GPS
Frequency range:1575.42MHz
bandwidth:±3 MHz
VSWR:≤1.5
LNA Gain:28dBi
Polarization:RHCP
GSM;UMTS
Frequency range:824MHz~894MHz(AMPS)
880 MHz~960MHz(GSM)
1710MHz~1990MHz;2100MHz(UMTS)
VSWR:≤1.5
Gain:3dBi
Polarization:vertical
Input impedance:50Ω

WIFI

Frequency range:2400-2483MHz

bandwidth:83 MHz
VSWR:≤1.5
Gain:3dBi
Polarization:vertical

Connector:SMA male
Cable:RG174; 3meter
Length:120X34X15mm
Weight:110(g)

• Smart Meter Communication data acquisition
• 900MHz spread spectrum
• M2M Telemeter GSM Telemeter
• Remote Control System
• IEEE 802.11b/g WLAN Systems
• 2.4/5GHz WLAN,WiFi system
• Point to multi-point communication system
• Wireless Bridge
• wireless meter transceiver Field Wireless Media Converter
• industrial wireless relay device
