GPS Receiver for Positioning,Tracking and Navigationgps gsm dual band antenna

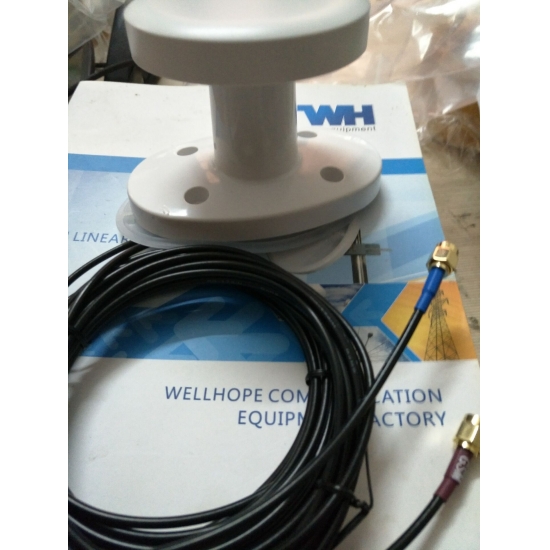

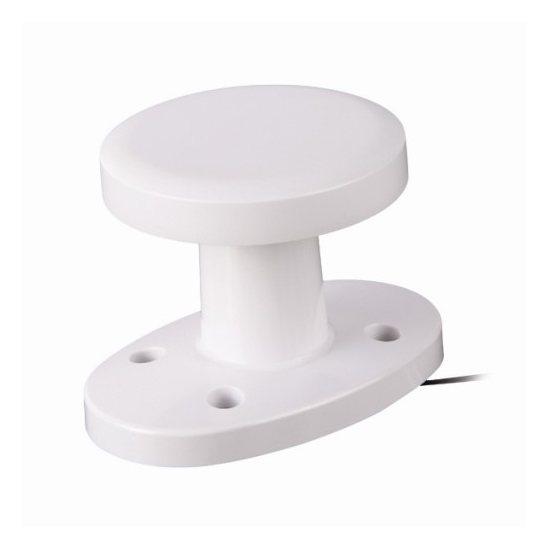

GPS/GSM dual band antenna
  • brand:

    whwireless
  • item no.:

    WH-GPS GSM-SW
Inquiry now
GPS Antenna:
DielectricAntenna:Center Frequency:1575.42±1MHz
Band Width:CF±5MHz
Polarization:RHCP
Gain:5dBic(Zenith)
V.S.W.R:<1.5
Impendance:50Ω
Axial Ratio:3dB(max)
LNA:Gain:28±2dB
Noise Figure:<1.5
Ex-band Attenuation:12dB@CF+50MHz/16dB@CF-50MHz
V.S.W.R:<2.0
Supply Voltage:2.2~5V DC
Current Consumption:5~15mA
GSM Antenna:
Frequency Range:824~960MHz/1710~2170MHz
V.S.W.R(min):<2.5
Polarization:Linear
Gain:2dBi
Impendance:50Ω

Mechanical:
Cable:RG174

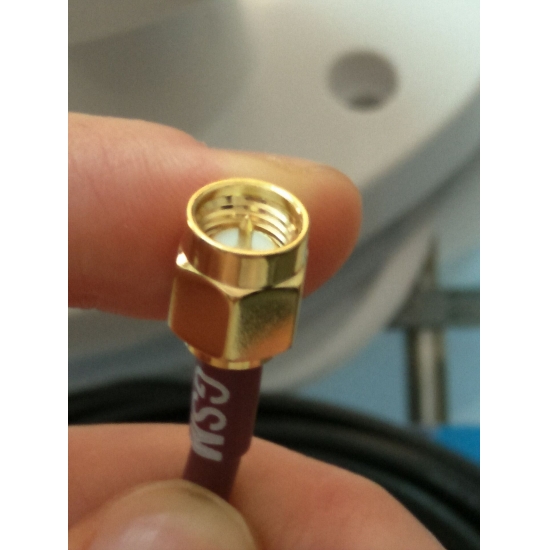

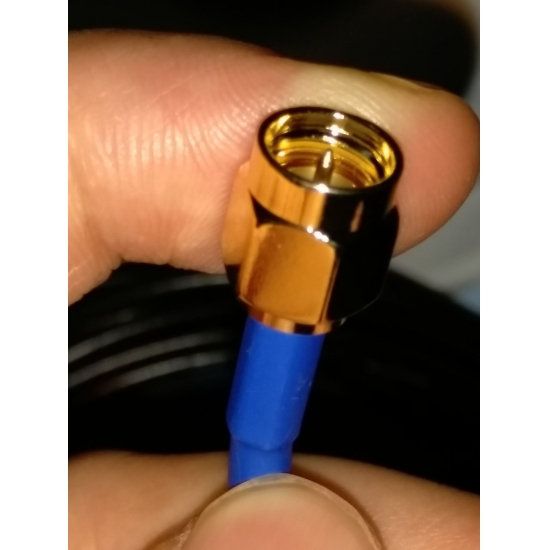

Connector:SMA/MCX/FAKRA or others
Radome Material:ABS

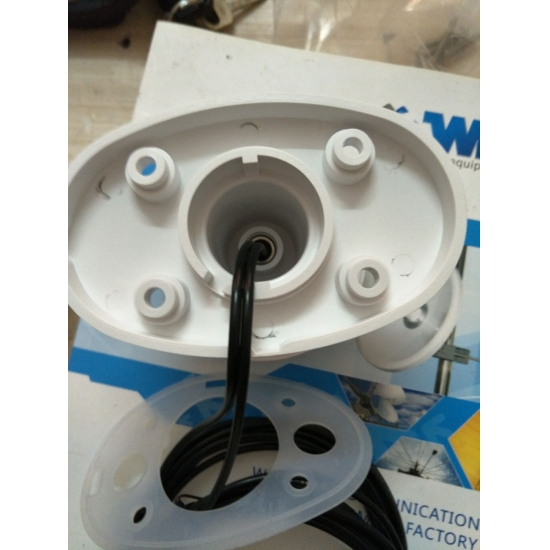

Mounting Method:Screw
Environmental:
Operating Temperature :-40℃~+85℃
Relative Humidity:Up to 95%
Ingress Protection:IP67 (exclude cable outlet)
Vibration:10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly:ROHS Compliant
