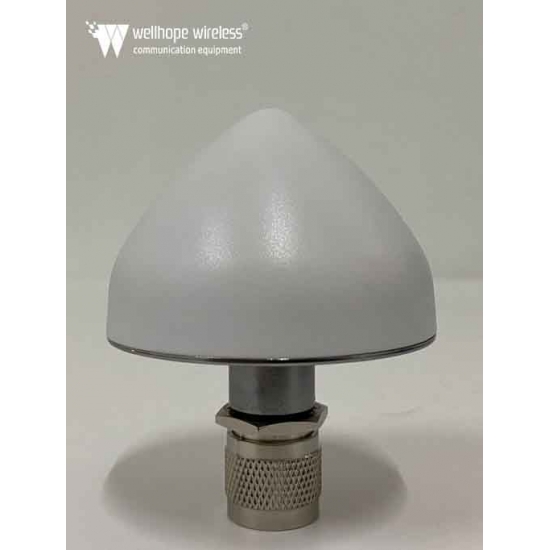

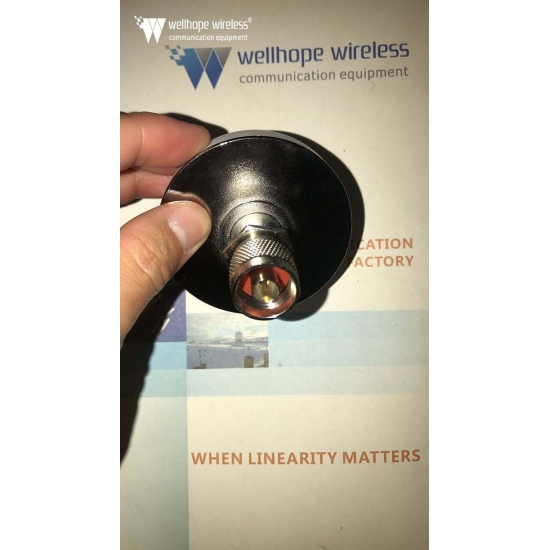

GNSS IP67 antenna with N male directly


marine tracker GPS Glonass antenna WH-GPS&GLON-40
GNSS IP67 antenna with N male directly GNSS IP67 antenna with N male directly GNSS IP67 antenna with N male directly GNSS IP67 antenna with N male directly GNSS IP67 antenna with N male directly GNSS IP67 antenna with N male directly GNSS IP67 antenna with N male directly

GNSS IP67 antenna with N male directly

Waterproof IP67Anticorrosionoutdoor antenna GPS Glonass antenna

GPS Glonass antenna N male directly;GNSS Multi-Band L1 Surveying Antenna


IP67 waterproof N male directly ;Increased system accuracy ;Excellent signal / noise ratio

;Out of band signal blocking;Compatible to work in harsh environments

IP67, RoHS and REACH compliant

GPS Glonass antennaGPS Glonass antenna

Scope of application

Timing;Navigation;UAV;Autonomous vehicles;Satellite Communication;Maritime

Agricultural Mapping ;Railways;Discovery;Personnel Tracking;Drone;Telecom



  • brand:

    whwireless

  • item no.:

    WH-GPS&GLON-40

  • payment:

    T/T

  • product origin:

    china

  • color:

    white

  • lead time：

    4 working day
Inquiry now


Center Frequency（MHz） :1575.42 MHz ±3 MHz

Band Width（MHz） :±3 MHz

V.S.W.R（in BW） :1.5︰1

Gain（Zenith） :3 dB ±0.5 dB

Polarization :RHCP

Impedance :50 Ω

LNA Gain :40±2 dB

Noise Figure :1.5 dB

Filter Out Band Attenuation :12dB  Min  f0+50MHz

                                       16dB  Min  f0-50MHz

DC Voltage :3.3~12V

DC Current :≤50mA





Center Frequency（MHz）:1590 MHz±3 MHz

Band Width（MHz）:±3 MHz±1 MHz

V.S.W.R（in BW）:1.5︰1

Gain（Zenith）:3 dB±0.5 dB

Polarization:RHCP

Impedance:50 Ω

LNA Gain:40±2 dB

Noise Figure:1.5 dB

DC Voltage:3.3~12V

DC Current:≤50mA

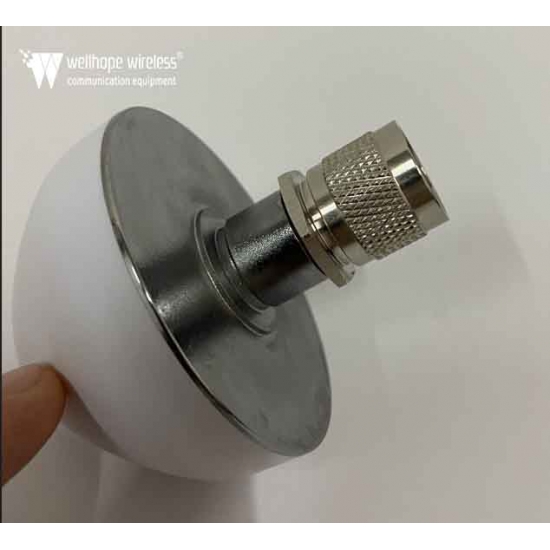

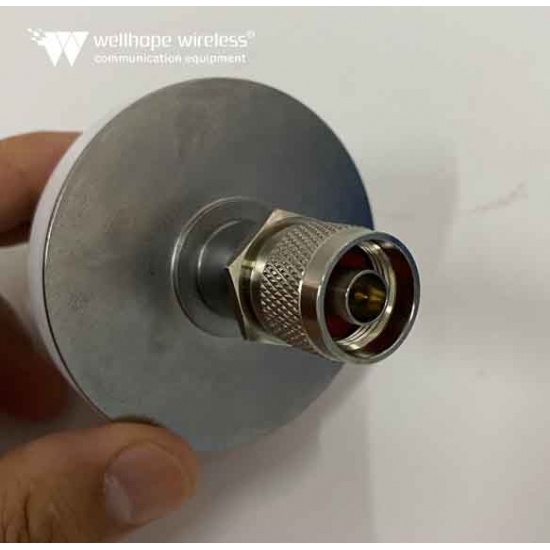

Connector :N male

Plastic Housing :White

Mounting :Screw

Connector :N male

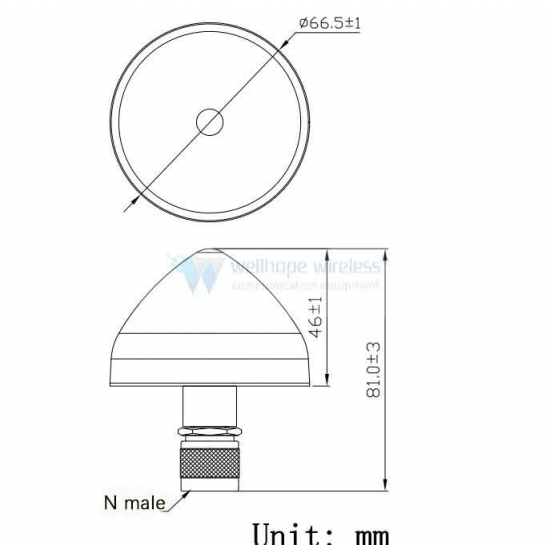

dimension:Φ81×66.5mm

Water proof:IP67

Weight:50g
