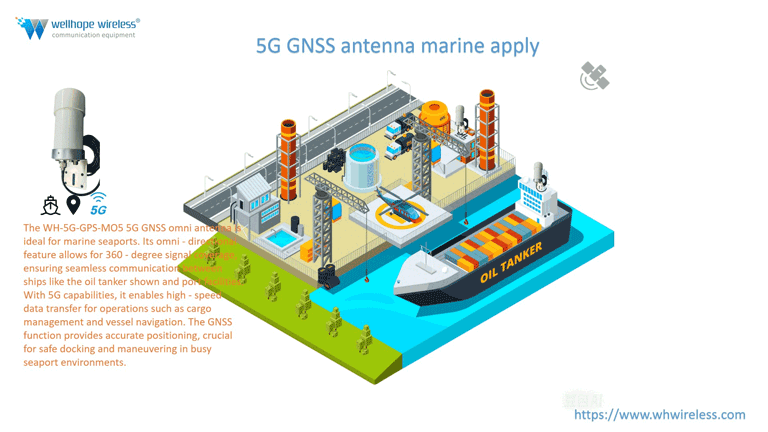

The WH-5G-GPS-MO5 omni antenna from WHWireless is engineered for multi-band 5G, LTE, WiFi, and dual-band GNSS/GPS (L1 & L5). It supports the full 5G spectrum (698–960 MHz, 1710–2700 MHz, 3300–3800 MHz, 4900–6000 MHz), enabling stable, high-throughput connectivity even in challenging marine and industrial environments.
With its 360° omnidirectional radiation pattern and 5dBi gain, this antenna ensures seamless coverage and minimal signal blind spots—ideal for ships, ports, logistics hubs, and field IoT nodes. Its IP67 waterproof housing and rugged construction safeguard performance under harsh outdoor or maritime conditions.
The integrated GNSS module (L1 + L5) delivers accurate real-time positioning, making it suitable for navigation, asset tracking, fleet management, and automation systems. The compact screw-mount design, low-loss cabling, and SMA connectors simplify installation on vessels, towers, and stationary infrastructure.
By combining high-speed data transfer and precise geolocation, the WH-5G-GPS-MO5 becomes an indispensable component for smart logistics, autonomous systems, marine operations, and connected industrial networks.
brand:
whwirelessitem no.:
WH-5G-GPS-MO5payment:
T/Tproduct origin:
chinacolor:
whitelead time：
5working day5G part
FreqRange:600/698/1710/2700/3500/6000MHz
Horizontal Beamwidth(0º):360º
Vertical Beamwidth(0º):30º±5º
Gain:5dBi
Impedance:50Ω
Polarization:vertical
GNSS part
Center frequence:1559~1608MHz
LNA Gain:28±2 dB
Noise Figure:1.5 dB
Polarization:RHCP
Filter Out Band Attenuation:12dB Min f0+50MHz
16dB Min f0-50MHz
DC Voltage:2.2~5 V / 3~5 V
DC Current:5~15 mA / 6~12 mA
|
Plastic Housing:White waterproof:IP67 Mounting:Screw Weight :0.45KG dimension:ɸ100X200mm Operational Humidity:< 95％
Rated Wind Velocity:36.9m/s Radome material:PVC Operating temperature:-40～55º
Cable:RG58 Connector:N female or others |
