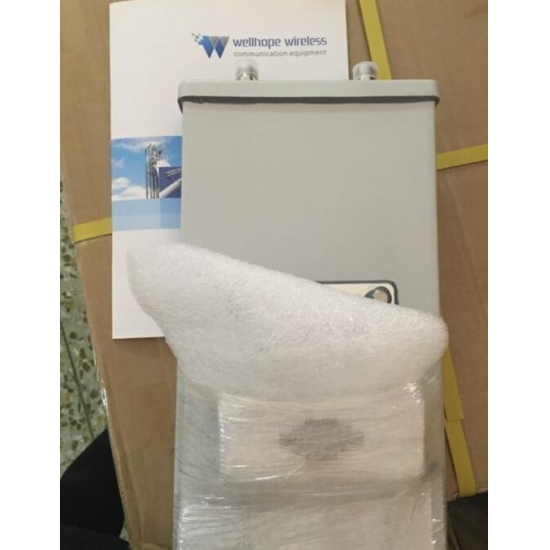

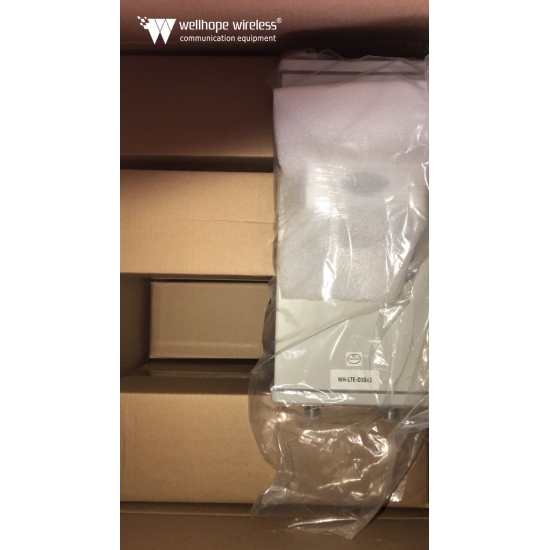

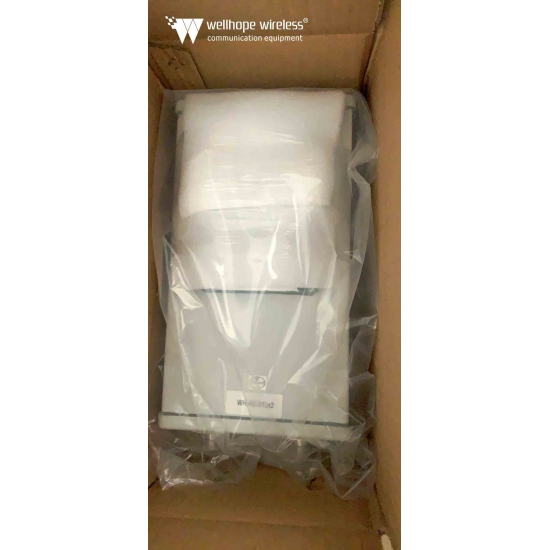

4G panel mimo antenna 12dbiX2

ourtdoor MIMO antenna waterproof IP65

This high gain multiband 12dBiX2 4G LTE MIMO panel antenna is designed for 800MHz (2G / 4G), 900Mhz (4G), 1800MHz (3G / 4G), 2100MHz (4G) and 2600MHz (4G) frequency band and supports all established standards like GSM, 2G, 3G and 4G (800 / 900 / 1800 / 2100 / 2600).

The antenna WH-4G-D12X2 has a gain of up to 12dBi and helps you to improve your 2G, 3G or 4G connection even on long distances.

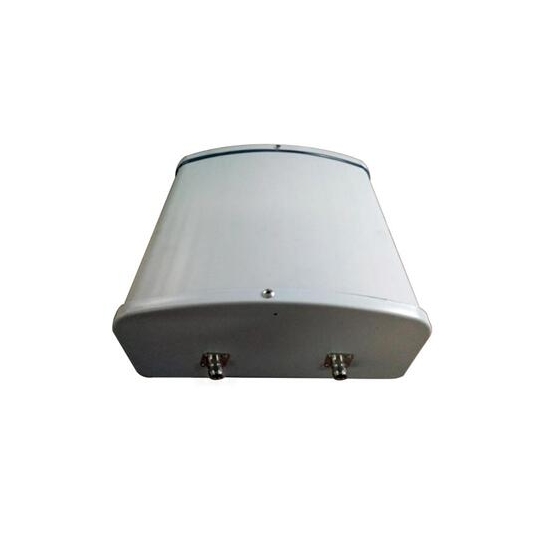

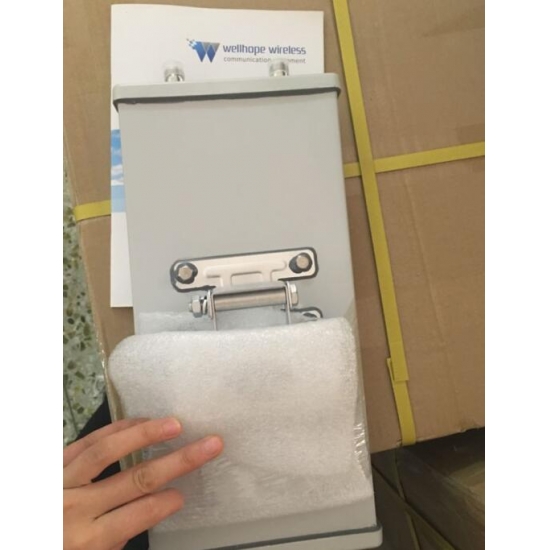

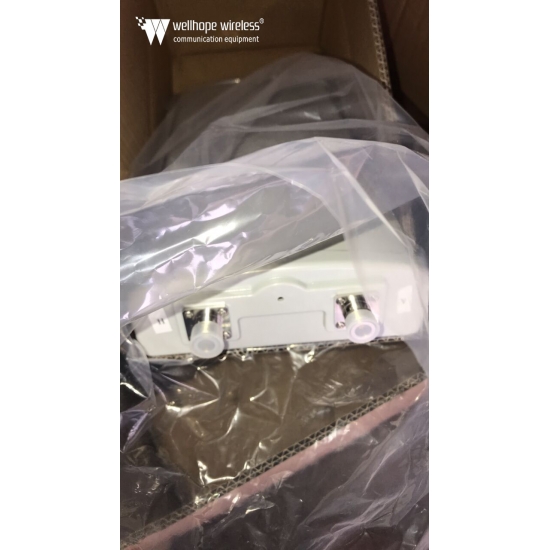

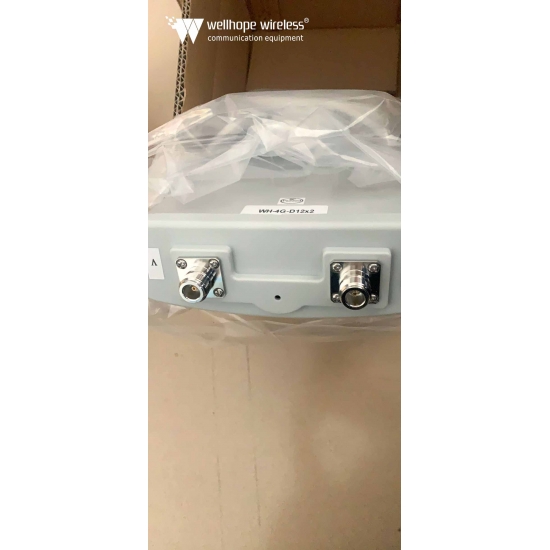

connector :N-femaleX2 Comes complete with 5 meters of low loss cable terminated with an SMA male connector and mounting bracket.

brand:
whwireless
item no.:
WH-4G-D12X2
payment:
T/T,Alipay,WeChat Pay,Paypal
product origin:
china
color:
gray
lead time：
4 working day

Inquiry now WhatsApp

Frequency range:698-960/1710-2700MHz
Gain:8/12
Horizontal Beamwidth-º:65
Vertical Bcamwidth-°:35
F/B Ratio-dB:≥25dB
Electrical Downtilt -°:0
VSWR:≤1.5
Maximum Power-W:100
Nominal Impedance-Ω:50

Dimcnsions-mm:300X170X50
Weight-kg:1.5
Ratcd Wind Velocity-m/s:60

Connector:N-female or Customization

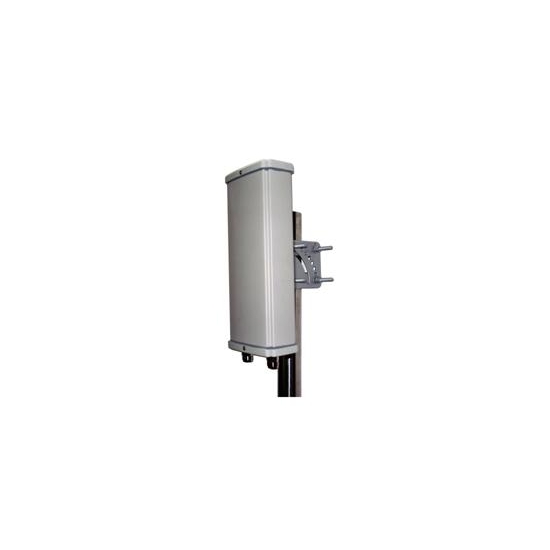

Mounting Pole diameter-mm:φ50～75

Waterproof IP65

MOQ:2PCS

Ddelivery time:5working day

Payment term:T/T
