2.4GHz and 5.8GHz sector panel antenna mimo work in low temperature environment

  • brand:

    whwireless
  • item no.:

    WH-2.4&5.8GHz-D16X2
  • payment:

    T/T,Alipay,WeChat Pay,Paypal
  • product origin:

    china
  • color:

    gray
  • lead time:

    6working day

Frequency range:2400-2483MHz/5725-5850MHz

bandwidth:83/125-MHz

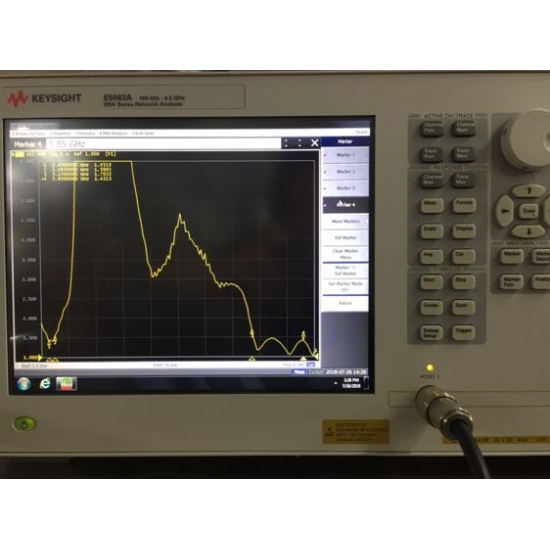

VSWR:≤1.5

Horizontal Beam width:65°

Vertical Beam Width:29°

Gain:14dBiX2

F/B Ratio:>23dB

Max Power:100W

Polarization:±45 °

Input impedance:50Ω

Connector:N female x2

Antenna radome:PVC

Operation temperature:-52-55 ℃

Length:700X165X120mm

Rated wind velocity :241Km/H

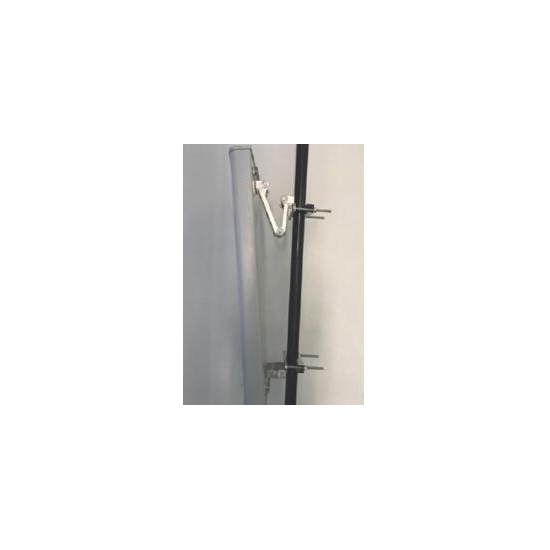

Mounting Mast Diameter:Ø30~Ø50mm

Weight(kg):3

Waterproof IP65

MOQ:2PCS

SPQ:100PCS/box

Ddelivery time:5working day

Payment term:T/T

Package:plastic bag and box

Paymeter method:Paypal;Wire Transfer

Customized according client require detail

Shiping way:DHL Fedex UPS OR Air FBA
