2200-2500MHz/4400-5000MHz cross polari panel antenna

wlan panel antenna outdoor wlan panel antenna low temperature environment antenna

Introducing our high-performance 2.4GHz and 5GHz dual-band panel antenna, specifically designed for base station applications. This advanced antenna features a powerful 19dBiX2 gain, ensuring superior signal strength and extended coverage for your network. Utilizing X2 technology, it enhances connectivity and data throughput, making it ideal for high-demand environments.

The antenna's cross-polarization capability significantly reduces interference and improves signal reception, providing reliable and high-quality communication. Its robust and weather-resistant design is perfect for outdoor installations, ensuring durability and consistent performance in various weather conditions.

Ideal for enhancing base station operations, this dual-band panel antenna supports seamless integration with your existing network infrastructure. Whether for commercial, industrial, or large-scale residential deployments, our 2.4GHz and 5GHz dual-band panel antenna delivers exceptional performance, boosting your network's efficiency and reliability. Elevate your base station's capabilities with this state-of-the-art, high-gain, cross-polarized antenna.


  • brand:

    whwireless
  • item no.:

    WH-2245-DP19X2
  • payment:

    T/T
  • color:

    gray
  • lead time:

    8working day
Inquiry now


Frequency range:2200-2500MHz/4400-5000MHz

Gain:19dBi /19 dBi

VSWR:≤2.0

polarization:Vertical and Horizontal

Radiation:directional

Lightning Protection: DC Gronded

Horizontal beam width:20°/15°

Vertical beam width:15°/10°

Input impedance:50Ω

F/B:>25dB />26dB

Max Power:100W


mounting method:          Wall Mounted

Antenna radome:PVC

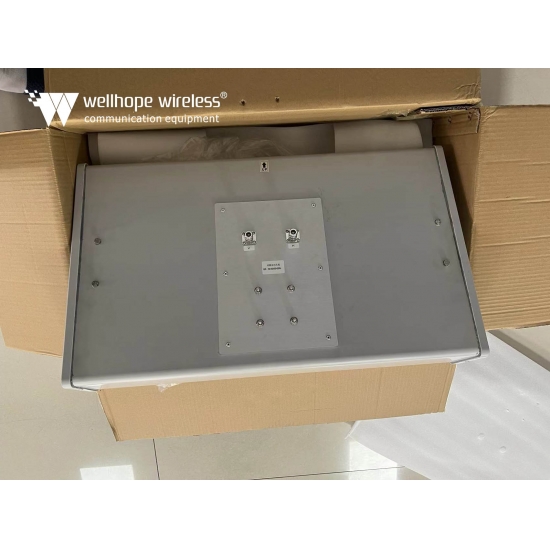

Antenna Connector:N femaleX2

weight:1.5Kg

Size:700x410x135 (MM)

Rated wind velocity:60m/s

Colour :gray

Diameter of installation pole:Ø30-Ø50mm

Working Temperature:-40℃--+70℃-


Waterproof IP66

MOQ:2PCS

SPQ:100PCS/box

Ddelivery time:5working day

Payment term:T/T

Package:plastic bag and box

Paymeter method:Paypal;Wire Transfer

Customized according client require detail

Shiping way:DHL Fedex UPS OR Air FBA
