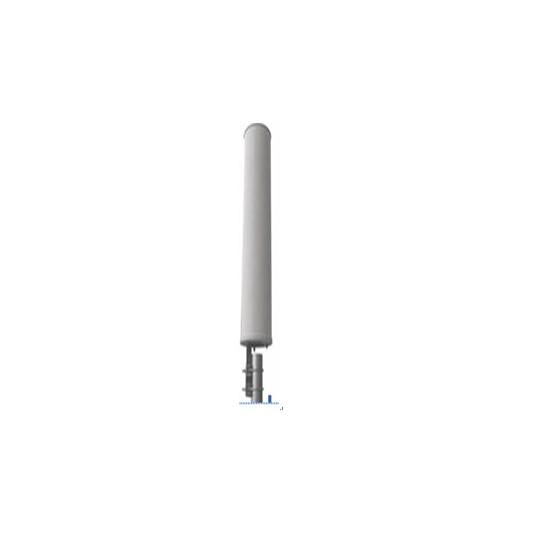

outdoor 802.11b/g 2.4GHz and 5.8GHz dual band omni antenna

2.4 and 5.8GHz dual band omni antenna 8dBix4 N female X4
  • brand:

    whwireless
  • item no.:

    WH-2458G-MO8
  • payment:

    T/T
  • product origin:

    china
  • color:

    white
  • lead time:

    6 working day

Frequency Range (MHz):2400-2500/5150-5850
Gain (dBi):8X4
Input impedance (Ω):50
Horizontal half power angle:360°
Vertical half power angle:182°
Polarization mode:Vertical
Port isolation(dB):≥25
VSWR:≤ 1.5
Max Input Power (W):50

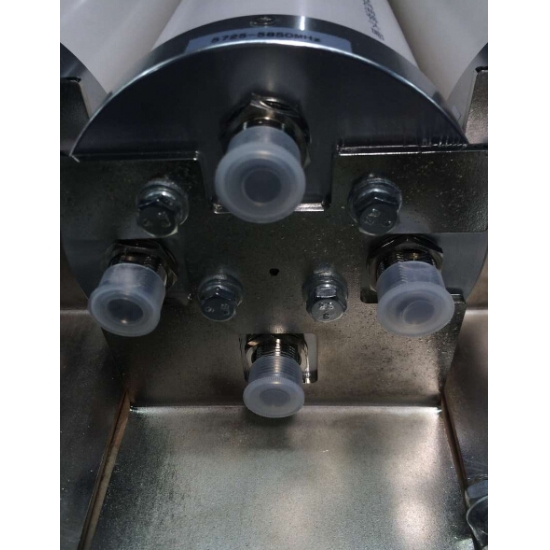

Connect Type:N female X4
Lightning Protection:DC Ground

Working Temperature:-40℃~﹢65℃
Antenna weight(kg):3
Size(mm):Φ110x1000
Antenna holding pole(mm):Φ40~80
Rated Wind Velocity :210 km/h
Antenna cover material:PVC
Color:White
