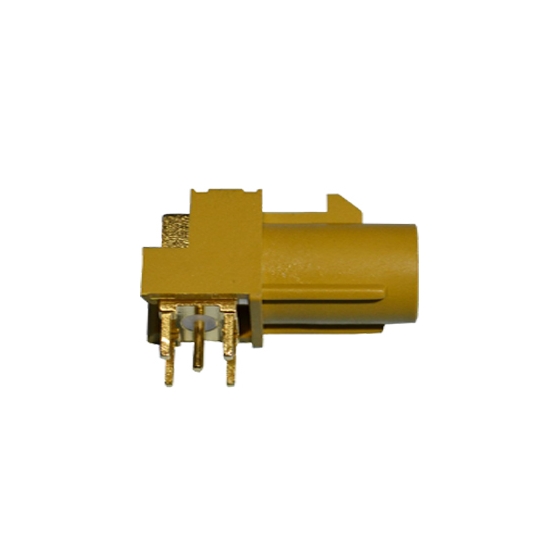

WH-Fakra-PCBA

Fakra
  • brand:

    whwireless
  • item no.:

    WH-Fakra-PCBA
Inquiry now
Impedance:50 Ω
Frequency Range:DC - 4 GHz
VSWR: :DC - 2 GHz:2 GHz - 4 GHz
Spec requirement:1.40 max:1.50 max
Straight SMB (cable group 1):1.15 max:1.25 max
Right angle SMB (cable group 1):1.20 max:1.35 max
Straight SMB (cable group 4):1.10 max:1.15 max

Insertion Loss:Spec requirement: < .3 dB max from DC - 3GHz
Up to 1 GHz: < .1 dB
Up to 2 GHz: < .2 dB
Up to 4 GHz: < .3 dB
Insulation Resistance:1000 MΩ minimum
Center Contact Resistance:Center contact: < 20 mΩ
Outer contact: < 10 mΩ
Dielectric Withstanding Voltage:> 1,000 VRMS at sea level

Mating Durability:100 mating cycles minimum
Plastic Housing Engagement Force:Engagement: = 20 N
Disengagement: = 25 N
Cable Retention Force:Cable group 1: = 110 N
Cable group 4: = 180 N
Coding:12 mechanical and color codings
Material
Plastic Housing:PBT with 15% Glass Fiber
Secondary Locking Clip:PBT with 15% Glass Fiber
Center Contact:Male: Brass
Female: Beryllium copper
Body:Brass
Barrel:Brass
Retainer Ring:Beryllium copper
Ferrule:Copper
Insulator:TFE or TPX
Plating
Center Contact:Gold
Body:cable types Nickel
solder types Nickel, Gold, Tin
Barrel:Nickel
Ferrule:Nickel
