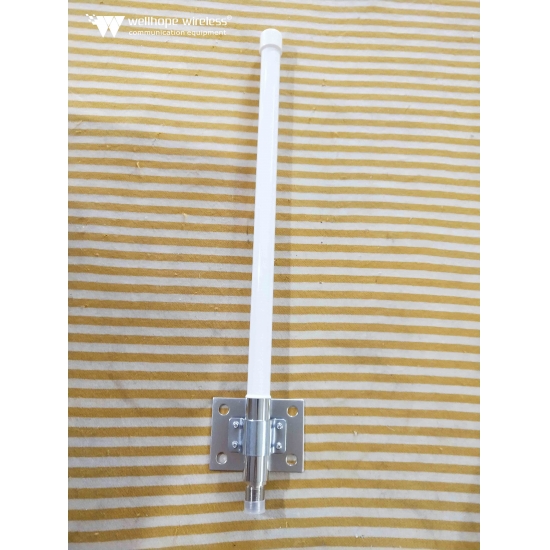

LTE 4G fiberglass 4dbi N female antenna

IP65 waterproof antenna IOT antenna RoHs easy install

whwireless 4G omni fiberglass antenna N female directly;small dimension:Ф20x250 (mm);colour:gray or white

  • brand:

    whwireless
  • item no.:

    WH-4G-0N4
  • payment:

    T/T
  • product origin:

    china
  • color:

    white/Gray
  • lead time:

    5working day
Inquiry now
Frequency:698-960/1710/2170-2700MHz

VSWR:≤1.6

Gain:4dBi

F/B radio:>15dBi
Polarization Type:Vertical
Horizontal Beamwidth:360°
Vertical Beamwidth:698-960MHz: 40-60°

                             1710/2170-2700MHz: 14-32°

Rated Power:100w

Input Impedcion:50Ω

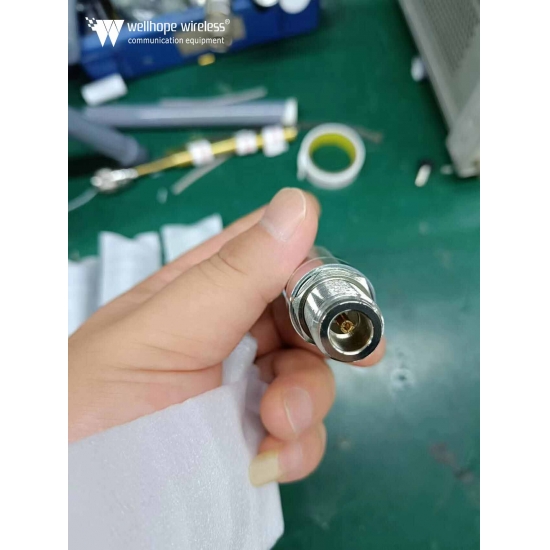

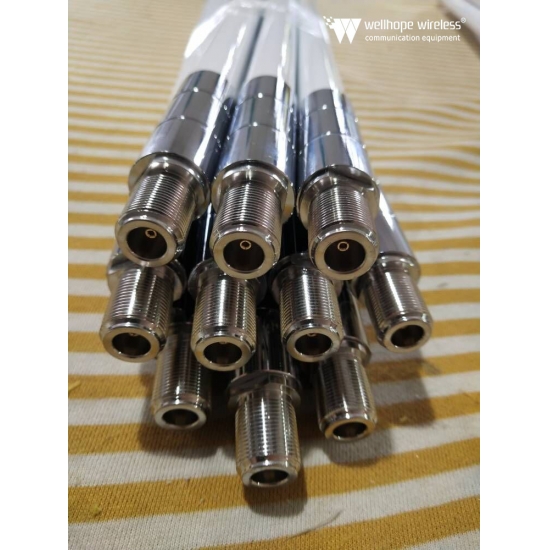

Connector Type:N male/female

Rated wind velocity:60m/s

Antenna material:fiberglass

Water proof level:IP67

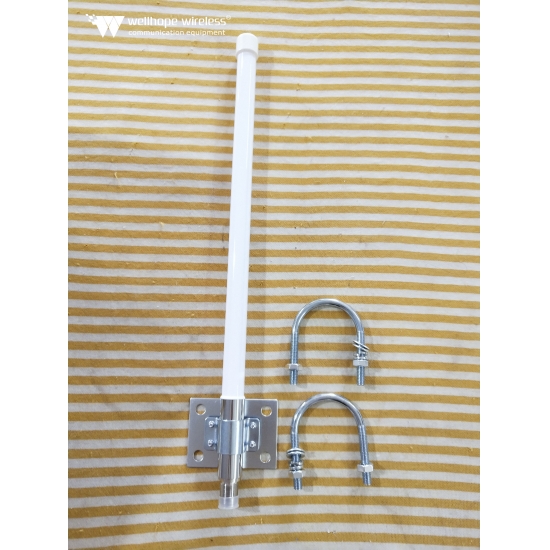

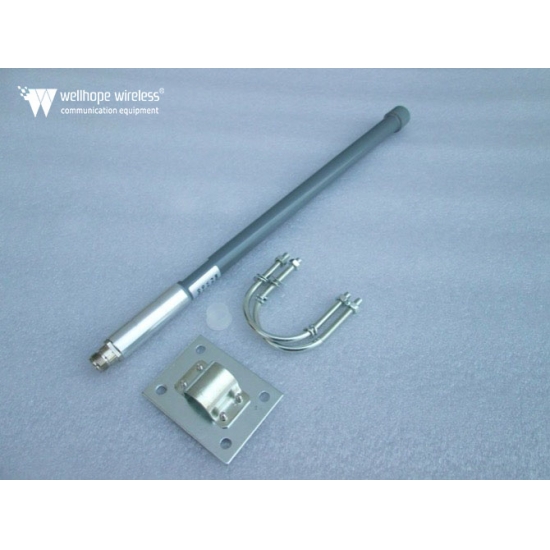

Mounting method:L bracket

Colour:Gray/white

Dimensions:Ф20x250 (mm)

Operation terperature:-40℃ to+60℃

Weight:0.3Kg


Waterproof IP67

MOQ:5PCS

Ddelivery time:5working day

Payment term:T/T

Package:plastic bag and box

Paymeter method:Paypal;Wire Transfer
