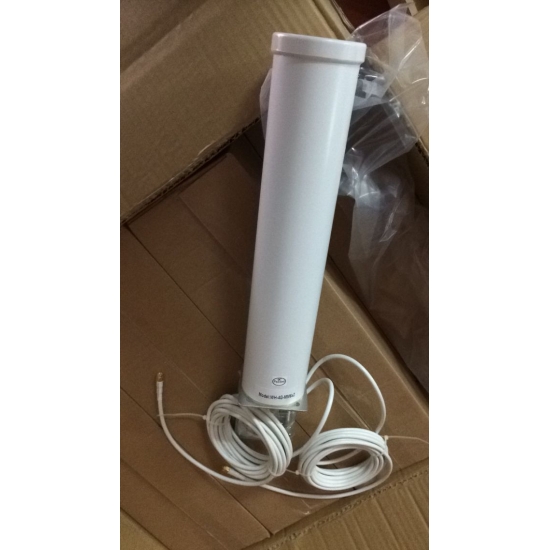

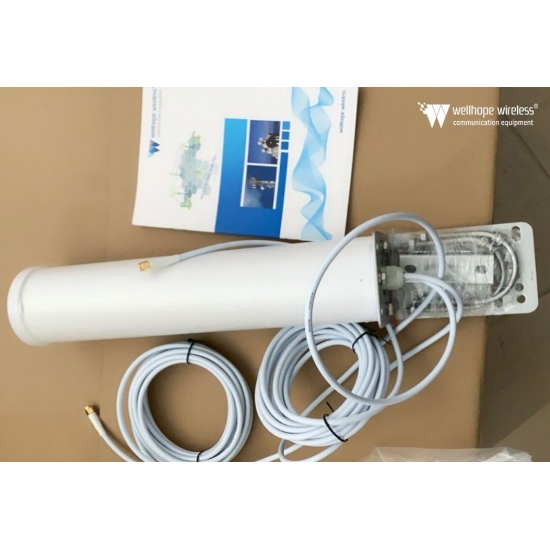

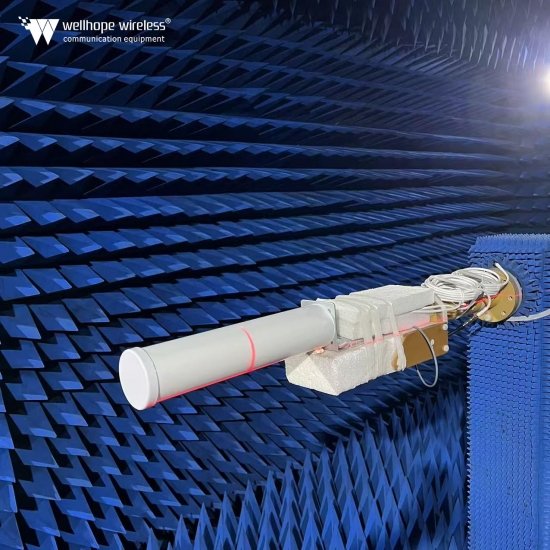

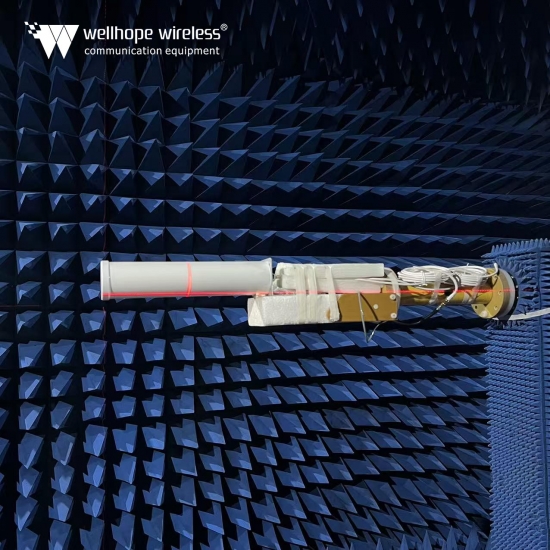

4G mimo high gain omni MiMo antenna

  • item no.:

    WH-4G-MM6x2
  • payment:

    T/T
  • product origin:

    china
  • color:

    white
  • lead time:

    5working day
Inquiry now

Frequency:698-960/1710-2700MHz

VSWR:≤3.0

Gain:4.5/6dBi

F/B radio:8dBi

Polarization Type:Vertical

Vertical beam width:698-960MHz---40-60°

1710-2700MHz--14-32°

Rated Power:100w

Input Impedance:50Ω

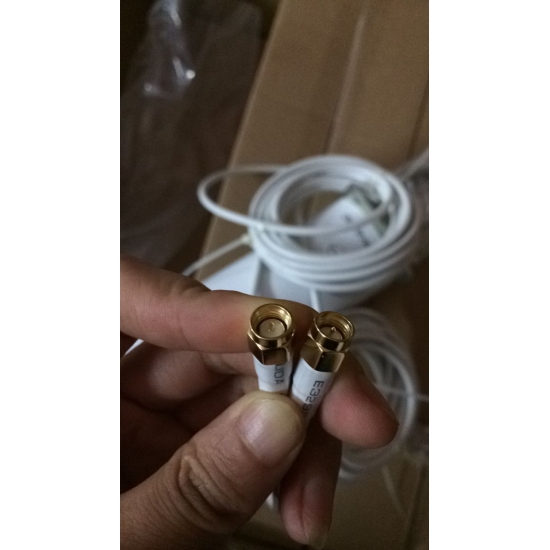

Connector Type:N femaleX2

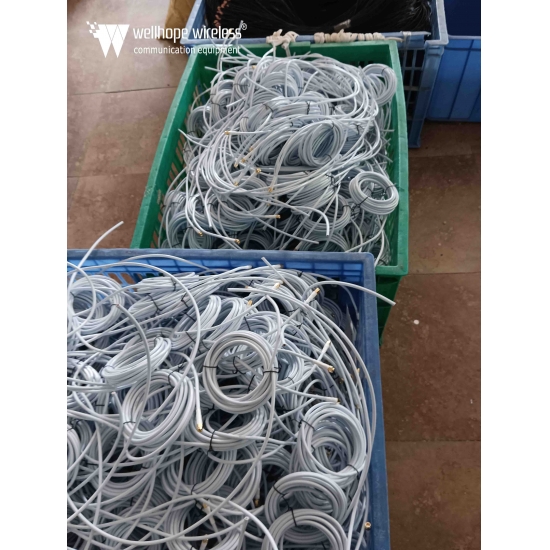

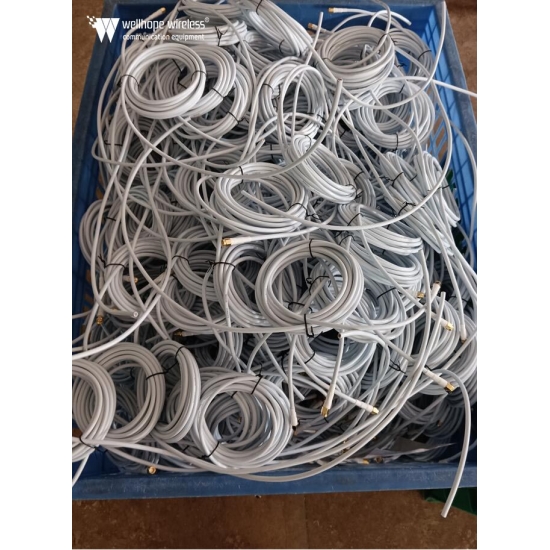

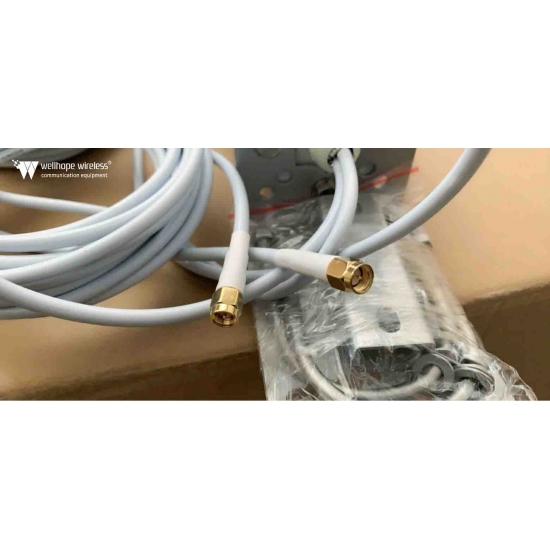

Cable type:SSF50-3;30(cm)

Operation temperature:-40~+70

Water proof level:IP67

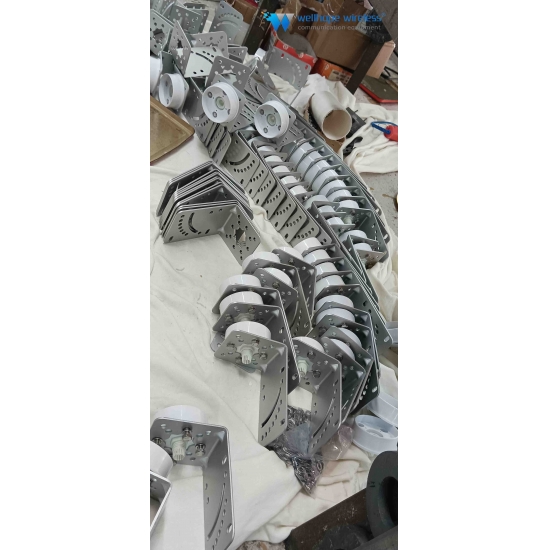

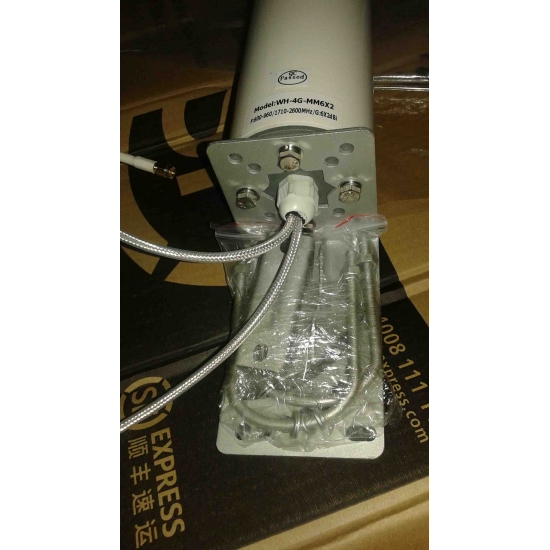

Mounting method:U bolt

Dimensions:Φ70x350mm

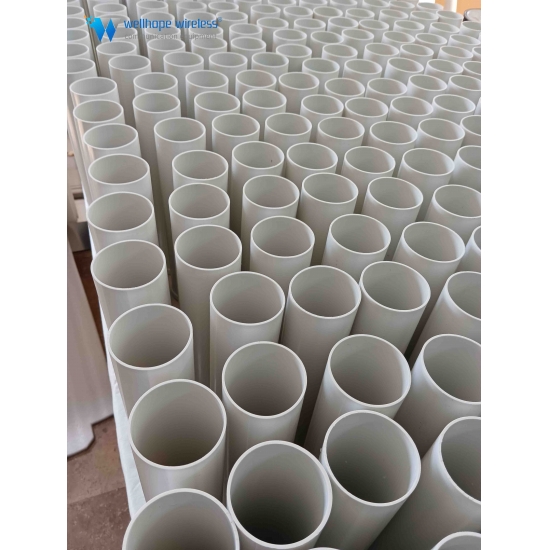

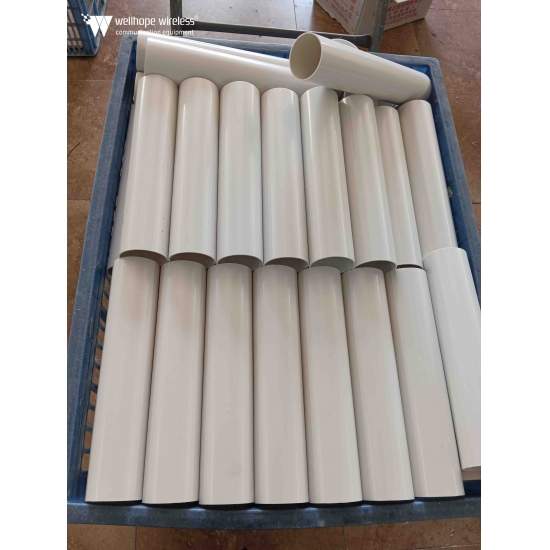

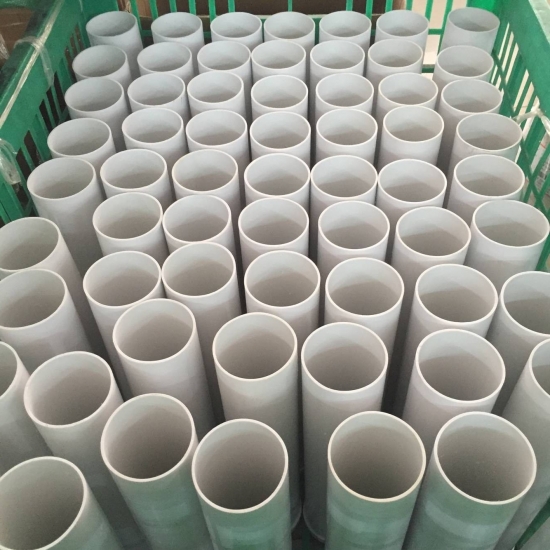

Radome Materal:PVC

Weight:1.5Kg

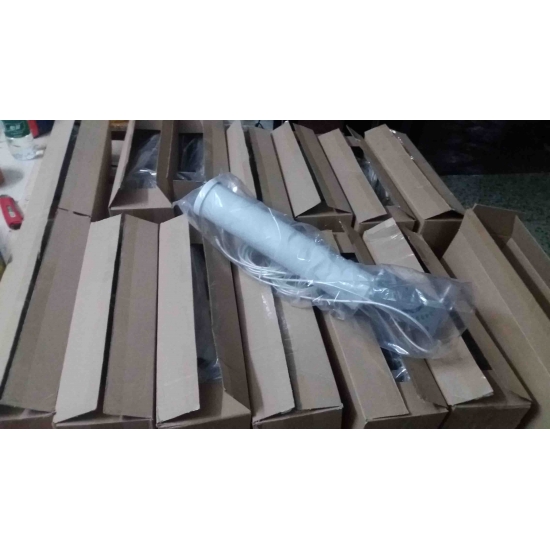

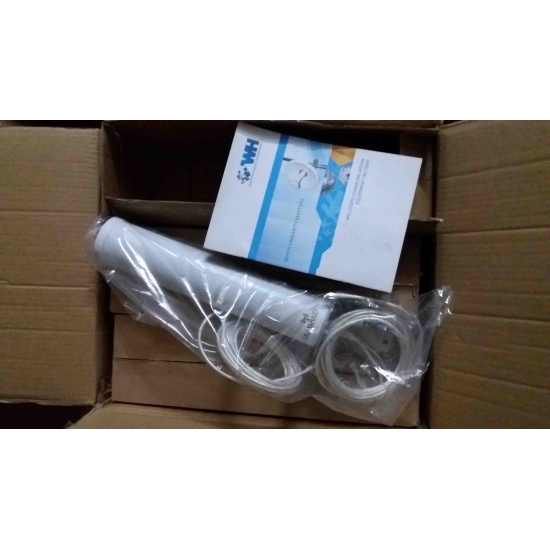

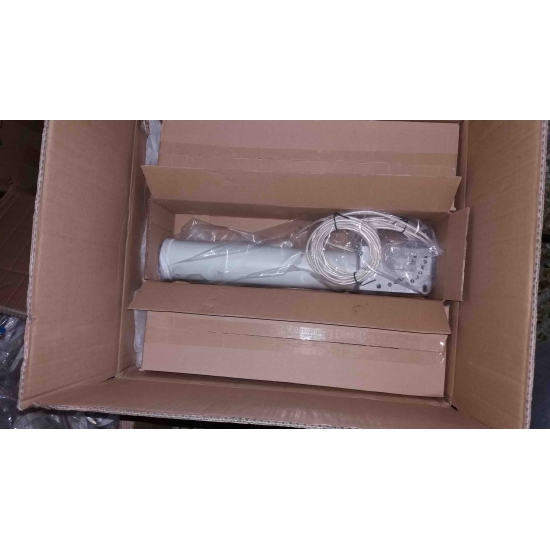

package detail:70x48x28cm(10pcs/15kg/carton)
